Shenzhen Risun Lighting CO., LTD
| Item Name | led strip for light box
| LED Light Source | SMD2835 |
| LED Chip | Epistar | LED Quantity | 12LEDs/m |
| Input Voltage(V) | DC24V | Power | 10W/m |
| CRI | 90 | Cutting unit | 83.33mm |
| IP Rating | IP20 | PCB Color | White/Black |
| Working Temperature(℃) | -25 -45 | OEM&ODM | Available |
| Lifespan (hours) | 50000 | Beam angle | 180° |
| Lamp Body Material | Copper | Warranty(Year) | 3Years |
| Dimension
| 5000mm*12mm | Available Color | 3000K/4000K/6500K
|

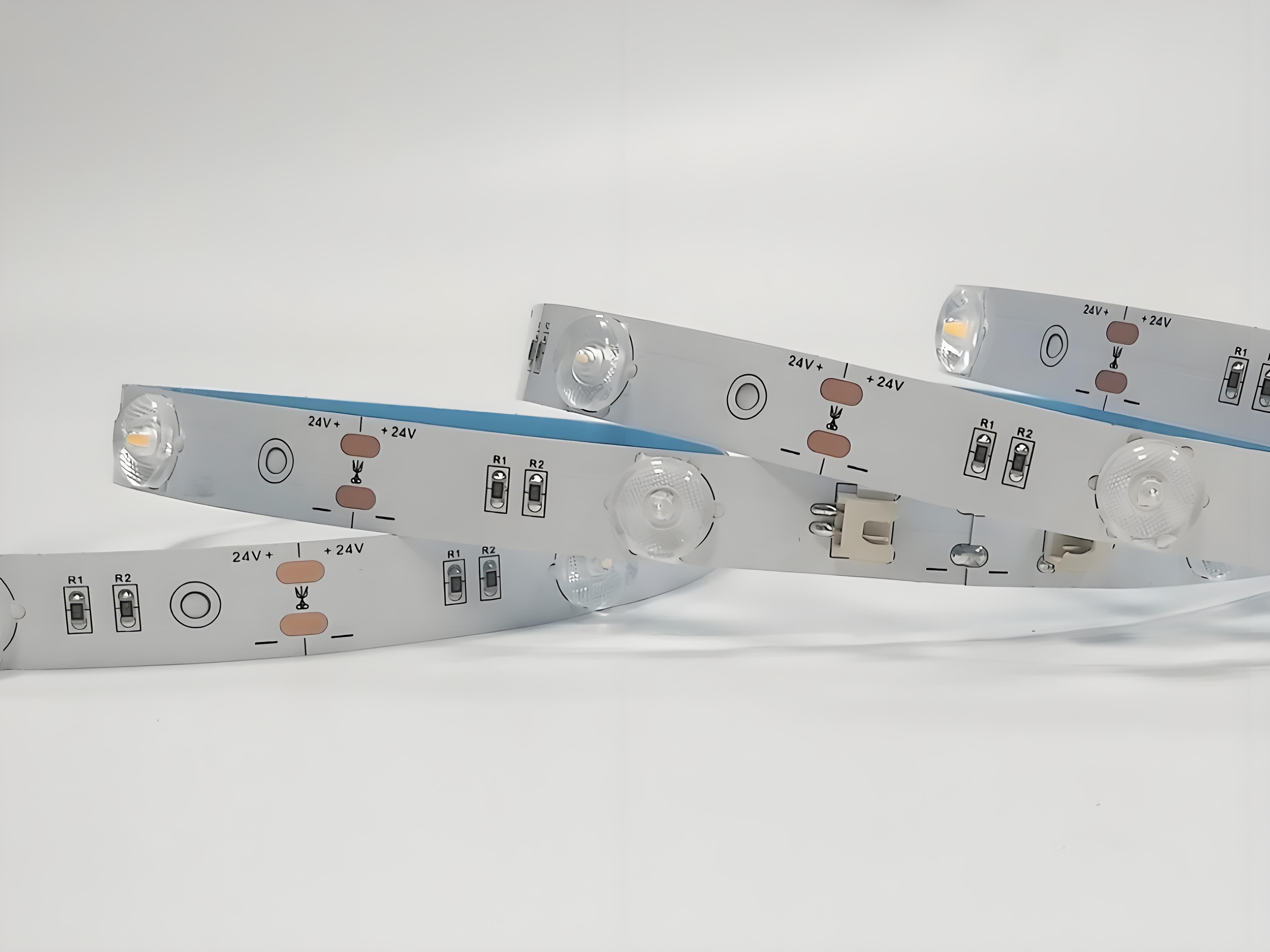

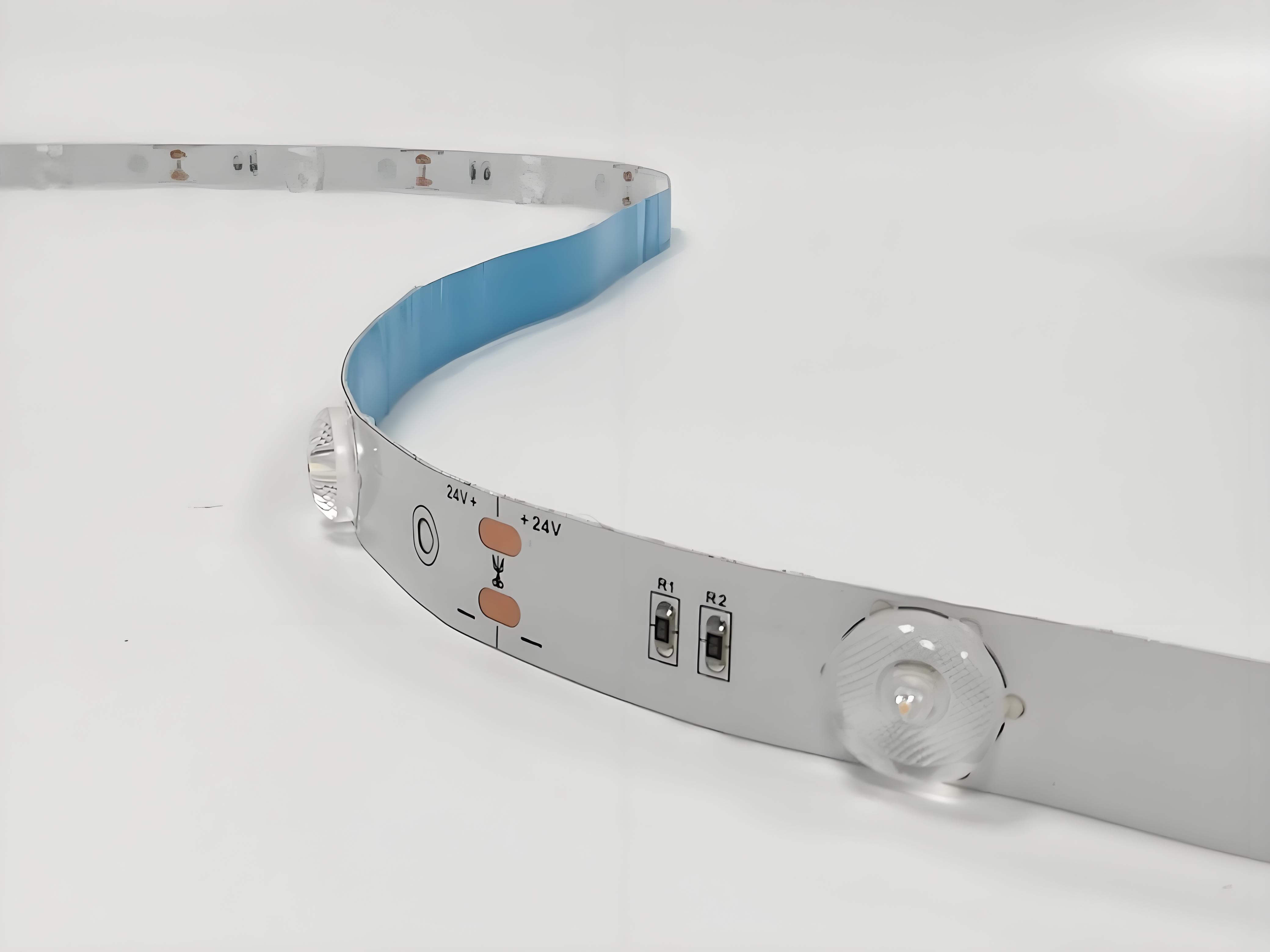

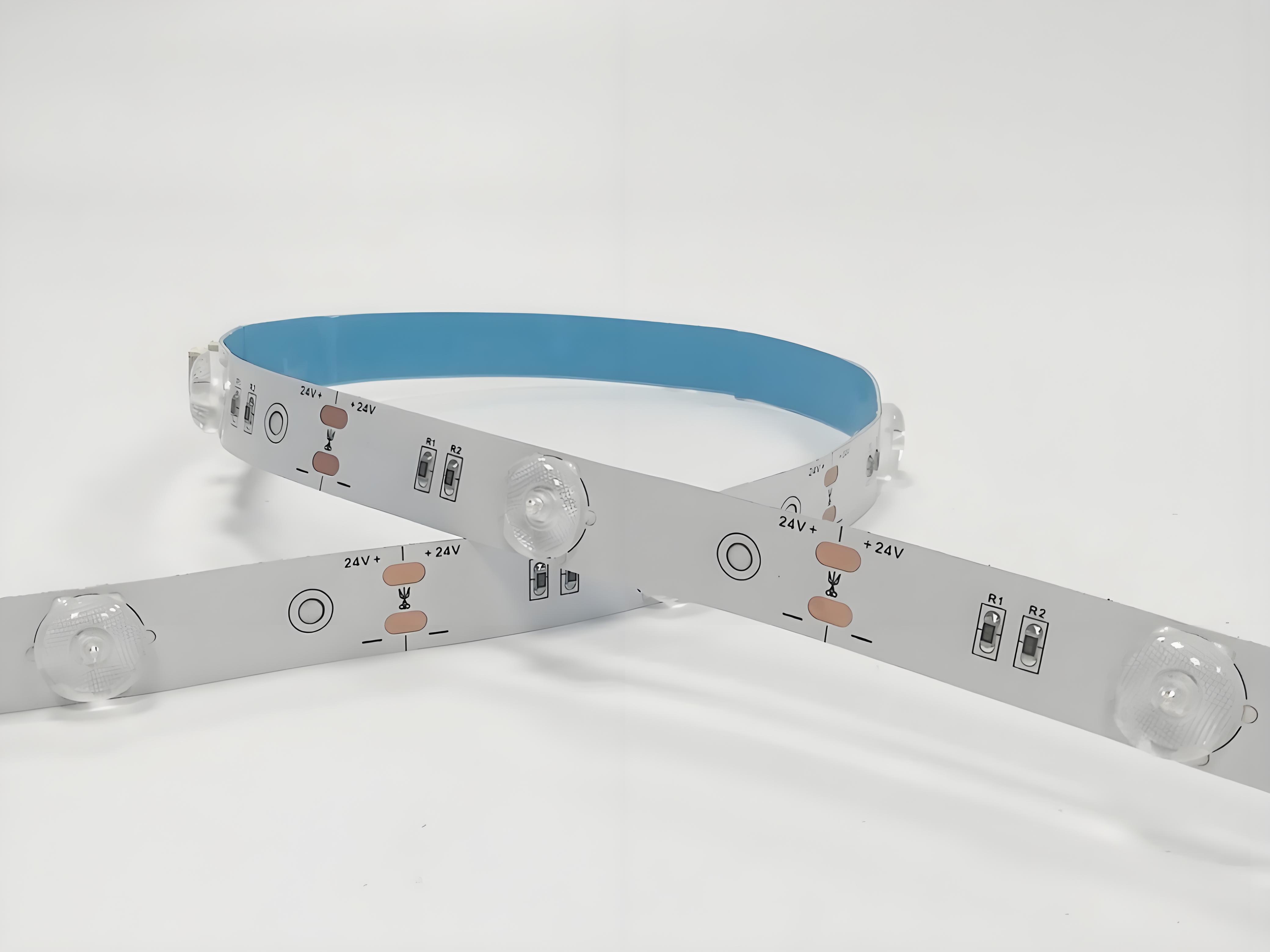

led strip for light box backlight
1. High power 2835 led chip, sdcm 5 or 1bin only, higher brightness and low decay
2. With connector each 0.5meter, easy for connection after cutting
3. With adhesive tape on the back, easy for installation
4. Suitable for led advertising box with 4-6cm thickness, 10cm distance between led strip
5. It's widely use for many kind of led advertising box and soft film

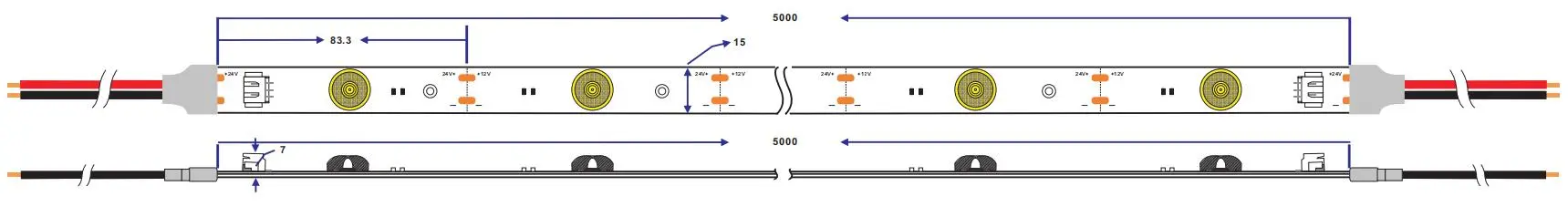

Dimension (mm)

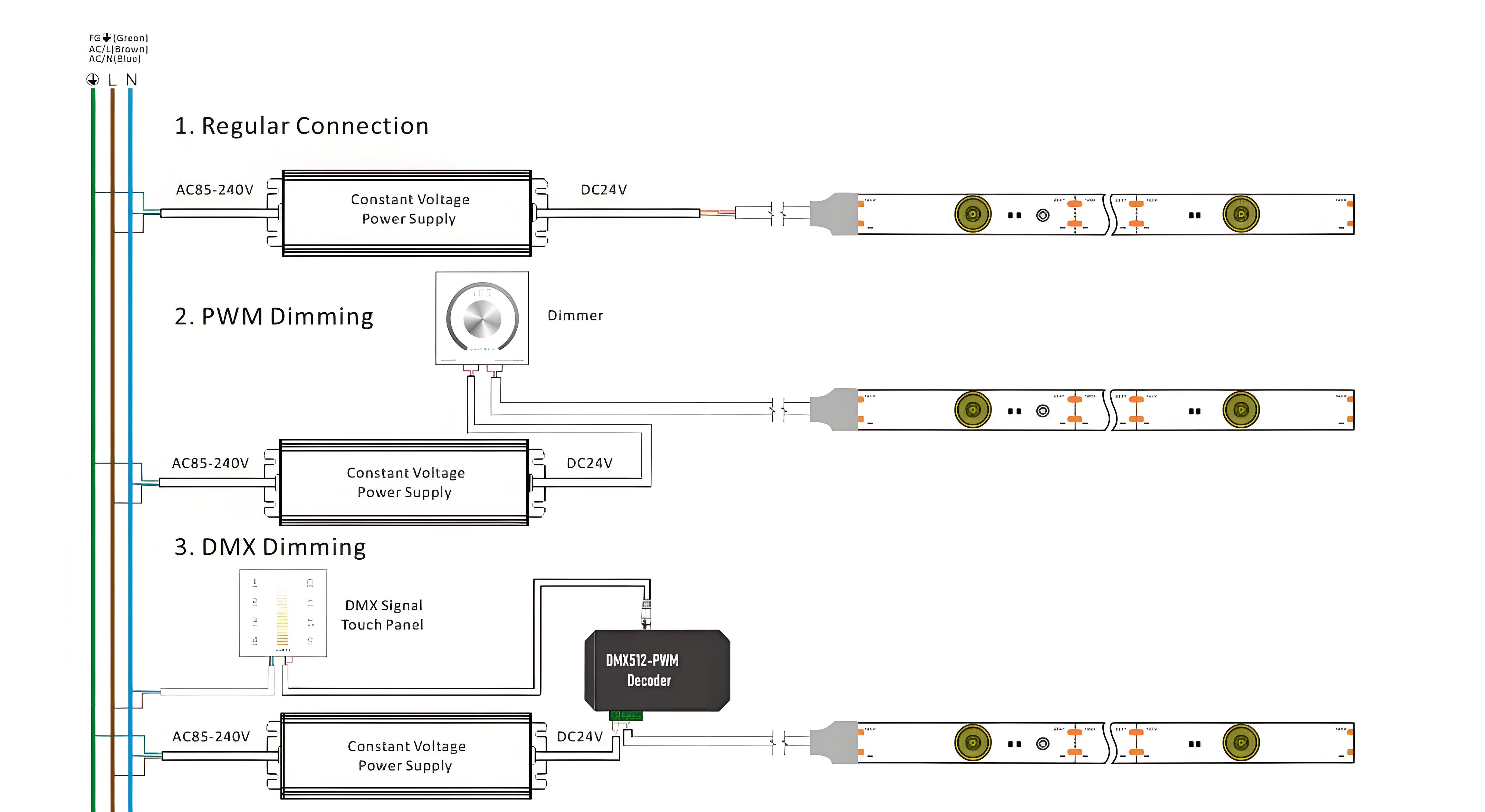

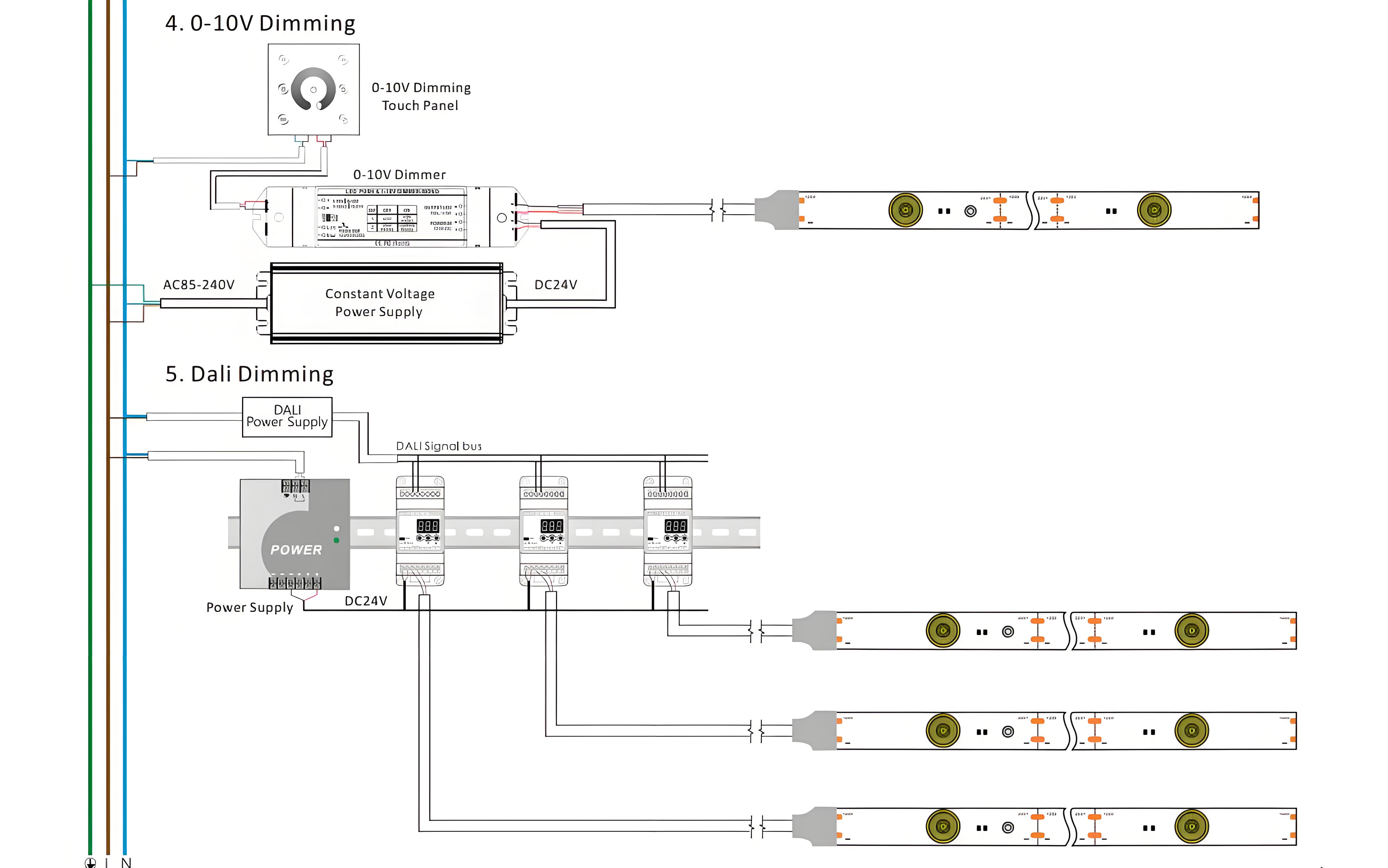

Connection of white 180 degree flex LED strip for Light Box backlight

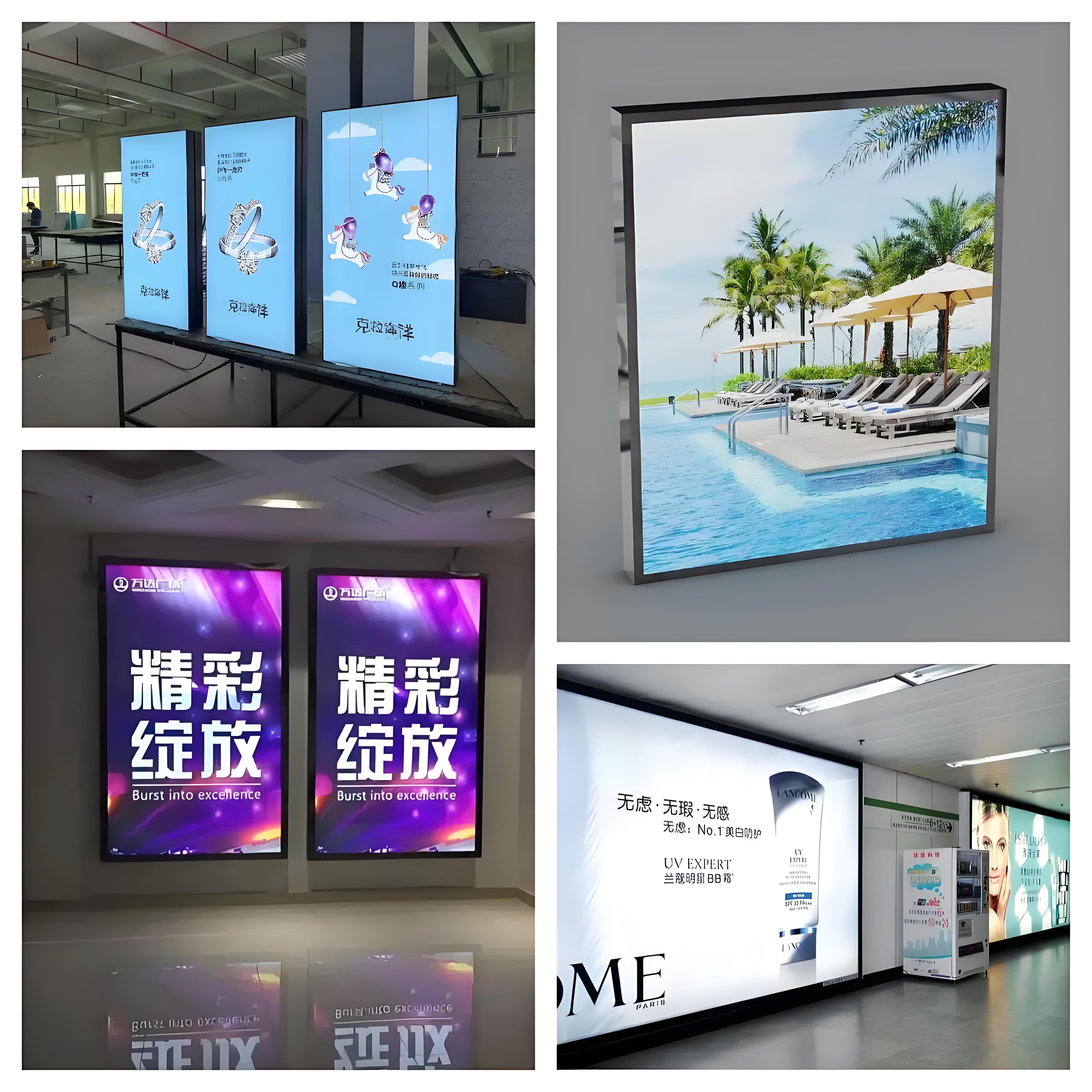

Application of led strip for light box backlight
