Shenzhen Risun Lighting CO., LTD
| Item Name | narrow pixel led strip
| LED Light Source | 3535RGB |
| LED Chip | Epistar/Sanan | LED Quantity | 60,120,144 LEDs/m |
| Input Voltage(V) | DC5V | Power | 14.4/16/20W/m |
| CRI | 90 | IC Type | WS2812mini RGB |
| IP Rating | IP20/IP67/IP68 | PCB Color | White/Black |
| Working Temperature(℃) | -25 - 60 | OEM&ODM | Available |
| Lifespan (hours) | 50000 | Package | 5M/Reel |
| Lamp Body Material | Copper | Warranty(Year) | 3Years |
| PCB Width | 10/12mm | Available Color | RGB/RGBW |

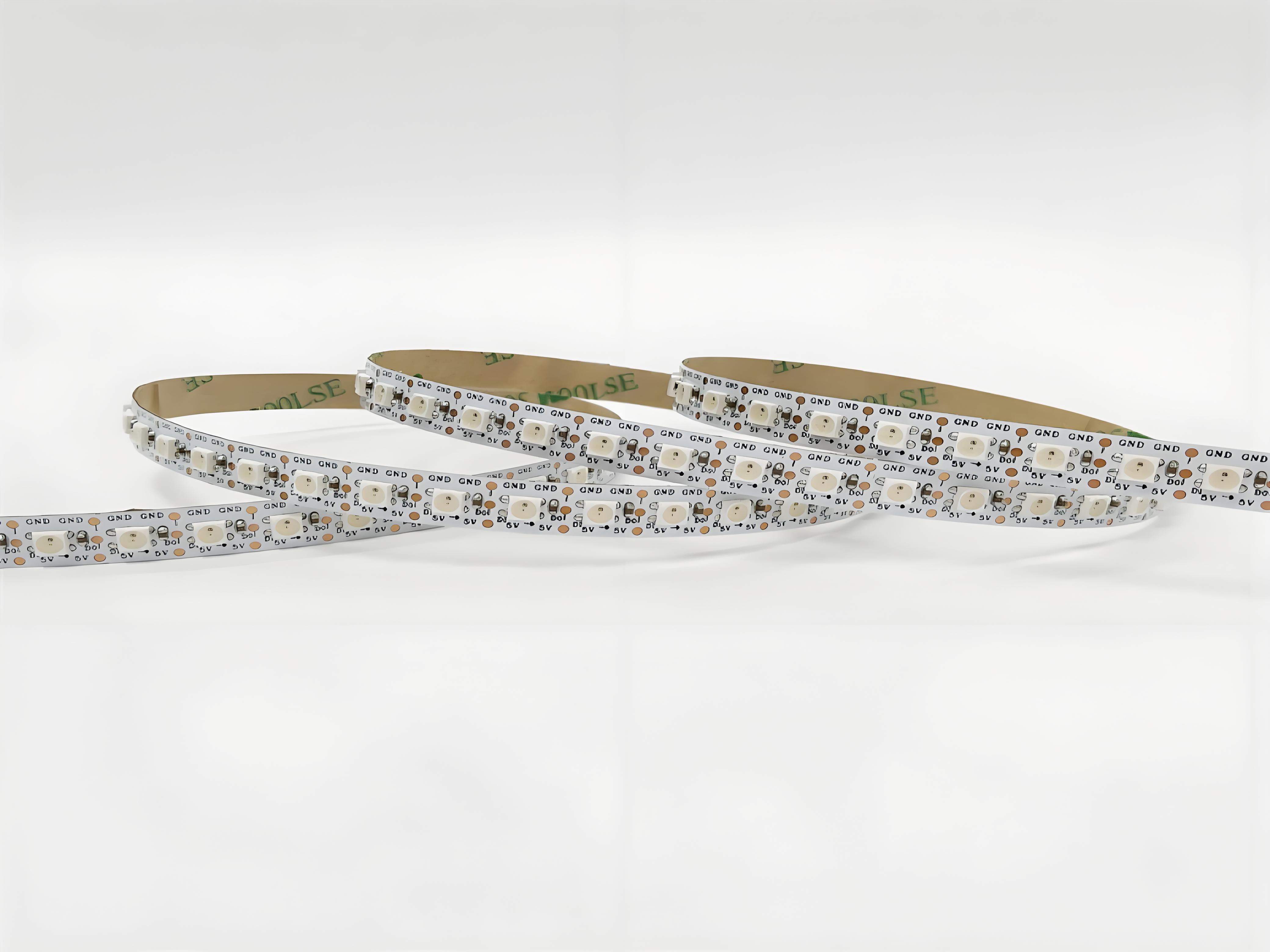

SK6812 mini 3535 led strip is an intelligent control LED light source that choose rgb or rgbw sk6812 3535 chip as a light source.
This design allow more led QTY in the small pcb board, suitable for application in narrow place.
The mini SK6812 LED strip is a smaller version of the SK6812 LED strip, which is also known as the NeoPixel.
The mini SK6812 LED strip has a smaller form factor, which makes it more suitable for installations in tight spaces or projects that require a smaller footprint.
| No. | Details |
| 5V-60L-60LED RGB 5050 lamp beads with built-in IC | 1, lamp bead model: 3535RGB 2, IC model: SK6812 3, IC quantity: 60 PCS /m 4, the number of lamp beads: 60 leds/m 5, voltage:DC5V 6, power :14.4 W /m 7, board color: black and white 8, lamp bead color: white, black |
| 5V-120L-120LED RGB 5050 lamp beads with built-in IC | 1, lamp bead model: 3535RGB 2, IC model: SK6812 3, IC quantity: 120PCS /m 4, the number of lamp beads: 120leds /m 5,voltage: DC5V 6, power :16W /m 7, board color: black and white 8, lamp bead color: white, black |
| 5V-144L144LED 5050 lamp beads with built-in IC | 1, lamp bead model: 3535RGB 2, IC model: SK6812 3, IC quantity: 144 PCS /m 4, the number of lamp beads: 144leds/m 5,voltage: DC5V 6, power: 20W /m 7, board color: black and white 8, lamp bead color: white, black |
IP Rating

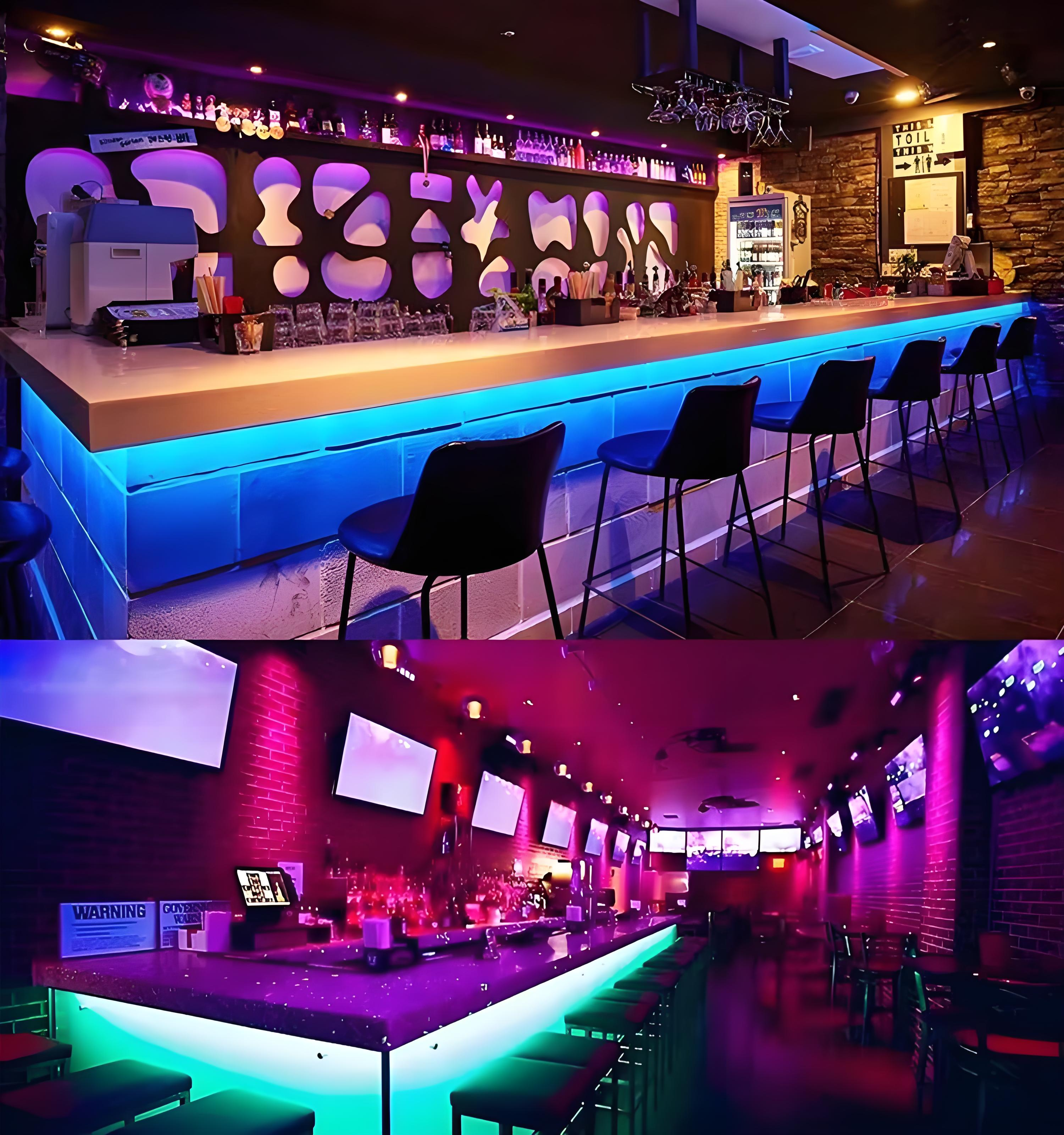

Application
