Shenzhen Risun Lighting CO., LTD
| Item Name | Sk6812 side emitting led strips
| LED Light Source | 4020 RGB |
| LED Chip | Epistar/Sanan | LED Quantity | 60,120,144 LEDs/m |
| Input Voltage(V) | DC5V | Power | 14.4/24/28.8W/m |
| CRI | 90 | IC Type | SK6812 |
| IP Rating | IP20/IP67/IP68 | PCB Color | White/Black |
| Working Temperature(℃) | -25 - 60 | OEM&ODM | Available |
| Lifespan (hours) | 50000 | Package | 5M/Reel |
| Lamp Body Material | Copper | Warranty(Year) | 3Years |
| PCB Width | 8/10/12mm | Available Color | RGB/RGBW |

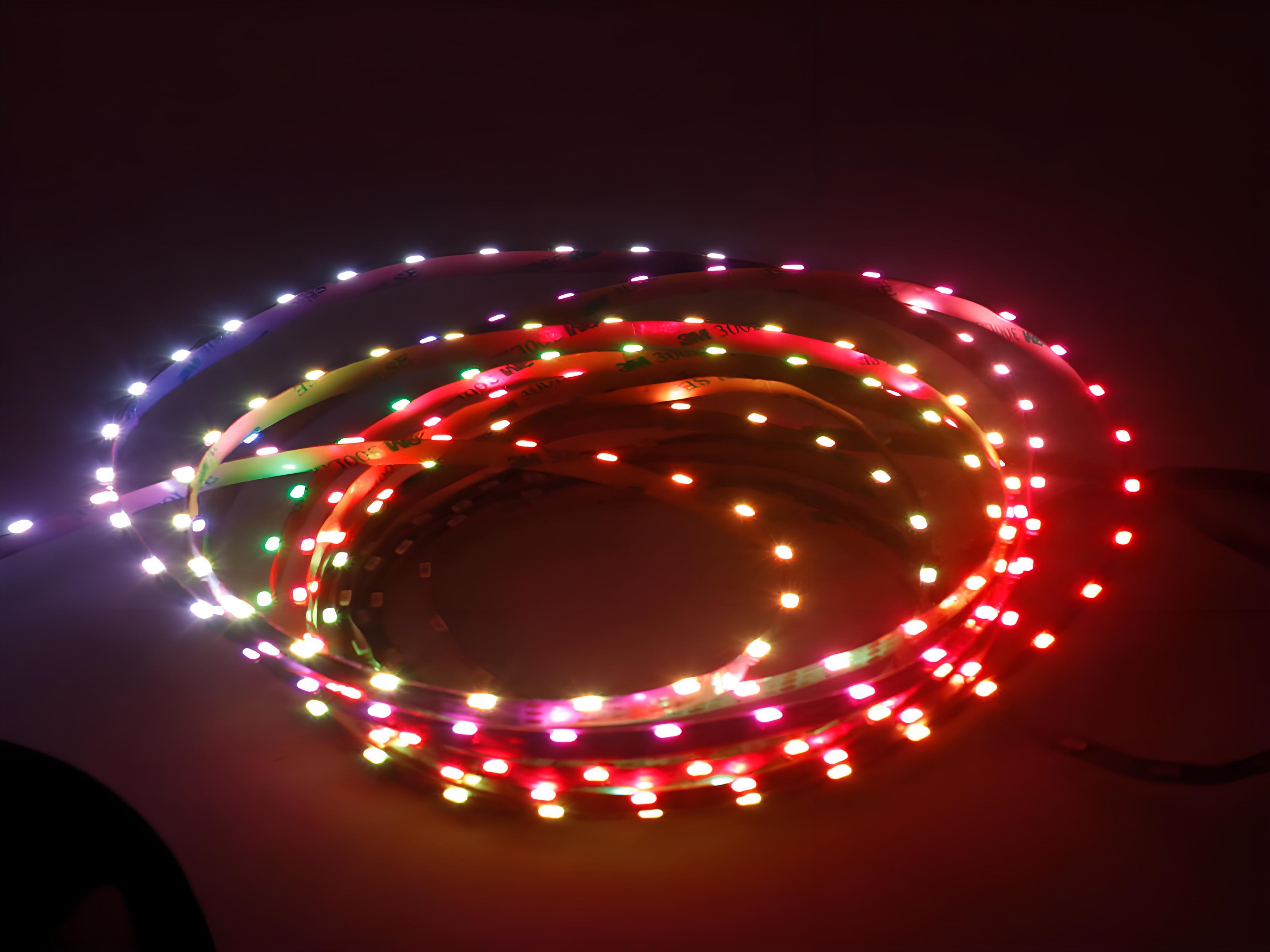

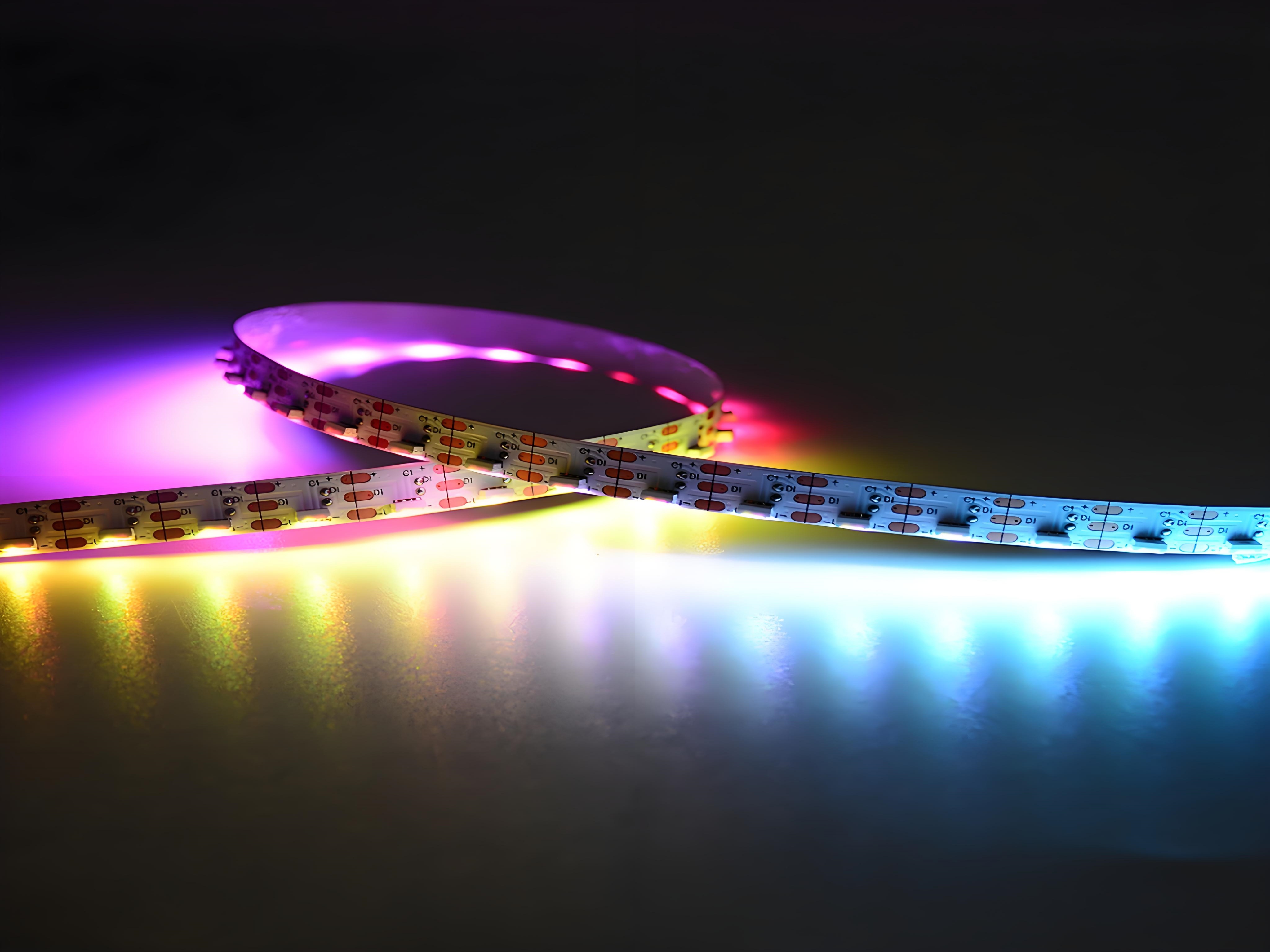

SK6812 side view pixel led strip
1, Original SK6812 4020 led, more stable in quality and higher brightness
2. DC5V design with 1led/cut, individually addressable, more flexible in software control
3. Pixel rgb sideview function, can be used in special applications like cars, LED curtains, etc.
4. The gray levels of each pixel of 256 levels, and the refresh frequency reaches 2KHz/s
5. Strong flexible for heat dissipation and real 3M tape for a strong installation
| No. | Details |
| 5V-60L-60LED RGB 5050Lamp bead built-in IC | 1, lamp bead model: 4020RGB 2, IC model: SK6812 3, IC quantity: 60 PCS /m 4, the number of lamp beads: 60 leds /m 5,voltage: DC5V 6, power :7.2W /m 7, board color: black and white 8, lamp bead color: white, black |
| 5V-72L-72LED RGB 5050 lamp beads with built-in IC | 1, lamp bead model: 4020RGB 2, IC model: SK6812 3, IC quantity: 72PCS /m 4, the number of lamp beads: 72leds/m 5, voltage:DC5V 6, power :14.4 W /m 7, board color: black and white 8, lamp bead color: white, black |
| 5V-120L-120LED RGB 5050 lamp beads with built-in IC | 1, lamp bead model: 4020RGB 2, IC model: SK6812 3, IC quantity: 120PCS /m 4, the number of lamp beads: 120leds /m 5,voltage: DC5V 6, power :24W /m 7, board color: black and white 8, lamp bead color: white, black |
| 5V-144L144LED 5050 lamp beads with built-in IC | 1, lamp bead model: 4020RGB 2, IC model: SK6812 3, IC quantity: 144 PCS /m 4, the number of lamp beads: 144leds/m 5,voltage: DC5V 6, power: 28.8W /m 7, board color: black and white 8, lamp bead color: white, black |
IP Rating
Application
