Shenzhen Risun Lighting CO., LTD
| Item Name | S shape flex LED strip
| LED Light Source | SMD2835 |
| LED Chip | Epistar/Sanan | LED Quantity | 12LEDs/m |
| Input Voltage(V) | DC24V | Power | 10W/m |
| CRI | 90 | Cutting unit | 83.33mm |
| IP Rating | IP20 | PCB Color | White |
| Working Temperature(℃) | -25 -45 | OEM&ODM | Available |
| Lifespan (hours) | 50000 | Beam angle | 180° |
| Lamp Body Material | Copper | Warranty(Year) | 3Years |
| Dimension
| 5000mm*12mm | Available Color | 3000-6500K |
led strip for light box backlight
1. High power 2835 led chip, sdcm 5 or 1bin only, higher brightness and low decay
2. S shape PCB design, easier for shape installation
3. With adhesive tape on the back, easy for installation
4. Suitable for led advertising box with 4-6cm thickness, 10cm distance between led strip
5. It's widely use for many kind of led advertising box and soft film

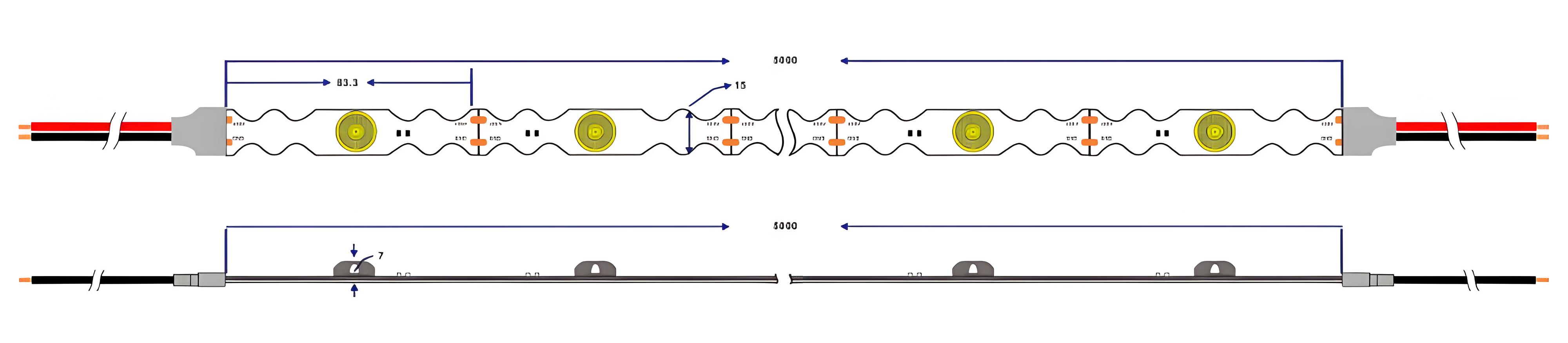

Dimension (mm) of White 180 degree S shape flex LED strip

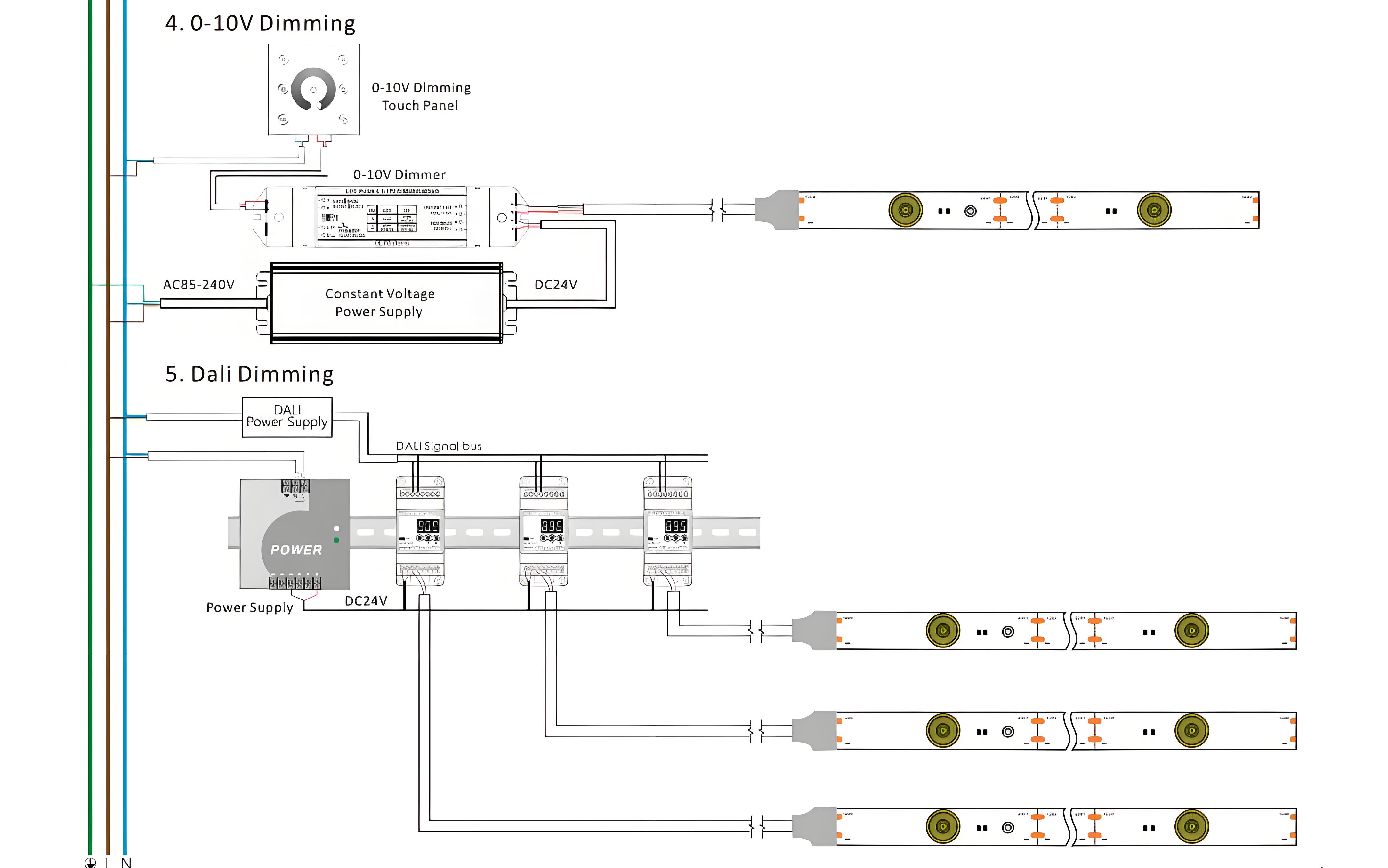

Connection of White 180 degree S shape flex LED strip

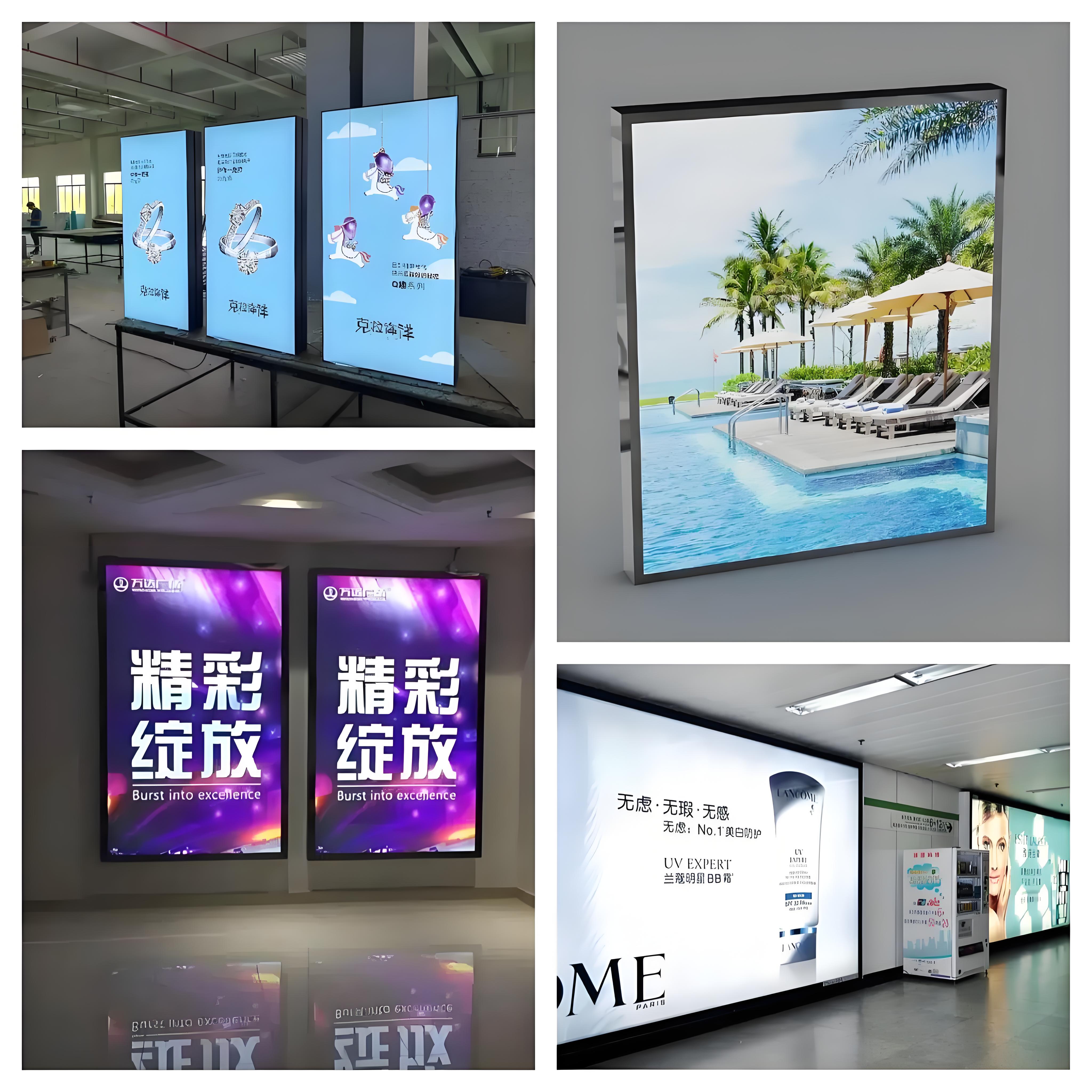

Application of White 180 degree S shape flex LED strip
