Shenzhen Risun Lighting CO., LTD
| Item Name | SK9822 Led Strip | LED Light Source | SMD5050 |
| LED Chip | Epistar/Sanan | LED Quantity | 30, 60,144 LEDs/m |
| Input Voltage(V) | DC5V | Power | 7.2/14.4/28.8W/m |
| CRI | 90 | IC Type | WS2812 SK6812 |
| IP Rating | IP20/IP67/IP68 | PCB Color | White/Black |
| Working Temperature(℃) | -25 - 60 | OEM&ODM | Available |
| Lifespan (hours) | 50000 | Package | 5M/Reel |
| Lamp Body Material | Copper | Warranty(Year) | 3Years |
| PCB Width | 10/12mm | Available Color | RGB/RGBW |

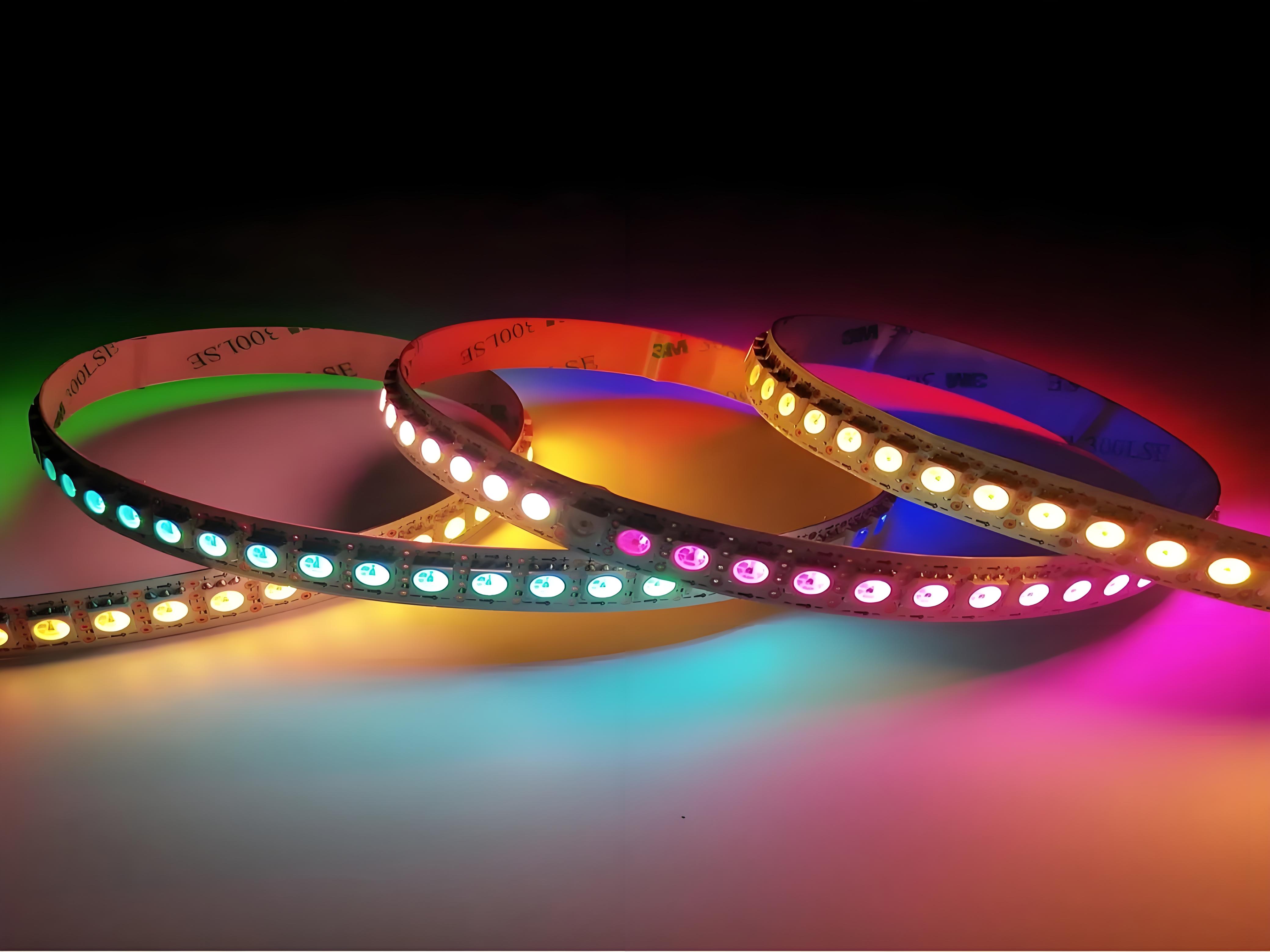

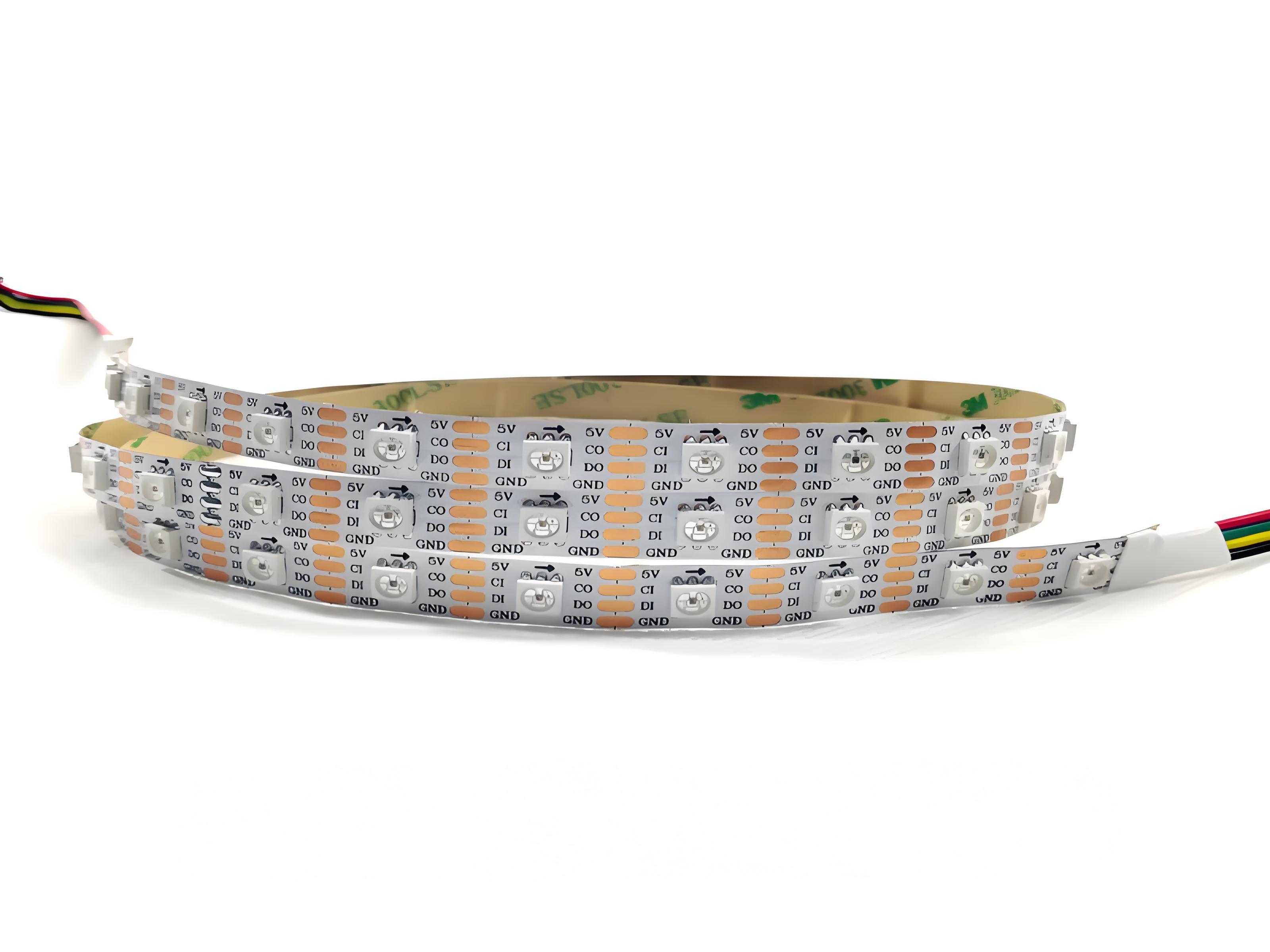

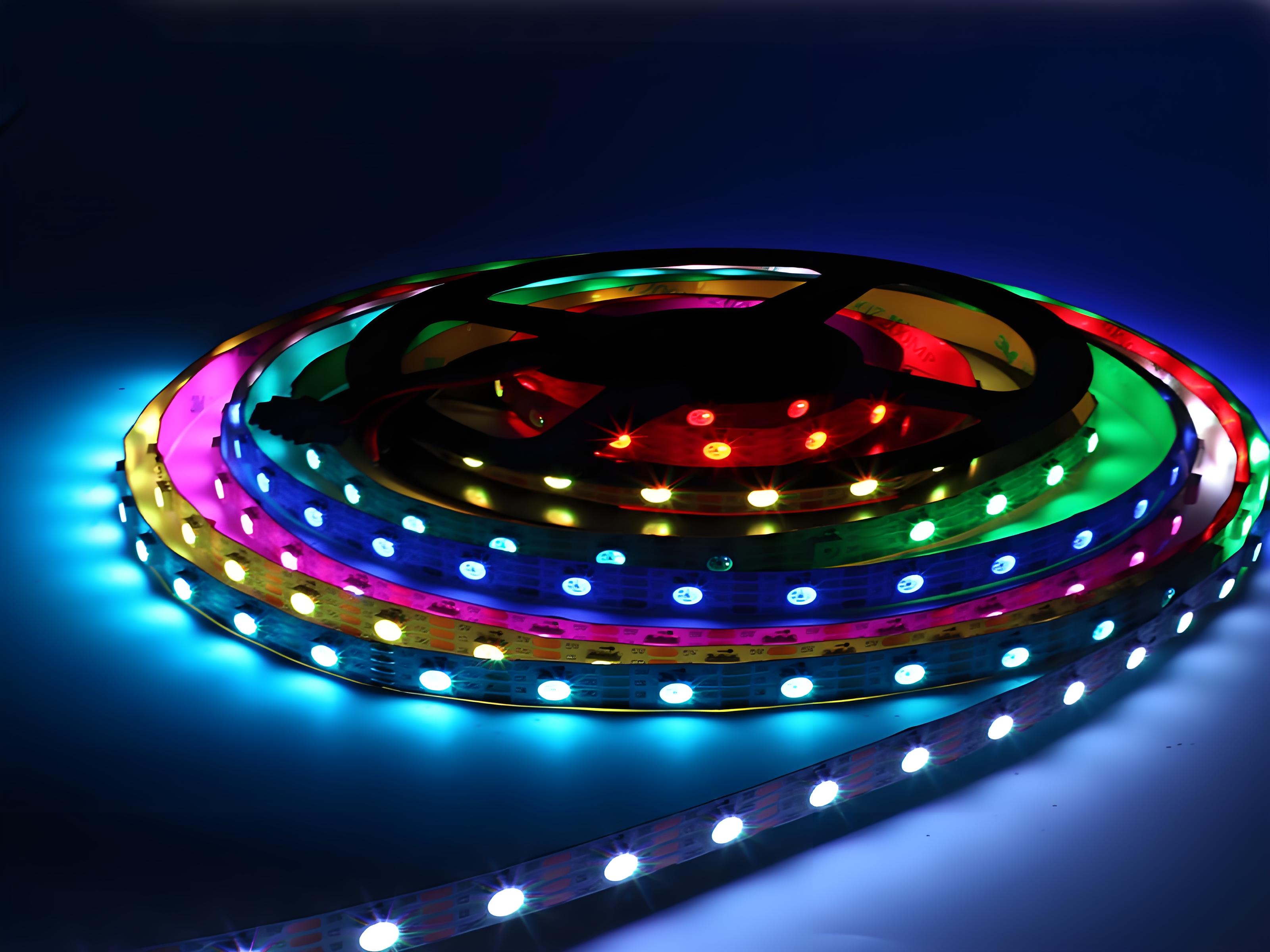

APA102/HD107S/ SK9822 led strip
1. Two-wire synchronous control
2. With signal self-detection function
3. Fast transmission speed, the maximum serial input data frequency is 30MHZ
4. Two-wire data transmission, built-in oscillation supports uninterrupted PWM output, which can keep the picture still
5. DC5V design with 1led/cut, individually controlled
6. Strong flexible for heat dissipation and real 3M tape for a strong installation
| No. | Details |
| 5V-30L-30LED RGB 5050Lamp bead built-in IC | 1, lamp bead model: 5050RGB 2, IC model: SK9822 3, IC quantity: 30 PCS /m 4, the number of lamp beads: 30 leds /m 5,voltage: DC5V 6, power :7.2W /m 7, board color: black and white 8, lamp bead color: white, black |

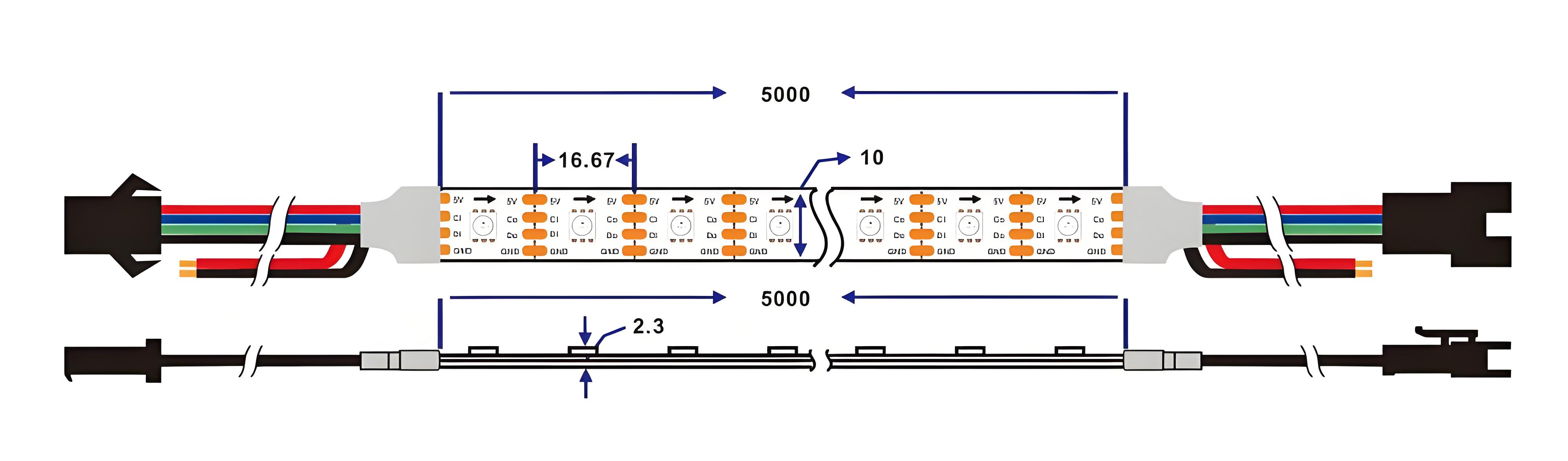

| 5V-60L-60LED RGB 5050 lamp beads with built-in IC | 1, lamp bead model: 5050RGB 2, IC model: SK9822 3, IC quantity: 60 PCS /m 4, the number of lamp beads: 60 leds/m 5, voltage:DC5V 6, power :14.4 W /m 7, board color: black and white 8, lamp bead color: white, black |

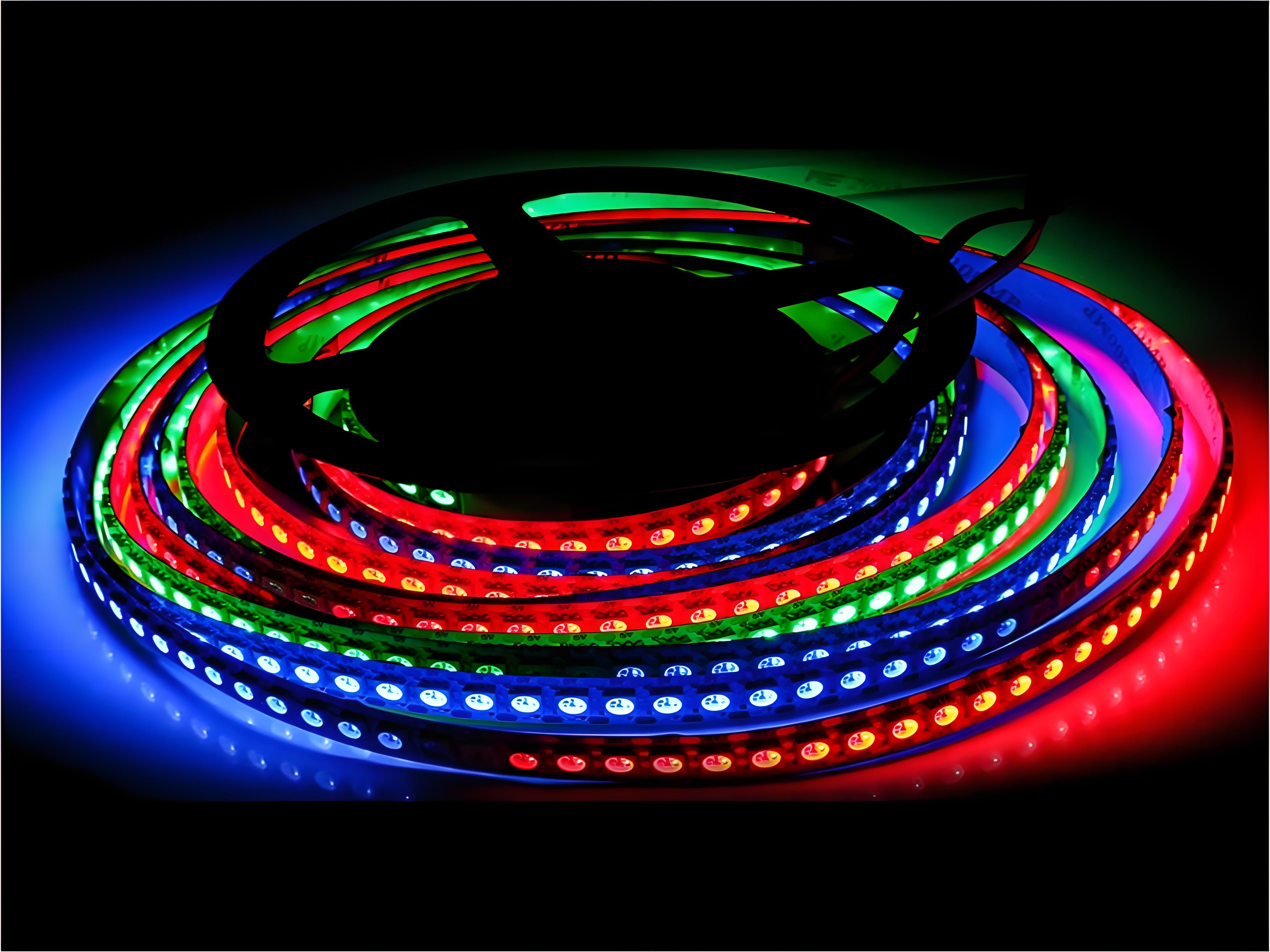

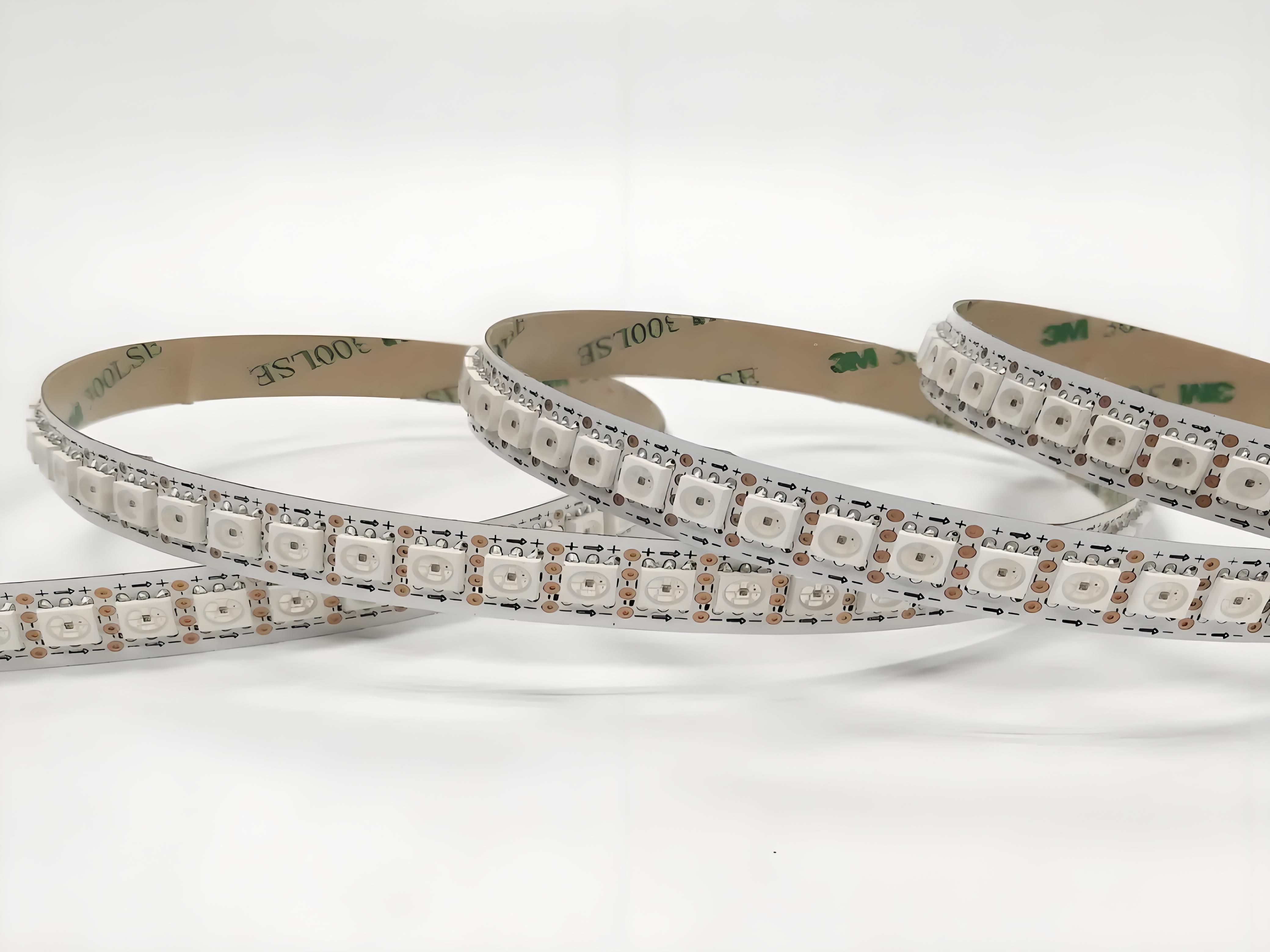

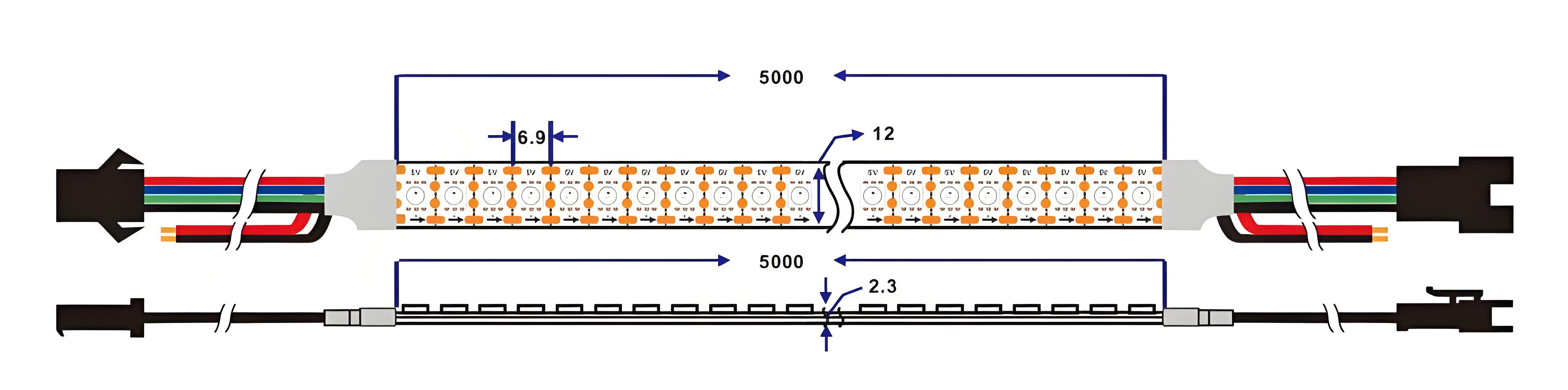

| 5V-144L144LED 5050 lamp beads with built-in IC | 1, lamp bead model: 5050RGB 2, IC model: SK9822 3, IC quantity: 144 PCS /m 4, the number of lamp beads: 144leds/m 5,voltage: DC5V 6, power: 28.8W /m 7, board color: black and white 8, lamp bead color: white, black |

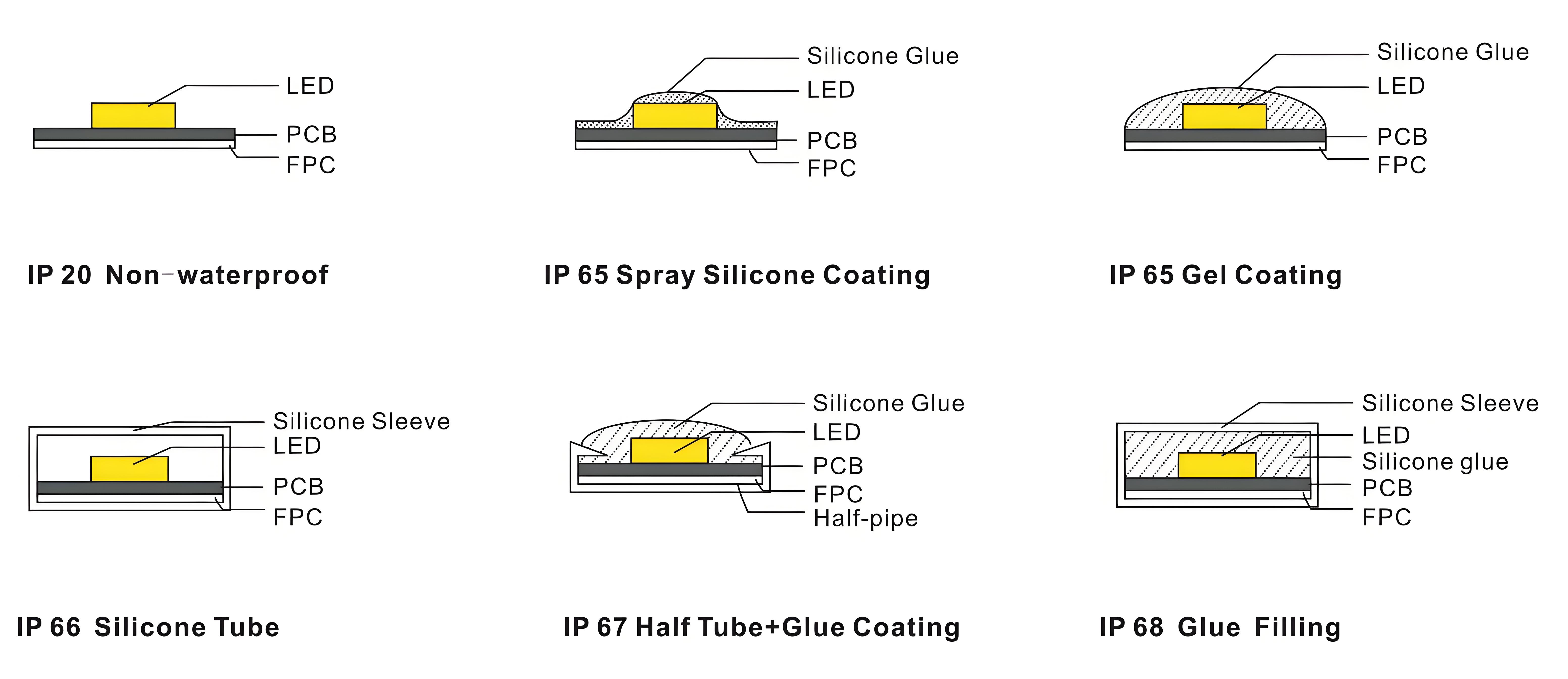

IP Rating
Application
