Shenzhen Risun Lighting CO., LTD
| Item Name | RGB 180° S shape led strip
| LED Light Source | SMD3838 RGB |
| LED Chip | Epistar/Sanan | LED Quantity | 14LEDs/m |
| Input Voltage(V) | DC24V | Power | 12W/m |
| CRI | 90 | Beam angle | 180° |
| IP Rating | IP20 | PCB Color | White |
| Working Temperature(℃) | -25 -45 | OEM&ODM | Available |
| Lifespan (hours) | 50000 | Brightness
| 420lm/M |
| Lamp Body Material | Copper | Warranty(Year) | 3Years |
| Dimension
| 5000mm*15mm | Available Color | RGB
|

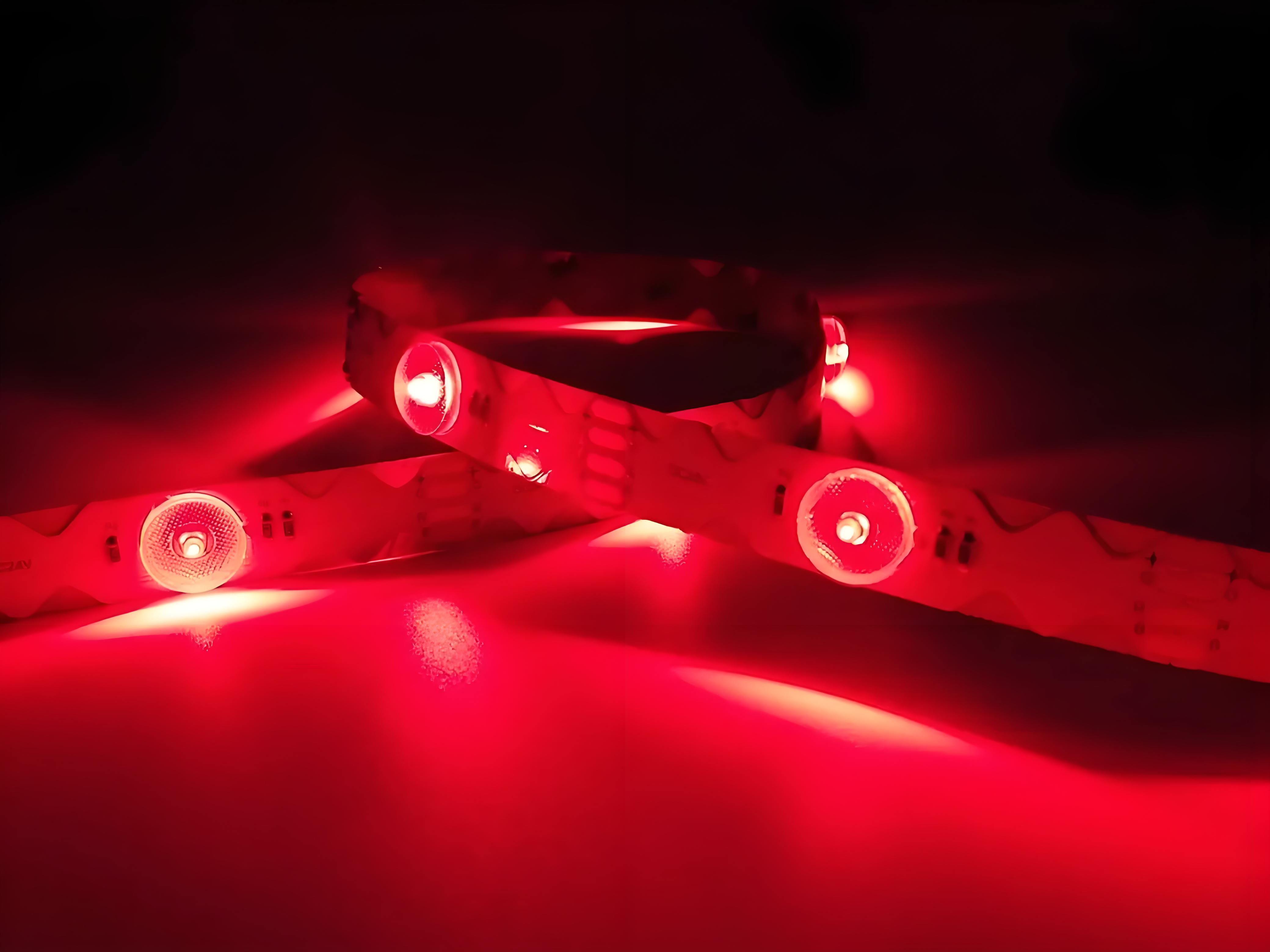

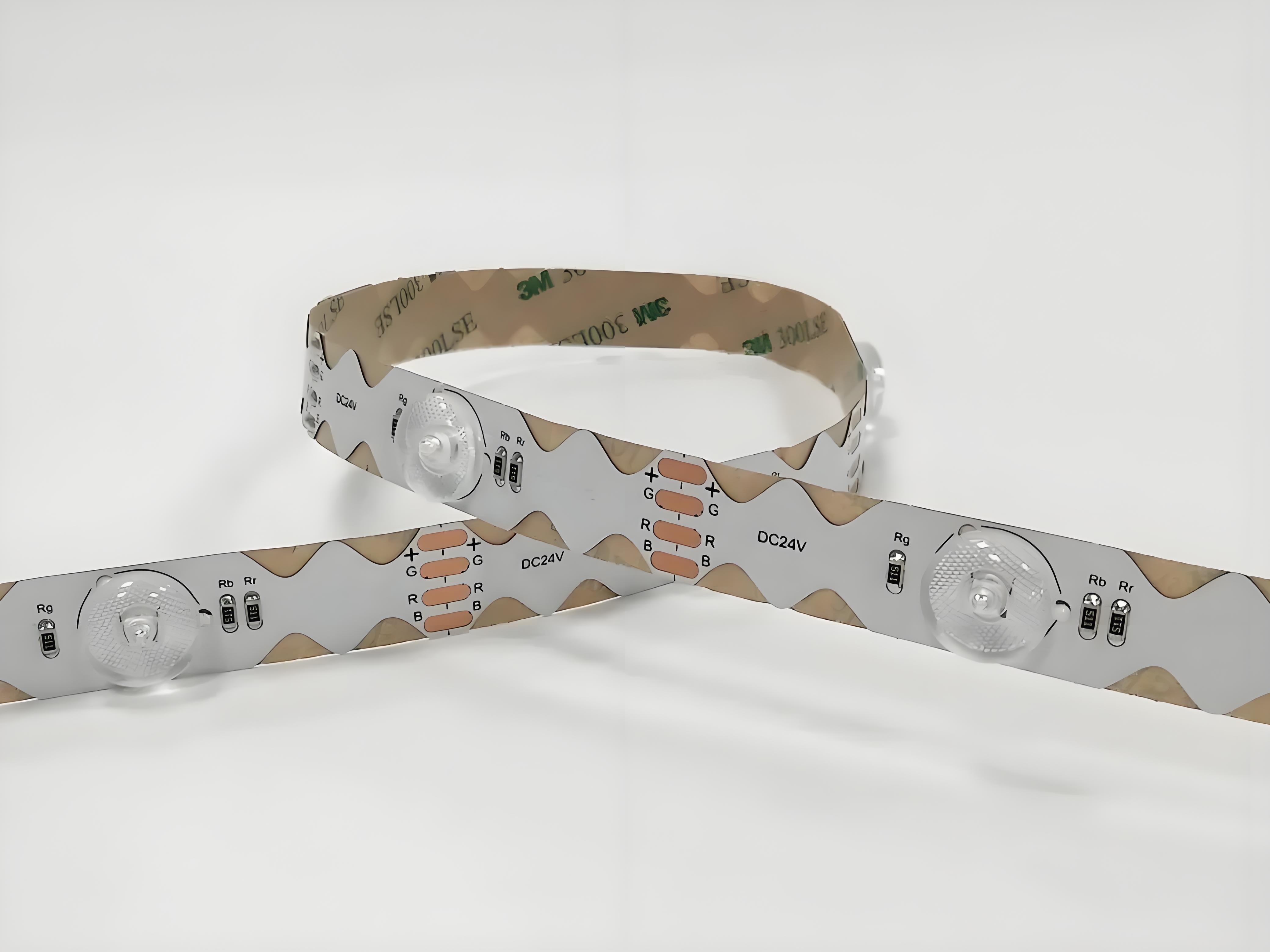

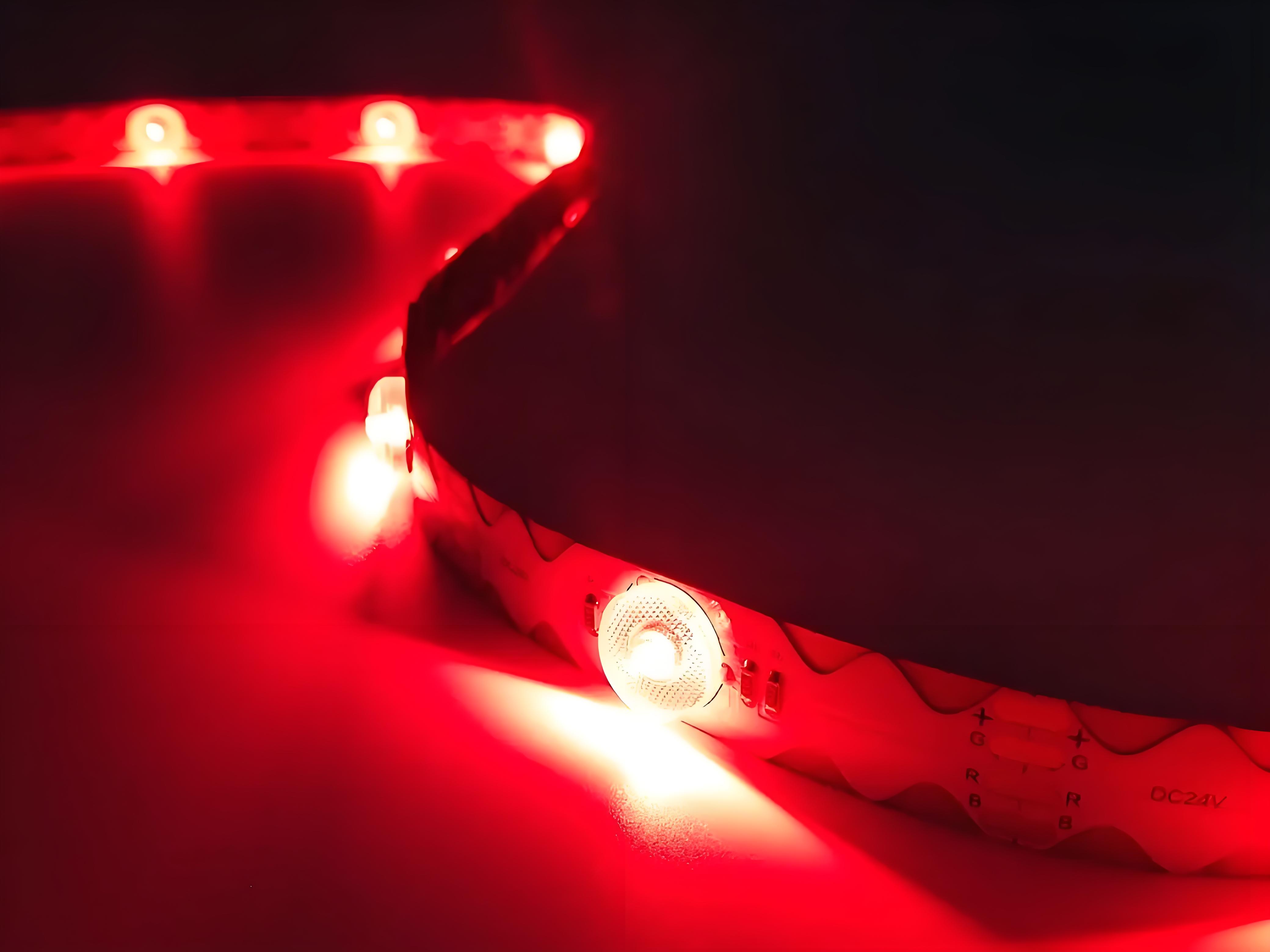

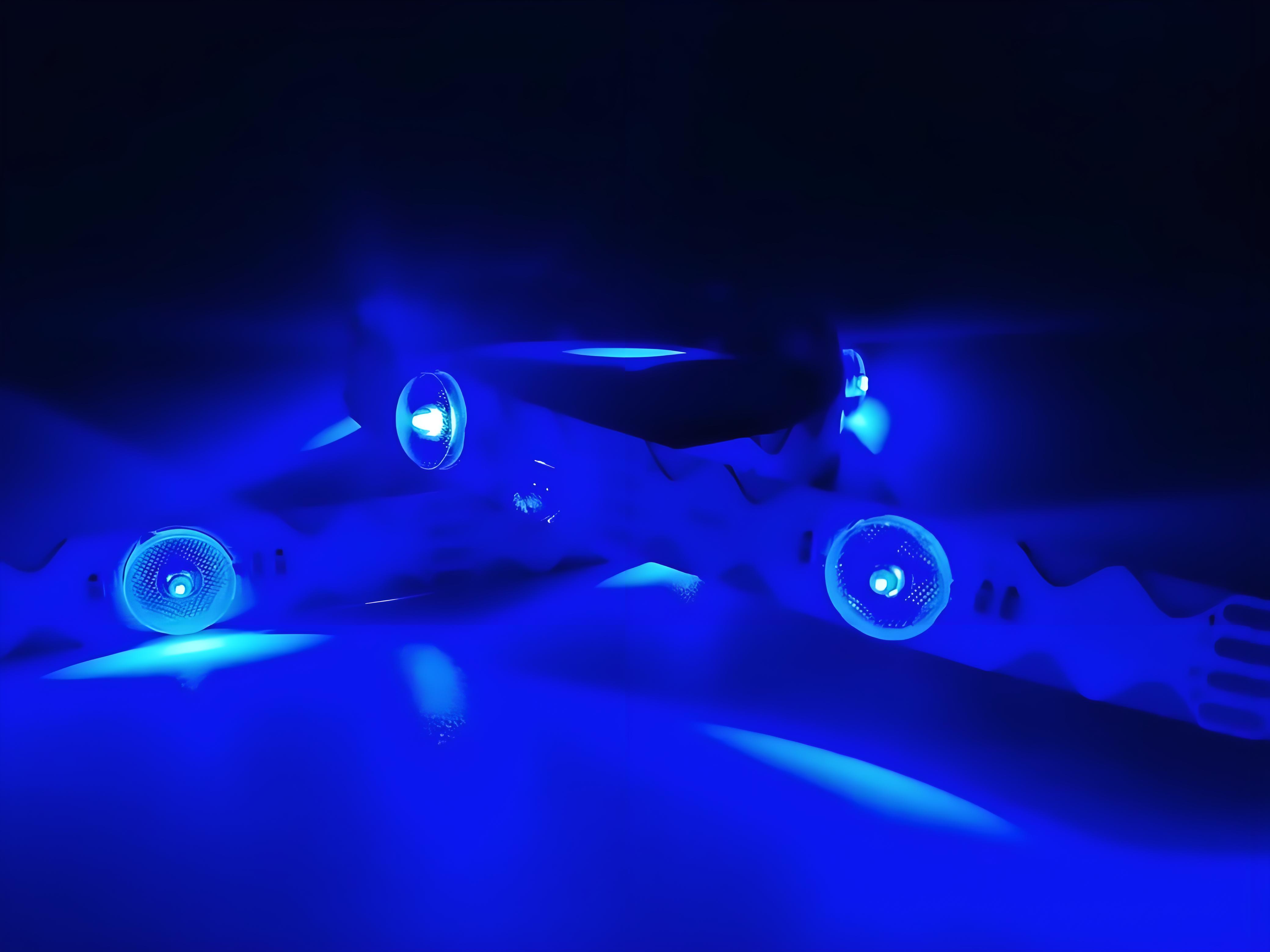

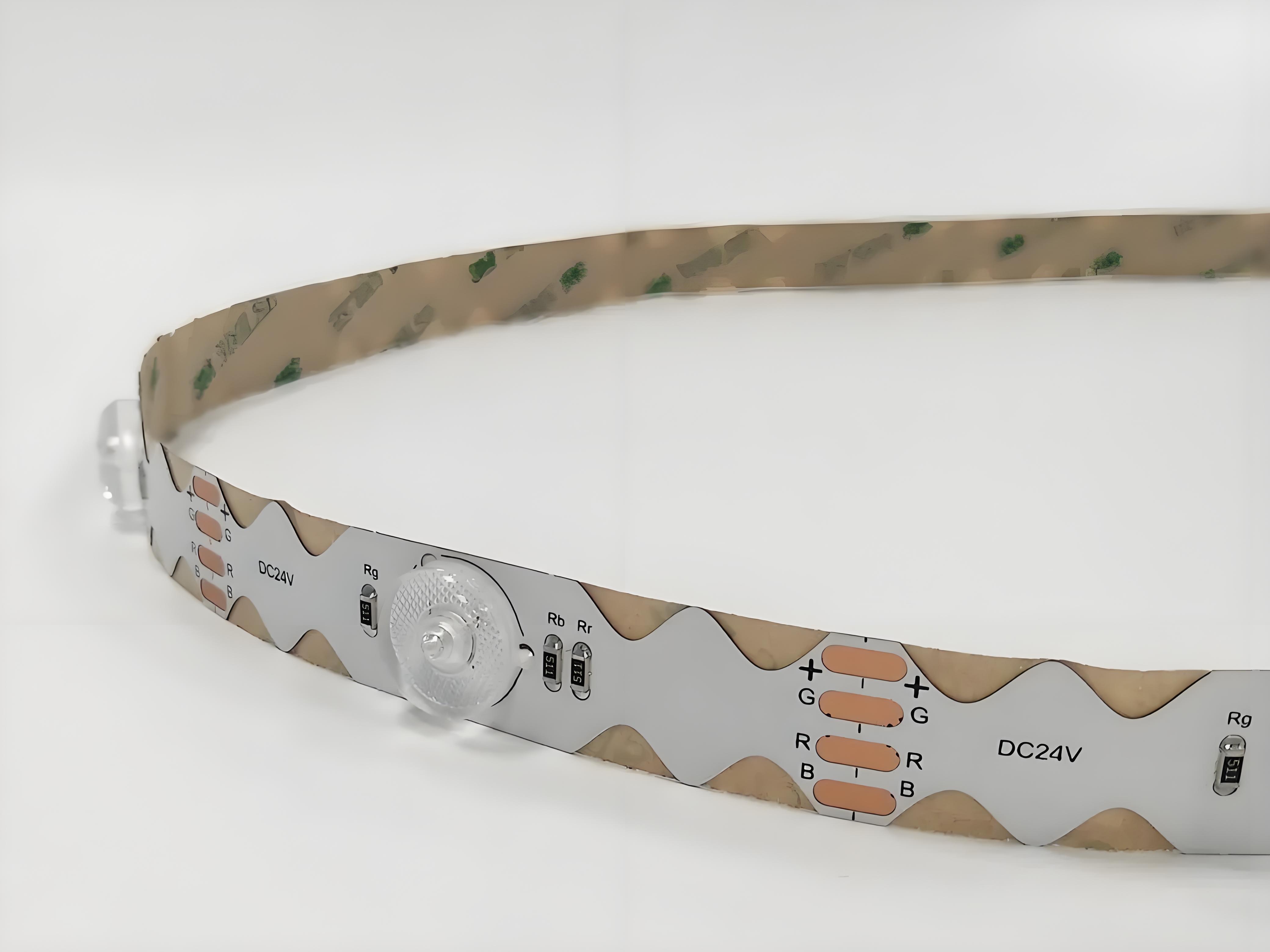

RGB 180 degree S shape flex LED strip light
1. High power 383 RGB chip, higher brightness and low decay
2. S shape design for easier bending during installation
3. With adhesive tape on the back, easy for installation
4. Suitable for led advertising box with 4-6cm thickness, 10cm distance between led strip
5. It's widely use for many kind of led advertising box and soft film

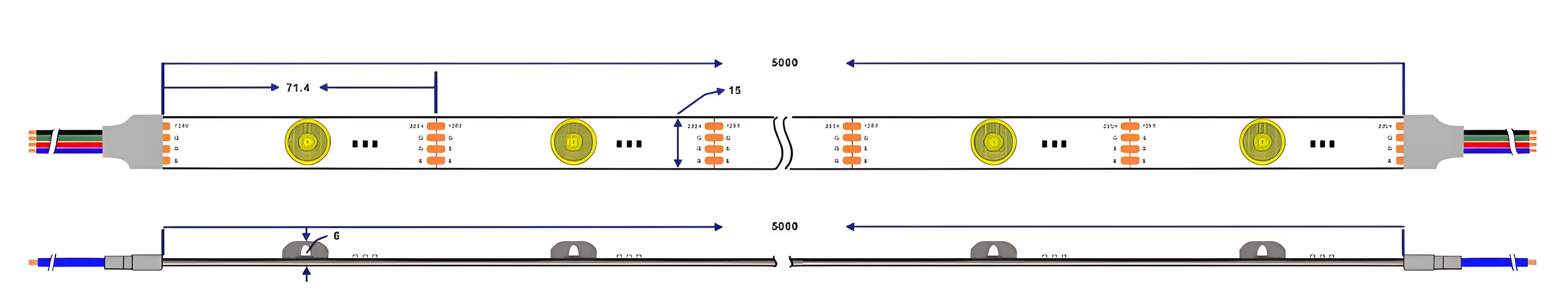

Dimension (mm)
Connection of RGB 180° S shape led strip
Application of RGB 180 degree S shape flex LED strip light
