Shenzhen Risun Lighting CO., LTD
| Item Name | led strip for light box
| LED Light Source | SMD2835 |
| LED Chip | Epistar/Sanan | LED Quantity | 24LEDs/m |
| Input Voltage(V) | DC24V | Power | 18W/m |
| CRI | 90 | Beam angle | 180° |
| IP Rating | IP20 | PCB Color | White/Black |
| Working Temperature(℃) | -25 -45 | OEM&ODM | Available |
| Lifespan (hours) | 50000 | Cutting unit | 83.33mm |
| Lamp Body Material | Copper | Warranty(Year) | 3Years |
| Dimension
| 5000mm*15mm | Available Color | 2700-6500K |
sign led strip for light box backlight
1. High power 2835 led chip, sdcm 5 or 1bin only, higher brightness and low decay
2. With connector each 0.5meter, easy for connection after cutting
3. With adhesive tape on the back, easy for installation
4. Suitable for led advertising box with 4-6cm thickness, 10cm distance between led strip
5. It's widely use for many kind of led advertising box and soft film
6. Dual White color available, color can be changed from 2700K to 6500K

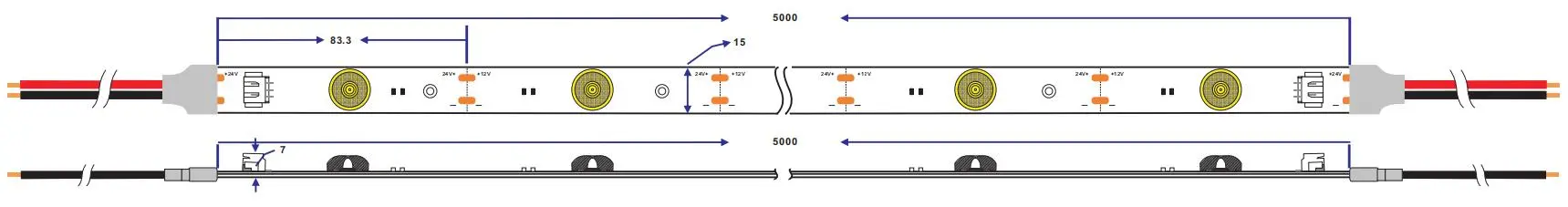

Dimension (mm)

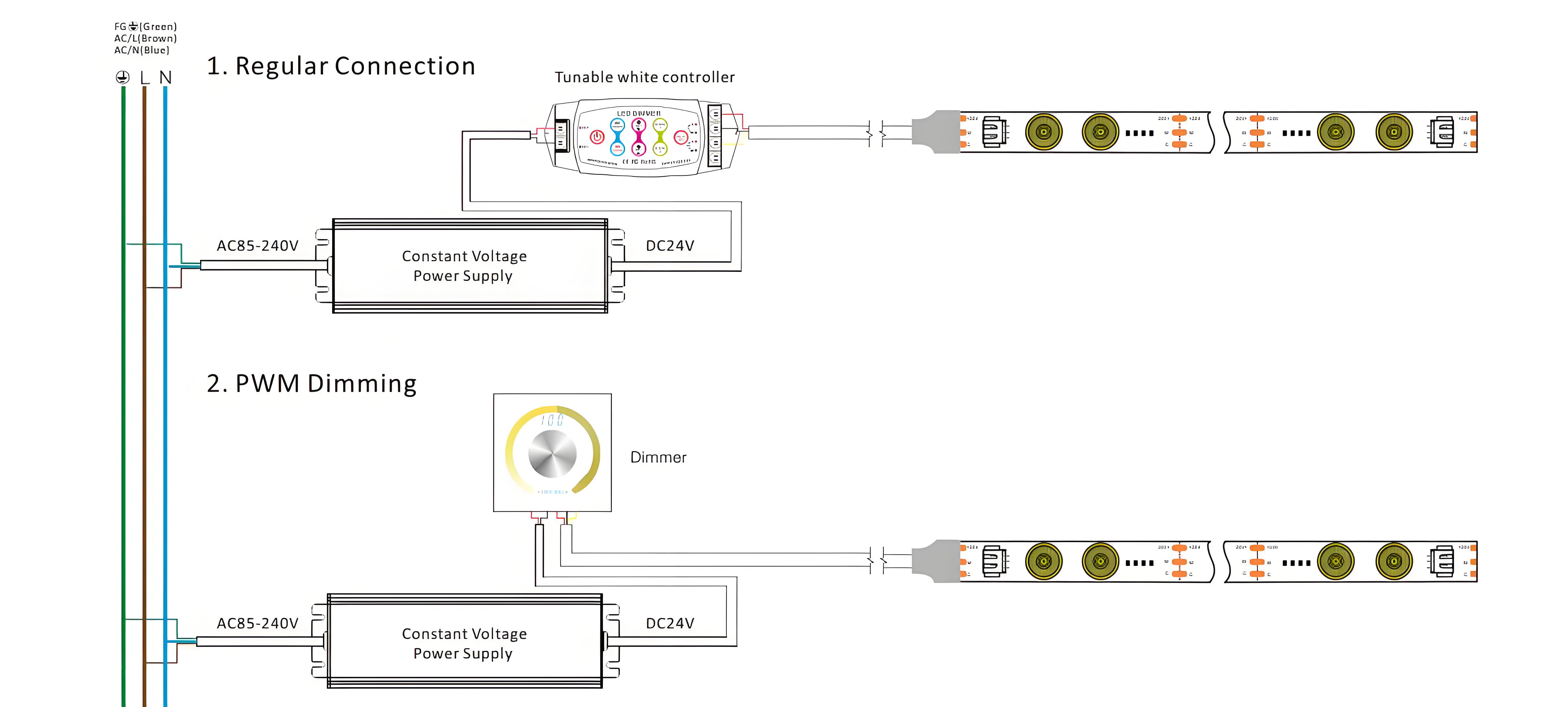

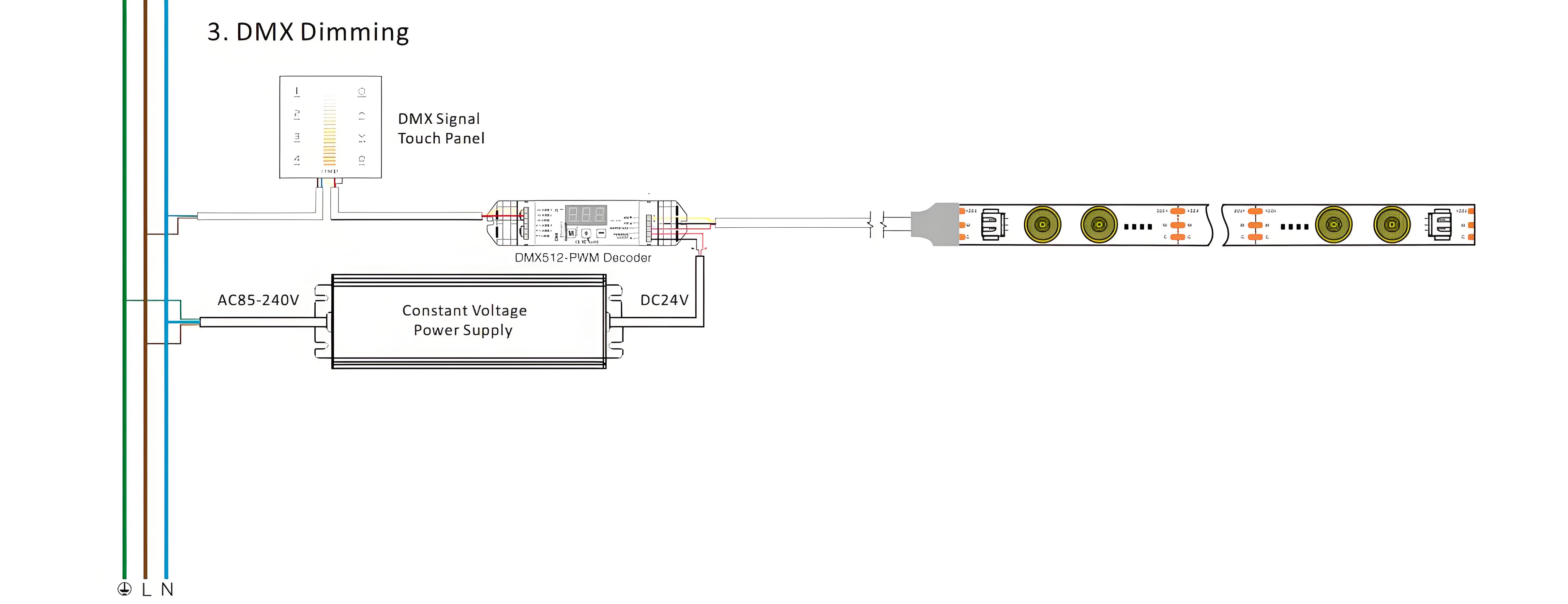

Connection of dual White 180 degree flex LED strip for Light Box backlight
Application of sign led strip for light box backlight
