SMD2835 576LED 12LEDs/cut dual white LED sheet

Product descriptions

Item Name	Dual white led sheet	LED Light Source	SMD2835
LED Chip	Epistar/Sanan	LED Quantity	576LEDs/m
Input Voltage(V)	DC24V	Power	90W/m
CRI	90	Beam angle	120°
IP Rating	IP20	PCB Color	White
Working Temperature(℃)	-25 -45	OEM&ODM	Available
Lifespan (hours)	50000	Brightness	9000lm/pcs
Lamp Body Material	Copper	Warranty(Year)	3Years
Dimension	480mm*240mm	Available Color	2700-6500K

576LED 12LEDs/cut 2835 dual white LED sheet for light box backlight

1. 12 LED 1CUT LED Sheet
2. Comes with terminals and connectors, easy to install
3. Free cutting, you can DIY various shapes
4. Can increase the use of lenses, widely applied to counters, light boxes, advertising light boards, etc.

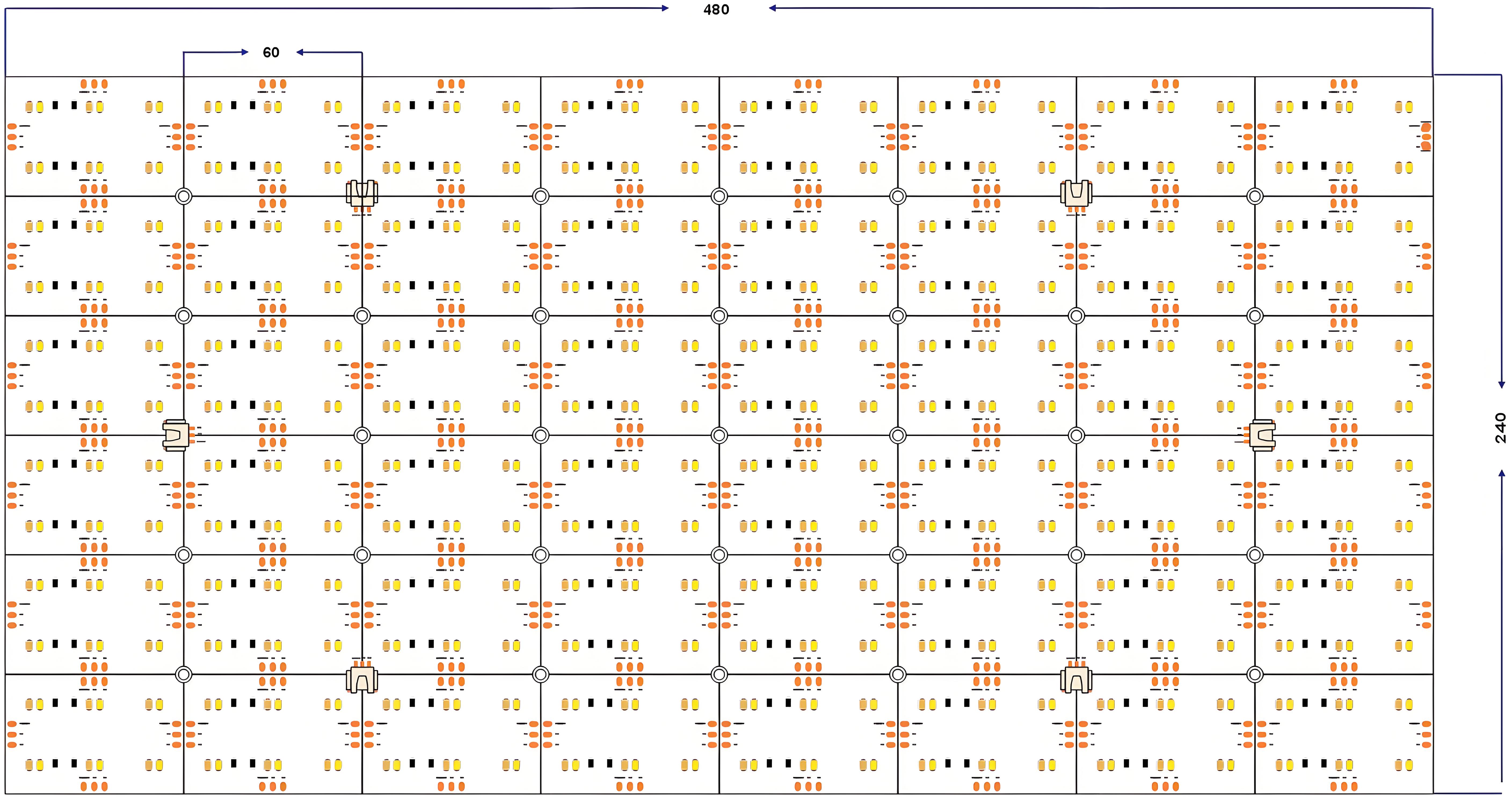

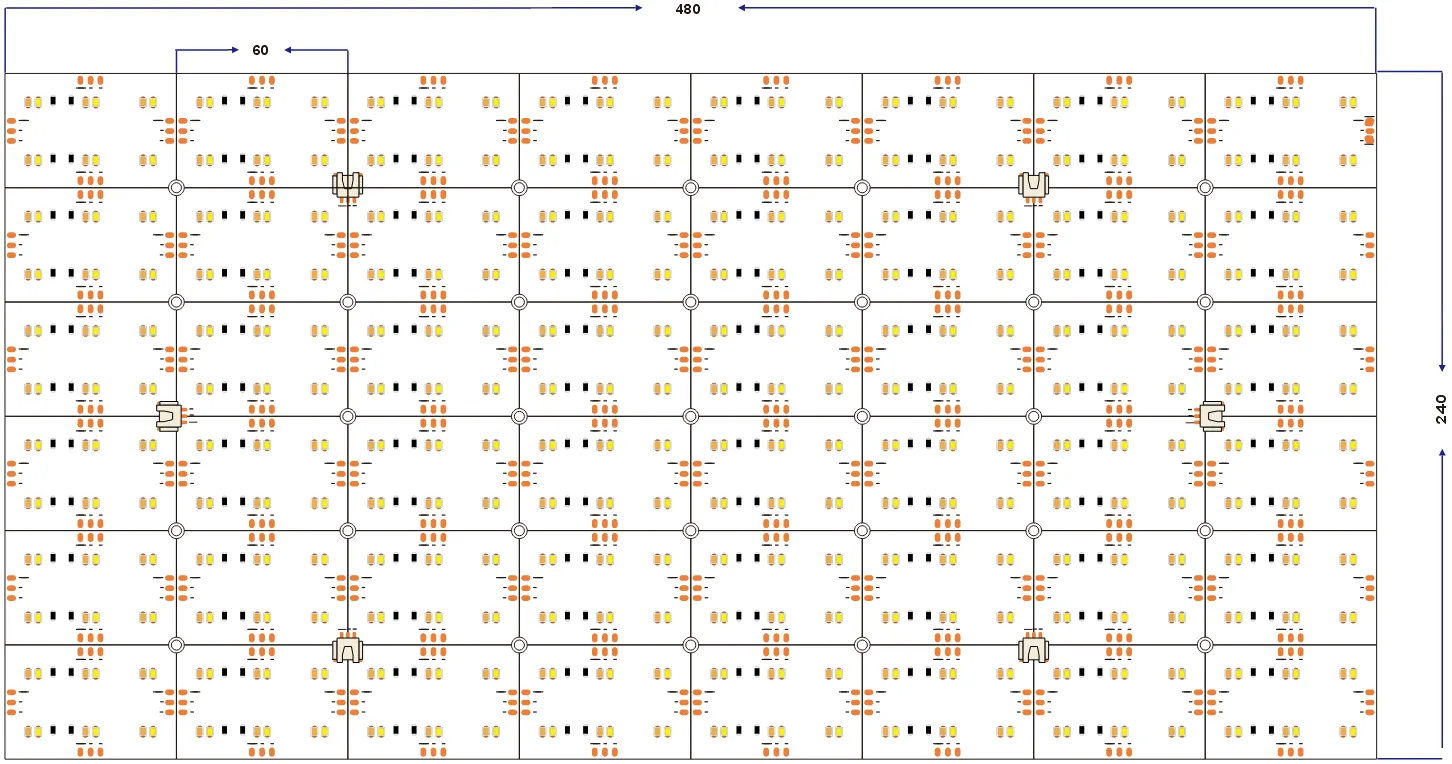

Dimension (mm)

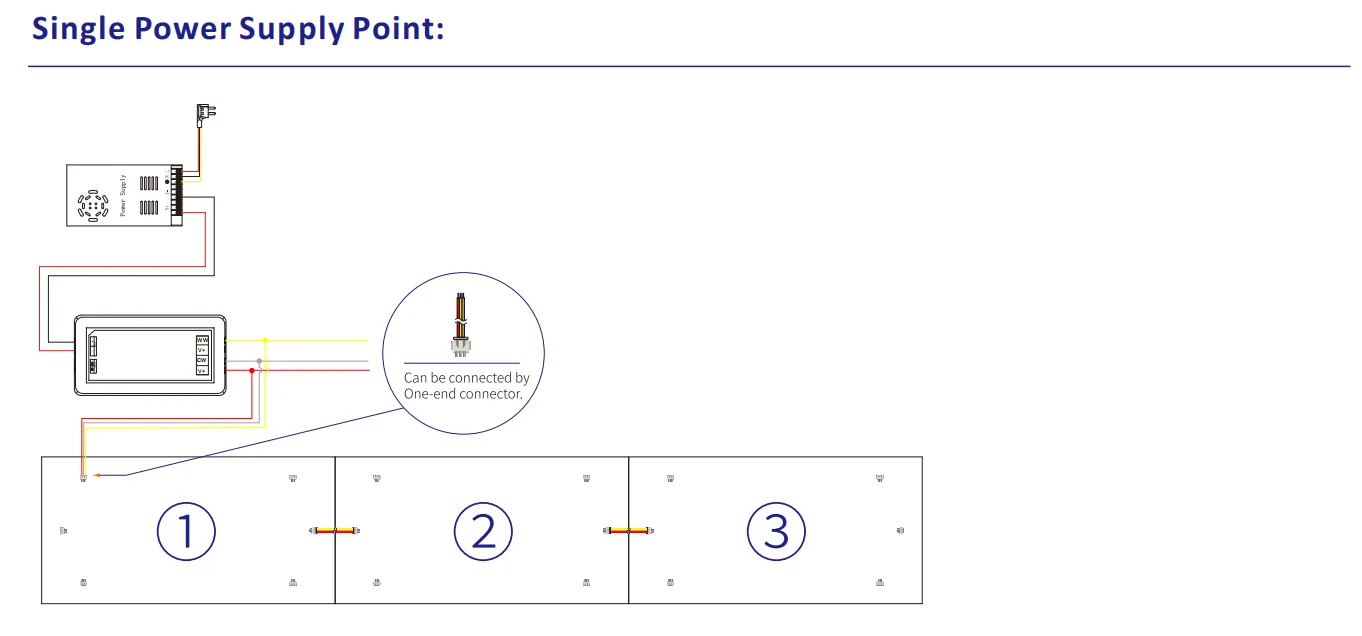

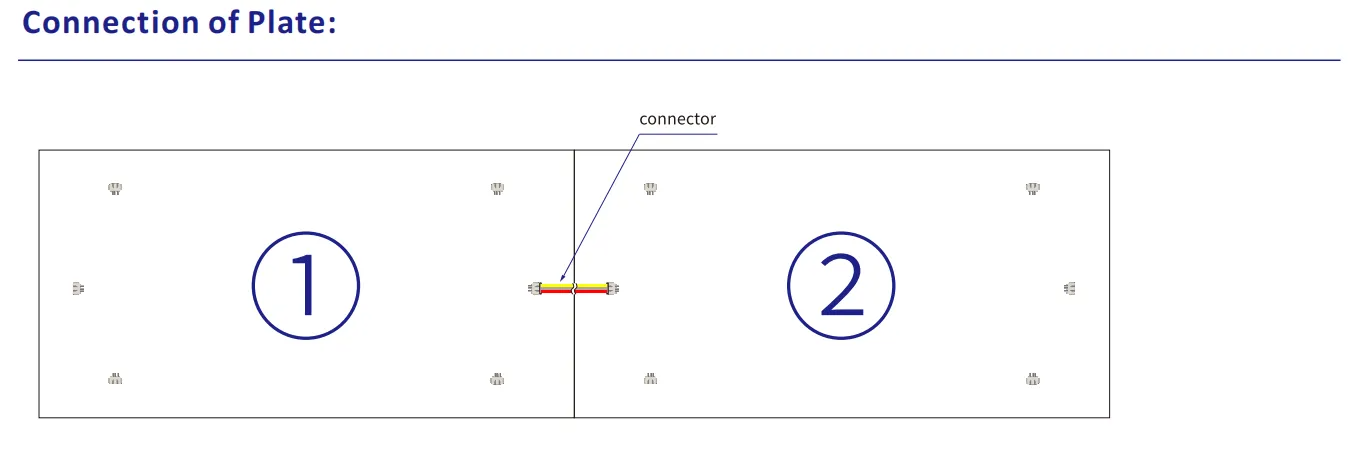

Connection of 576LED 12LEDs/cut 2835 dual white LED sheet

Model No: HR00-B24TW576P

576LED 12LEDs/cut 2835 dual white LED sheet

576LED/PCS, Ra90, 90W/M

Delivery :

EXW

minimum order :

5 pieces

Supply Ability :

600000pieces / Month

Stock Time :

7-12Day

Country of Origin :

Shenzhen

Quantity :

Download:

576LED 12LEDs cut 2835 dual white LED sheet.pdf

Contact Now

Product Description

Application Description

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.

Feature of 576LED 12LEDs/cut 2835 dual white LED sheet

576LED 12LEDs/cut 2835 dual white LED sheet for light box backlight

Main features:

Specification

Item	Specification	Item	Specification
Item Name	Dual white led sheet	Light Source	2835 White
LED QTY	576leds/PCS	CRI	90
Color	3000-6500K	Voltage	DC24V
Working T	-20 to 45 Degree	Power	90W/M
PCB Color	White	Beam Angle	120°
IP Rating	IP20	Brightness	9000lm/PCS
Package	Anti-Static Bag	OEM&ODM	Available
Dimension	480mm*240mm	Lifetime	50000hrs
Certificate	ETL, CE, RoHS, Reach...	Warranty	3years
