Shenzhen Risun Lighting CO., LTD
| Item Name | SK6812 Led Strip | LED Light Source | SMD5050 |
| LED Chip | Epistar/Sanan | LED Quantity | 60,96, 144 LEDs/m |
| Input Voltage(V) | DC5V | Power | 14.4/19.2/28.8W/m |
| CRI | 90 | IC Type | SK6812 |
| IP Rating | IP20/IP67/IP68 | PCB Color | White/Black |
| Working Temperature(℃) | -25 - 60 | OEM&ODM | Available |
| Lifespan (hours) | 50000 | Package | 5M/Reel |
| Lamp Body Material | Copper | Warranty(Year) | 3Years |
| PCB Width | 10/12mm | Available Color | RGB/RGBW |

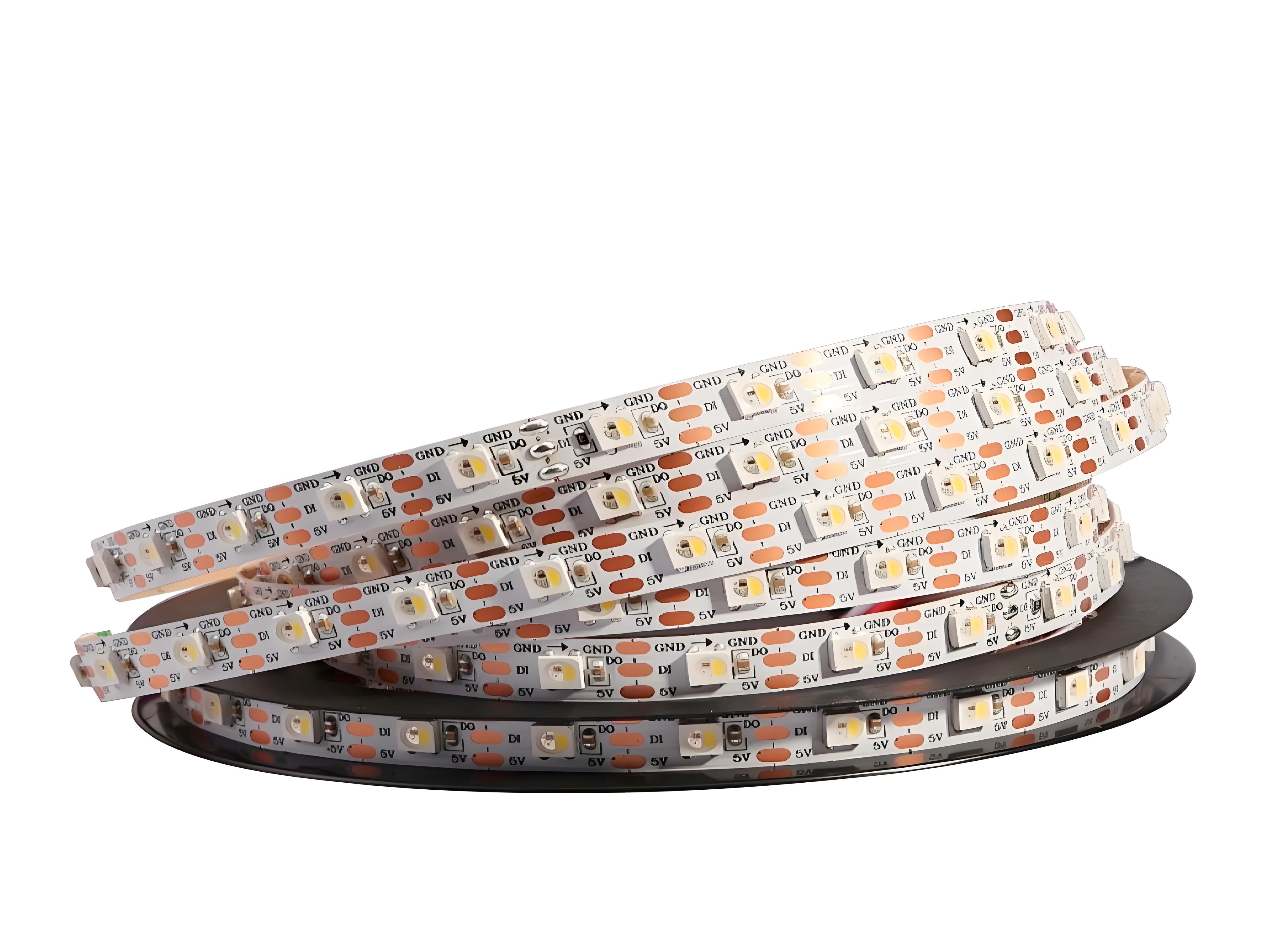

SK6812 led strip:
1. Individually addressable RGBW function, more abundant in color control
2. Original SK6812 RGBW 5V IC, 256 gray scales, high brightness, fast data transfer, fast screen refresh, etc.,

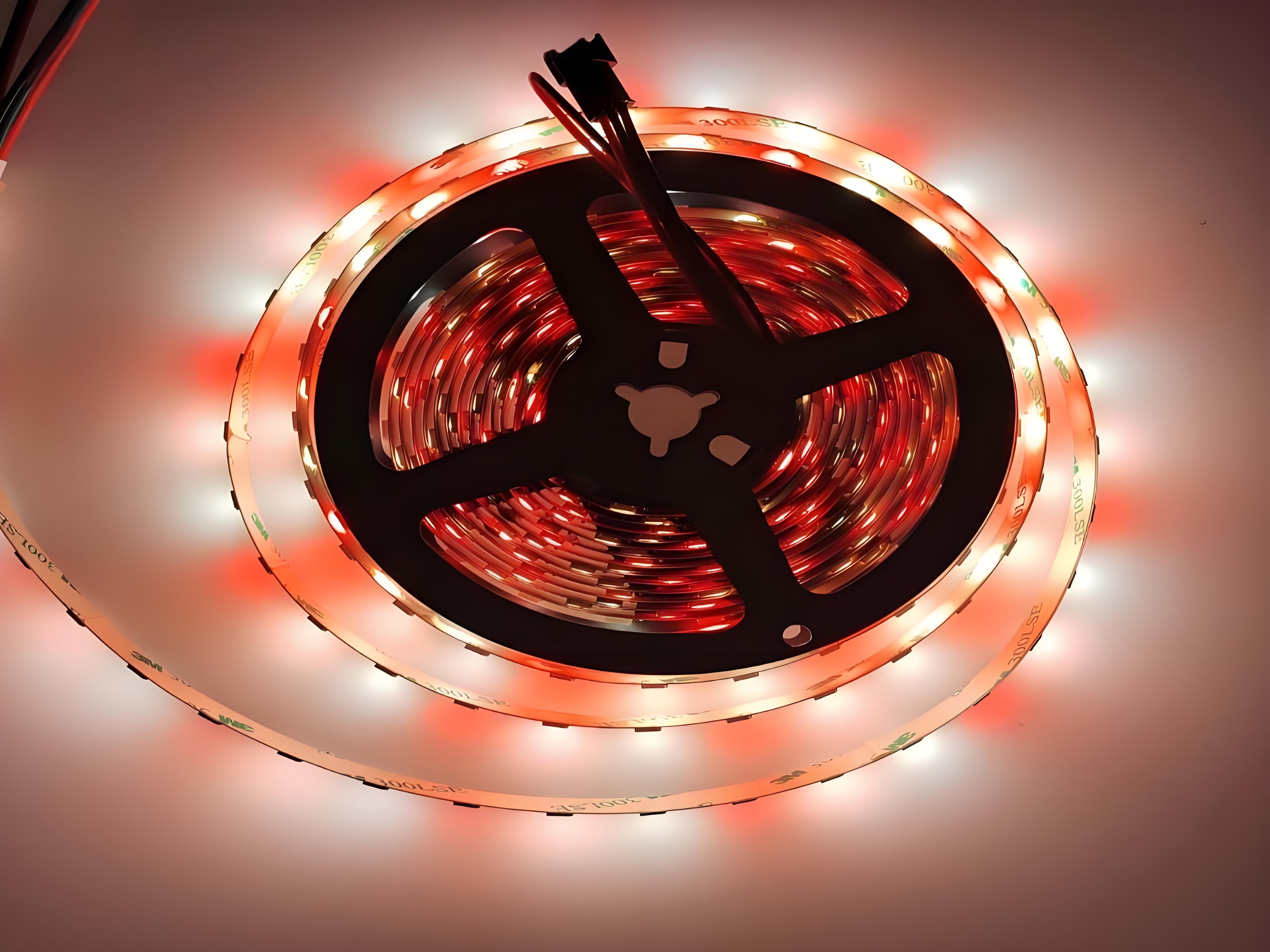

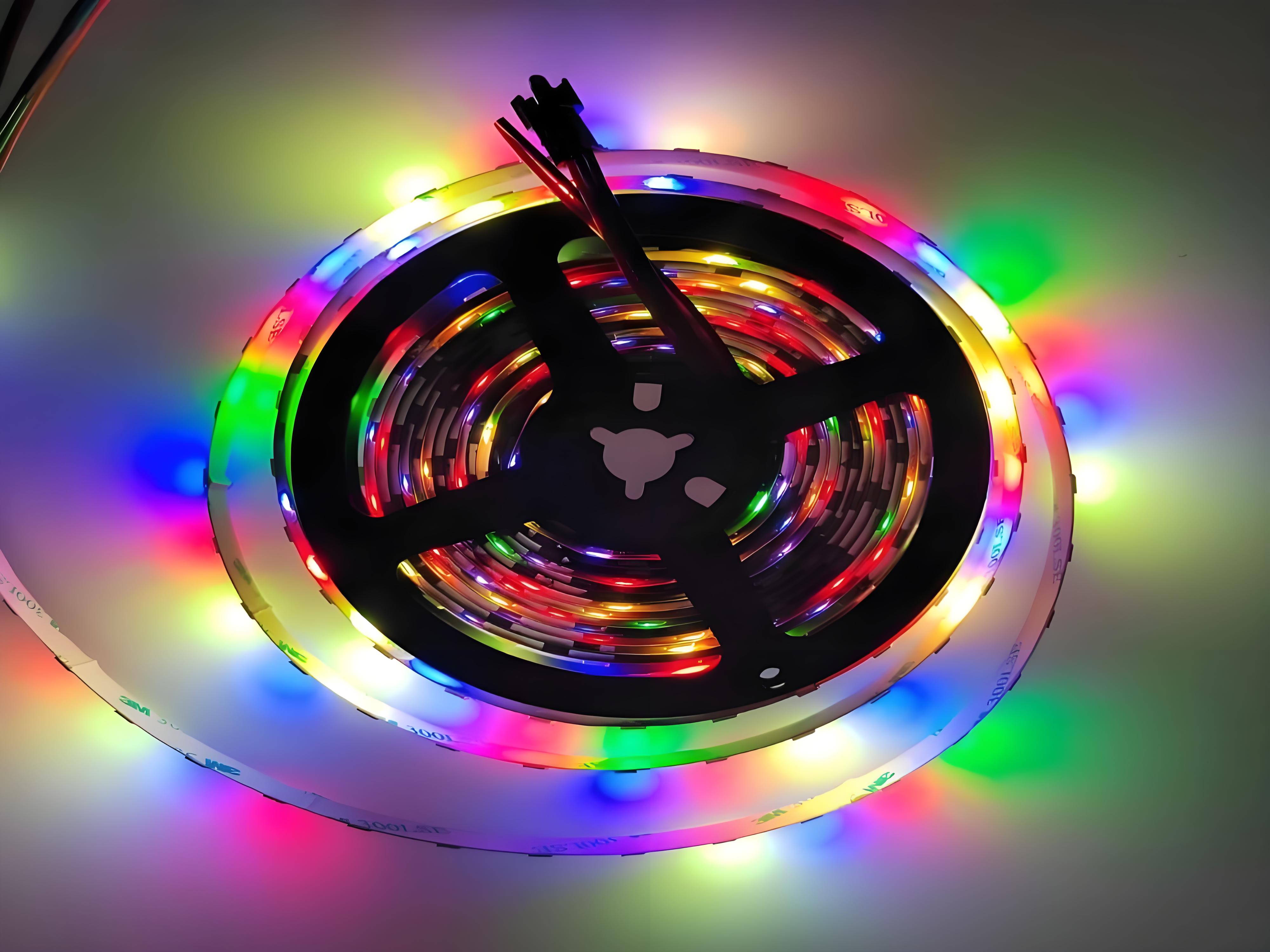

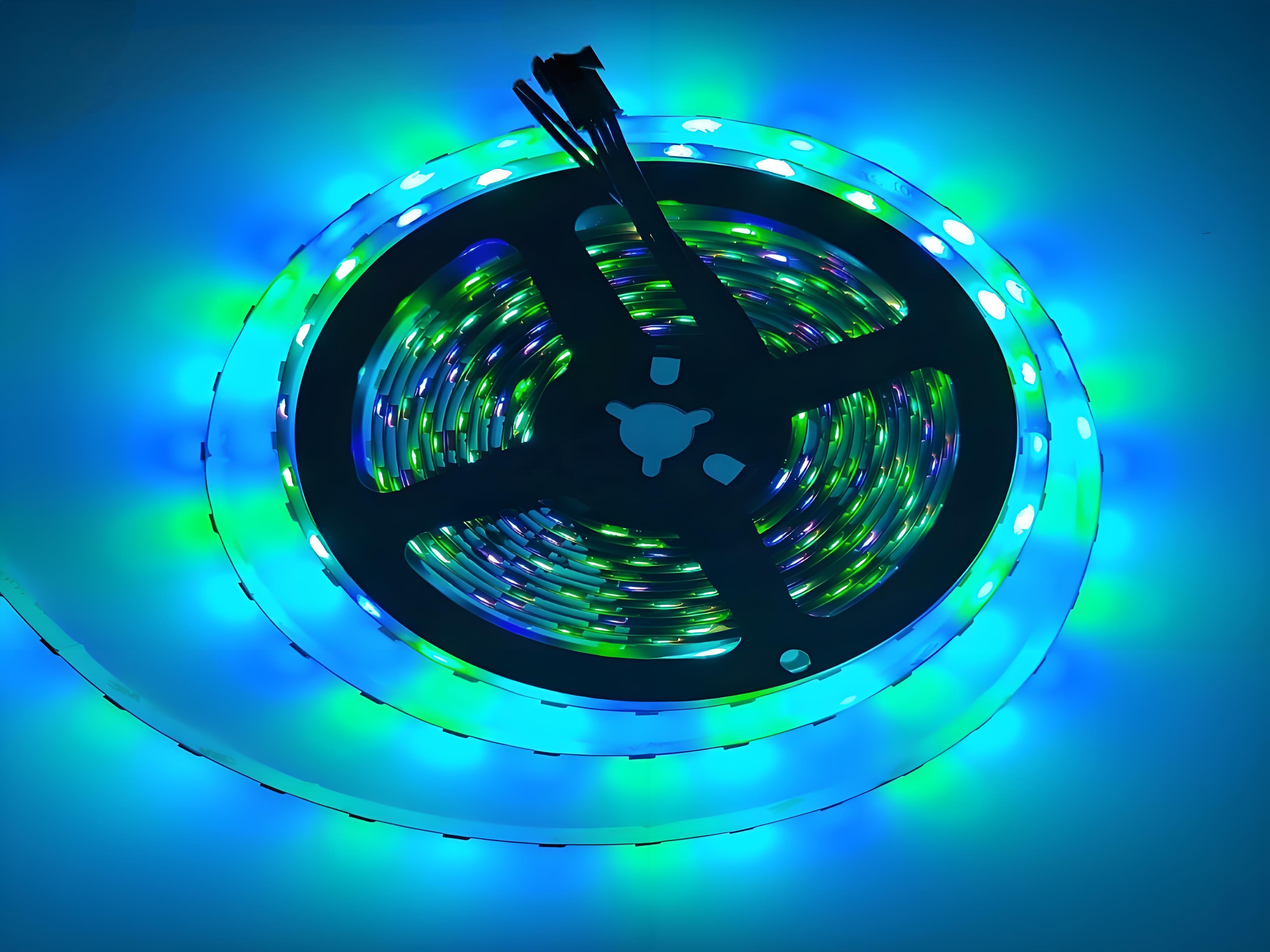

3. Colorful light effects like monochrome, gradient, water, horse racing, text, numbers, chase, English, pictures, animations, video, etc.
4. Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per se
5. Strong flexible for heat dissipation and real 3M tape for a strong installation
| No. | Details |

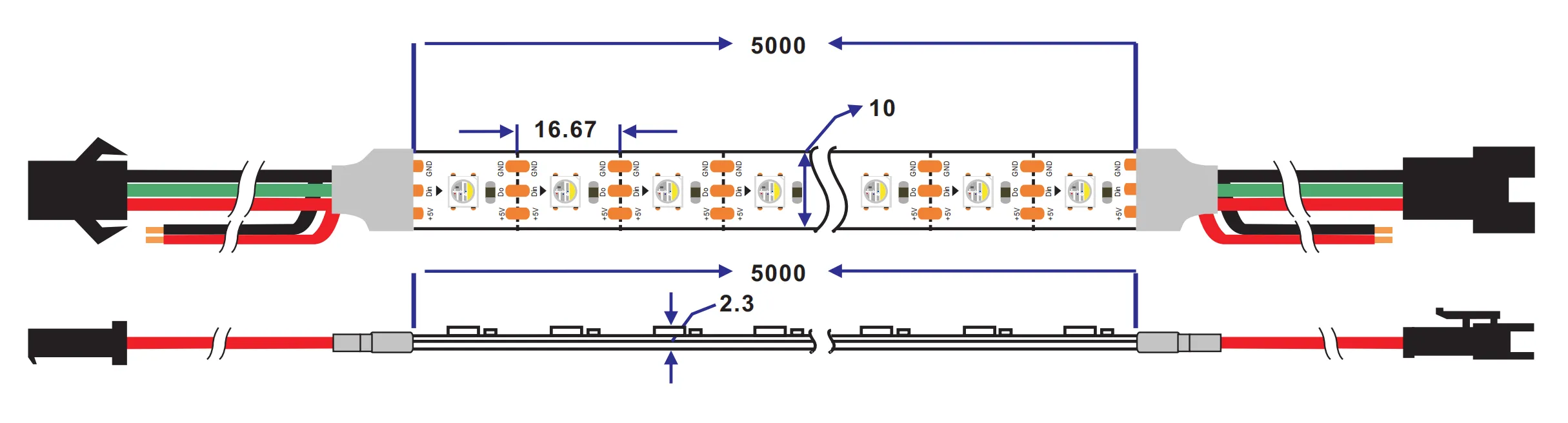

| 5V-60L-60LED RGB 5050 lamp beads with built-in IC | 1, lamp bead model: 5050RGB 2, IC model: SK6812 3, IC quantity: 60 PCS /m 4, the number of lamp beads: 60 leds/m 5, voltage:DC5V 6, power :14.4 W /m 7, board color: black and white 8, lamp bead color: white, black2 |

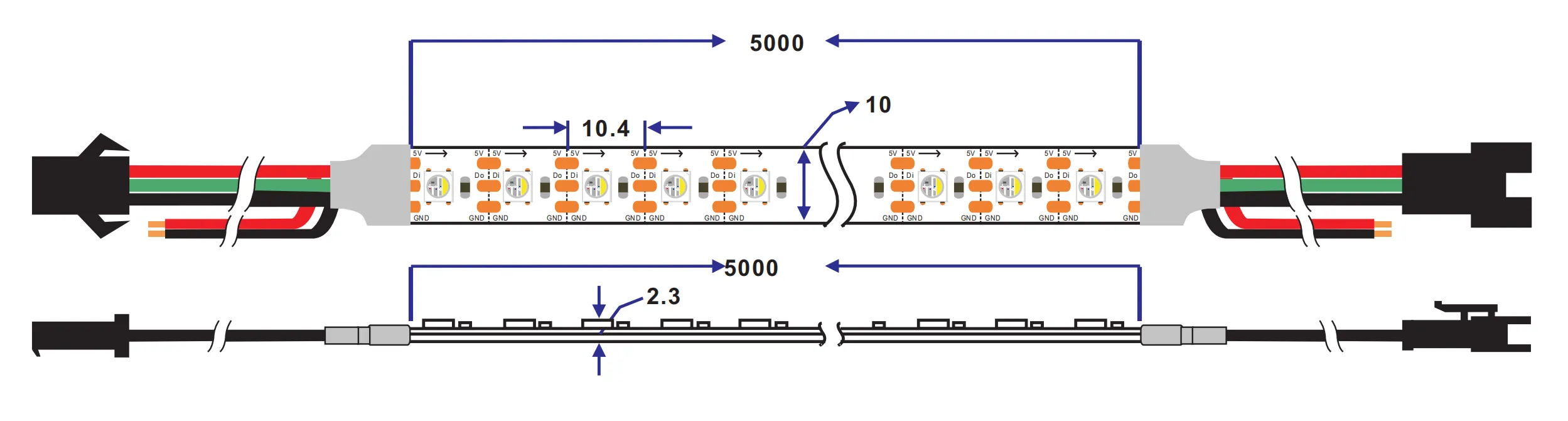

| 5V-96L-96LED RGB 5050 lamp beads with built-in IC | 1, lamp bead model: 5050RGB 2, IC model: SK6812 3, IC quantity: 96 PCS /m 4, the number of lamp beads: 96leds /m 5,voltage: DC5V 6, power :19.2W /m 7, board color: black and white 8, lamp bead color: white, black |

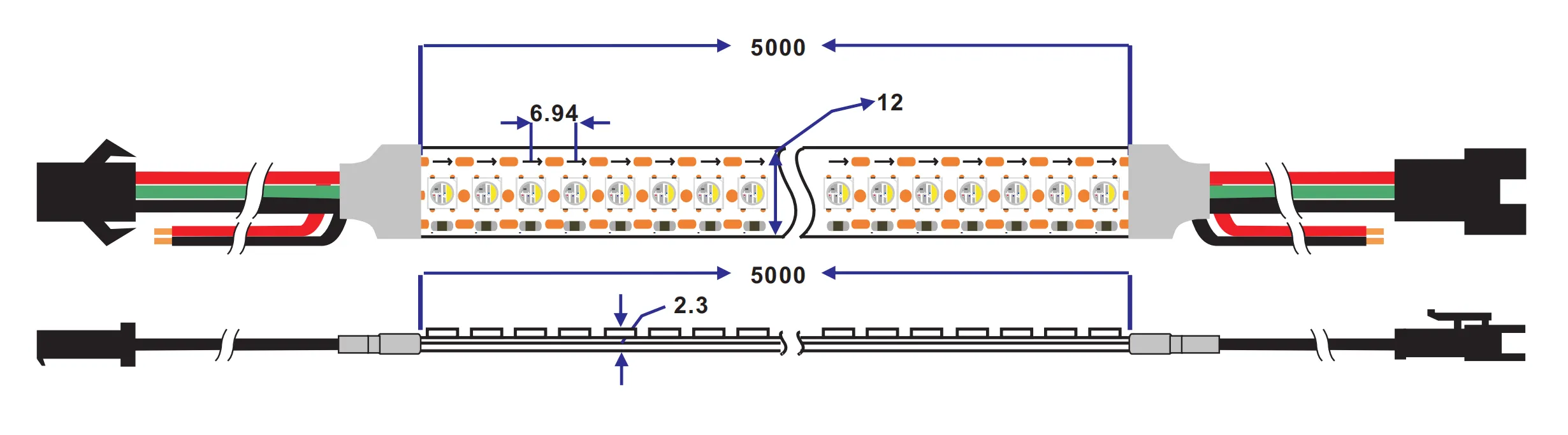

| 5V-144L144LED 5050 lamp beads with built-in IC | 1, lamp bead model: 5050RGB 2, IC model: SK6812 3, IC quantity: 144 PCS /m 4, the number of lamp beads: 144leds/m 5,voltage: DC5V 6, power: 28.8W /m 7, board color: black and white 8, lamp bead color: white, black |
IP Rating
Application
