Shenzhen Risun Lighting CO., LTD
| Item Name | WS2815 Led Strip | LED Light Source | SMD5050 |
| LED Chip | Epistar/Sanan | LED Quantity | 30, 60,96, 144 LEDs/m |
| Input Voltage(V) | DC12V | Power | 7.2/14.4/18/28W/m |
| CRI | 90 | IC Type | WS2812 SK6812 |
| IP Rating | IP20/IP67/IP68 | PCB Color | White/Black |
| Working Temperature(℃) | -25 - 60 | OEM&ODM | Available |
| Lifespan (hours) | 50000 | Package | 5M/Reel |
| Lamp Body Material | Copper | Warranty(Year) | 3Years |
| PCB Width | 10/12mm | Available Color | RGB/RGBW |

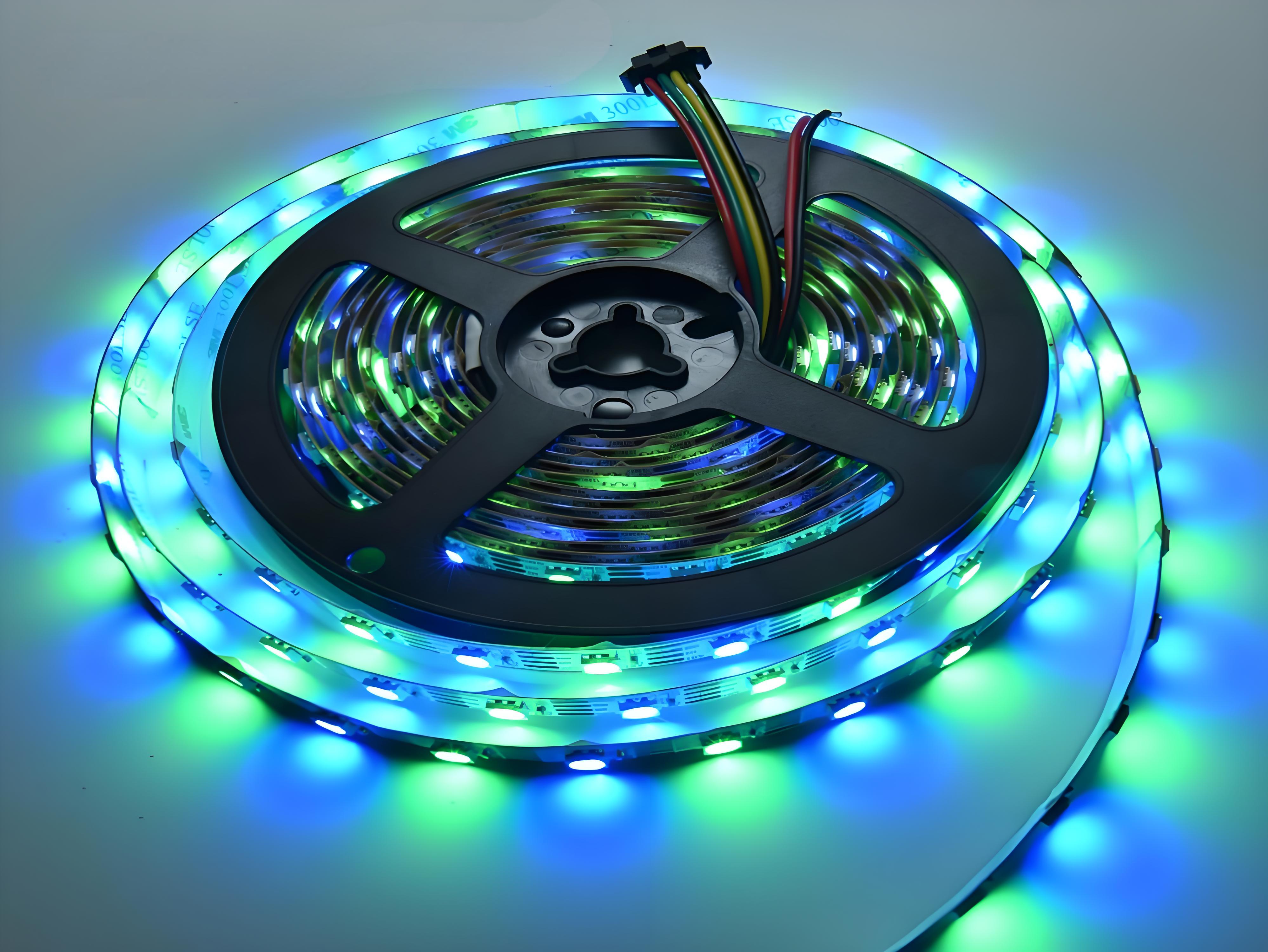

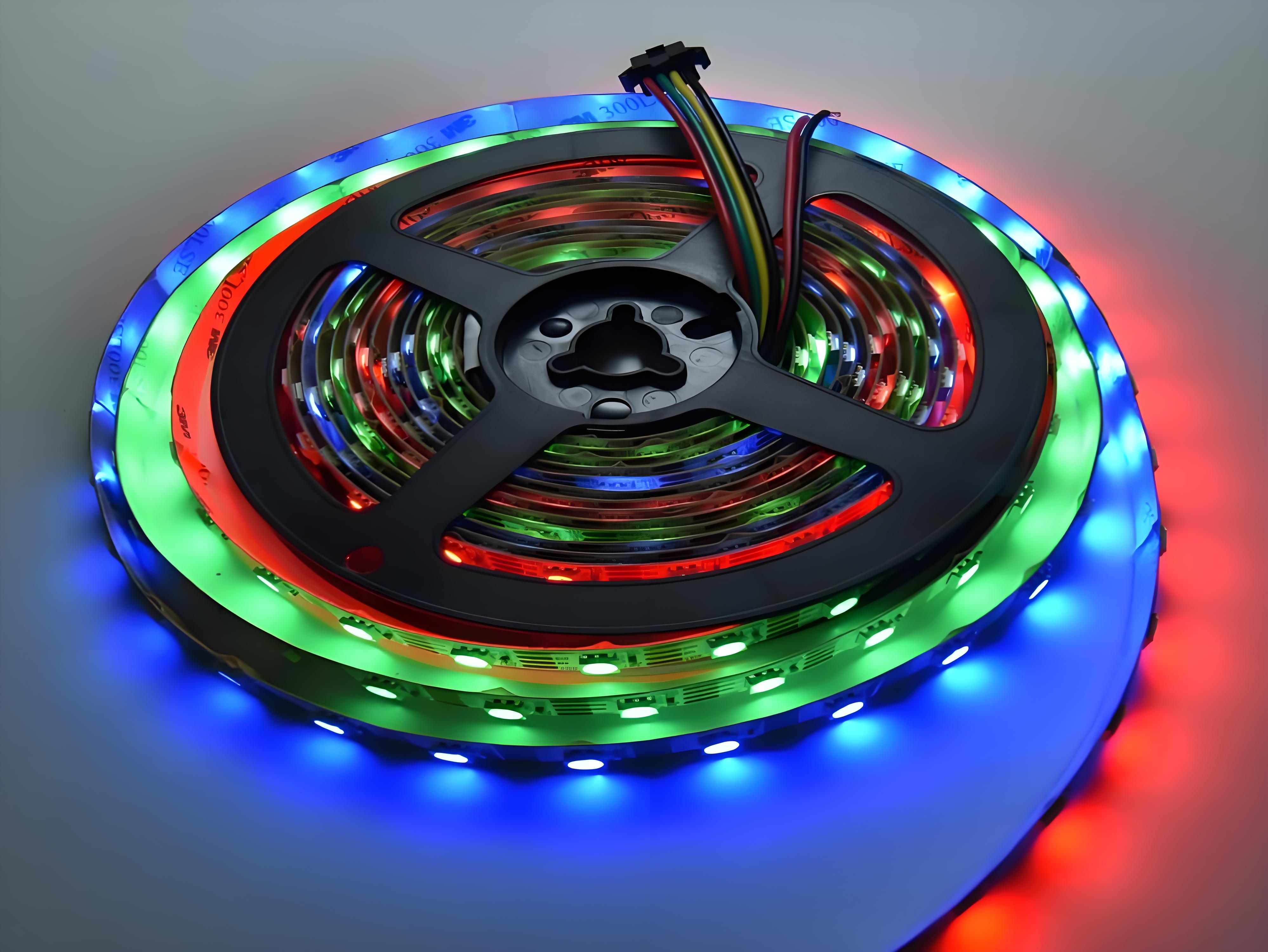

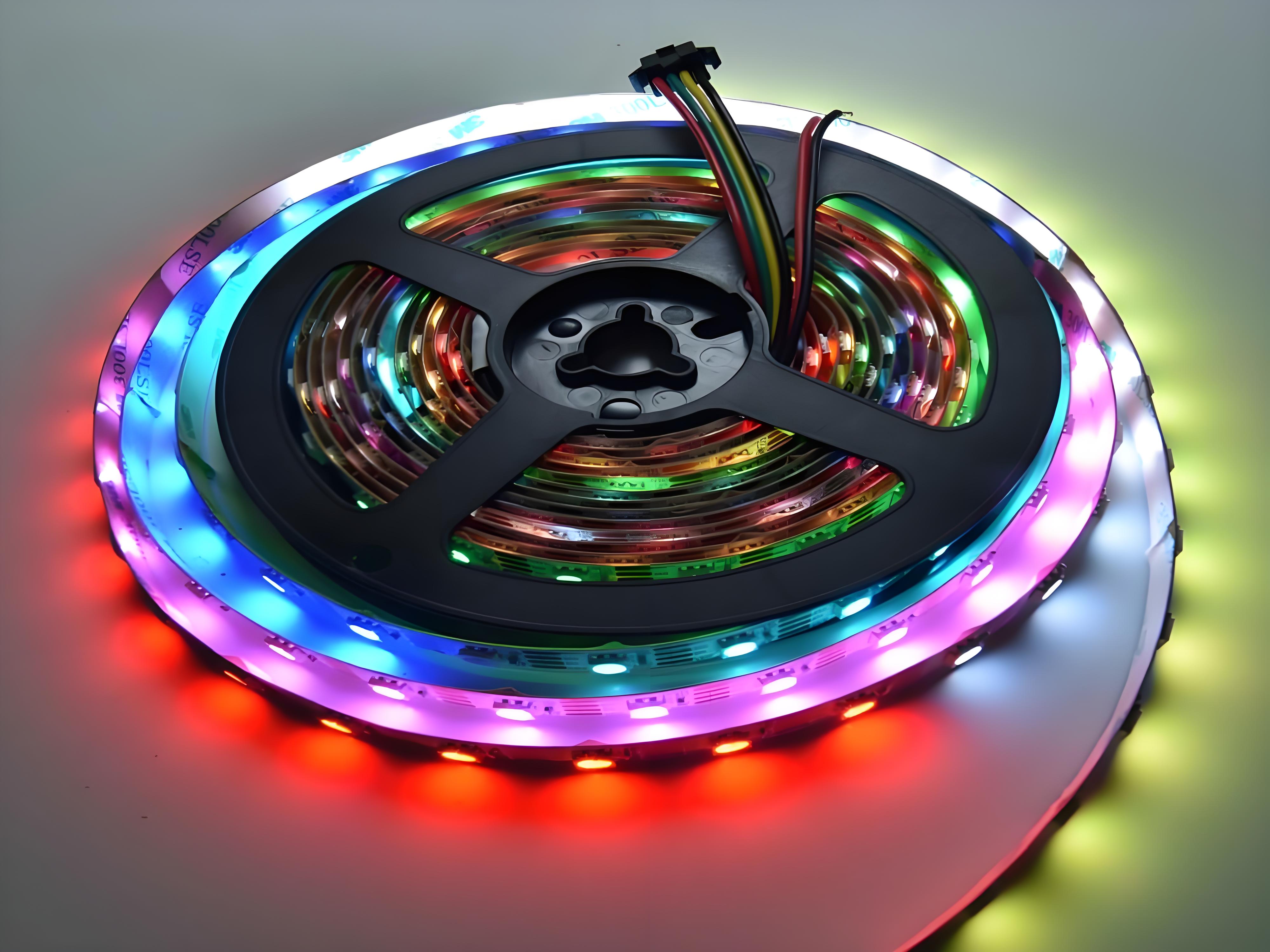

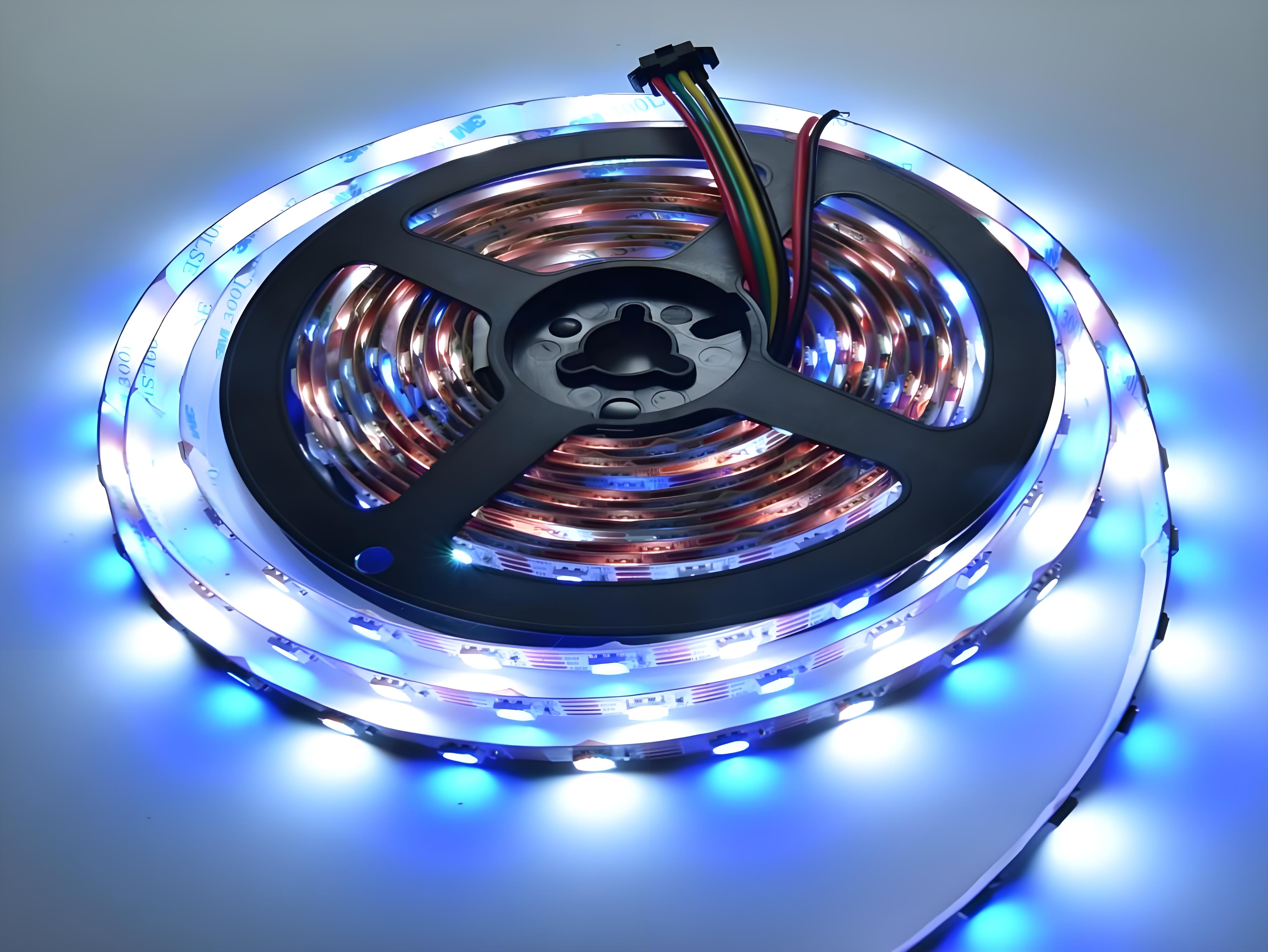

WS2815/SK6813 led strip:
1. One of the most popular pixel led strip in the market
2. Original WS2815 or SK6813 IC, 256 gray scales, high brightness, fast data transfer, fast screen refresh, etc.,
3. Colorful light effects like monochrome, gradient, water, horse racing, text, numbers, chase, English, pictures, animations, video, etc.
4. DC5V design with 1led/cut, individually addressable, more flexible in software control
5. Strong flexible for heat dissipation and real 3M tape for a strong installation
| No. | Details |
| 12V-30L-30LED RGB 5050Lamp bead built-in IC | 1, lamp bead model: 5050RGB 2, IC model: SK6813,WS2815 3, IC quantity: 30 PCS /m 4, the number of lamp beads: 30 leds /m 5,voltage: DC12V 6, power :7.2W /m 7, board color: black and white 8, lamp bead color: white, black |
| 12V-60L-60LED RGB 5050 lamp beads with built-in IC | 1, lamp bead model: 5050RGB 2, IC model: SK6813,WS2815 3, IC quantity: 60 PCS /m 4, the number of lamp beads: 60 leds/m 5, voltage:DC12V 6, power :14.4 W /m 7, board color: black and white 8, lamp bead color: white, black |
| 12V-96L-96LED RGB 5050 lamp beads with built-in IC | 1, lamp bead model: 5050RGB 2, IC model: SK6813, WS2815 3, IC quantity: 96 PCS /m 4, the number of lamp beads: 96leds /m 5,voltage: DC12V 6, power :18W /m 7, board color: black and white 8, lamp bead color: white, black |
| 12V-144L144LED 5050 lamp beads with built-in IC | 1, lamp bead model: 5050RGB 2, IC model: SK6813,WS2815 3, IC quantity: 144 PCS /m 4, the number of lamp beads: 144leds/m 5,voltage: DC12V 6, power: 28W /m 7, board color: black and white 8, lamp bead color: white, black |
IP Rating
Application
