Shenzhen Risun Lighting CO., LTD
COB（Chips on Board） means that the chip is directly packaged on the PCB.
Cob led strip is a series of led strip which encapsulates the chip on the flexible board, and then a layer of packaging glue mixed with phosphor powder is directly dropped on the surface of the chip.
The light emitted by the chip is refracted, reflected in the encapsulation colloid, and interacts with the phosphor powder. The colloid evenly emits light of different colors and color temperatures.
Specification 420LED/M pixel COB RGB led strip
| Item Name | COB RGB Led Strip | LED Light Source | COB pixel RGB |
| LED Chip | Epistar/Sanan | LED Quantity | 420LEDs/m |
| Input Voltage(V) | DC24V | Power | 13.5W/m |
| CRI | 90 | Cutting length | 10cm |
| IP Rating | IP20/IP67/IP68 | PCB Color | White/Black |
| Working Temperature(℃) | -25 - 60 | OEM&ODM | Available |
| Lifespan (hours) | 50000 | Package | 5M/Reel |
| Lamp Body Material | Copper | Warranty(Year) | 3Years |
| PCB Width | 10mm | Available Color | RGB |

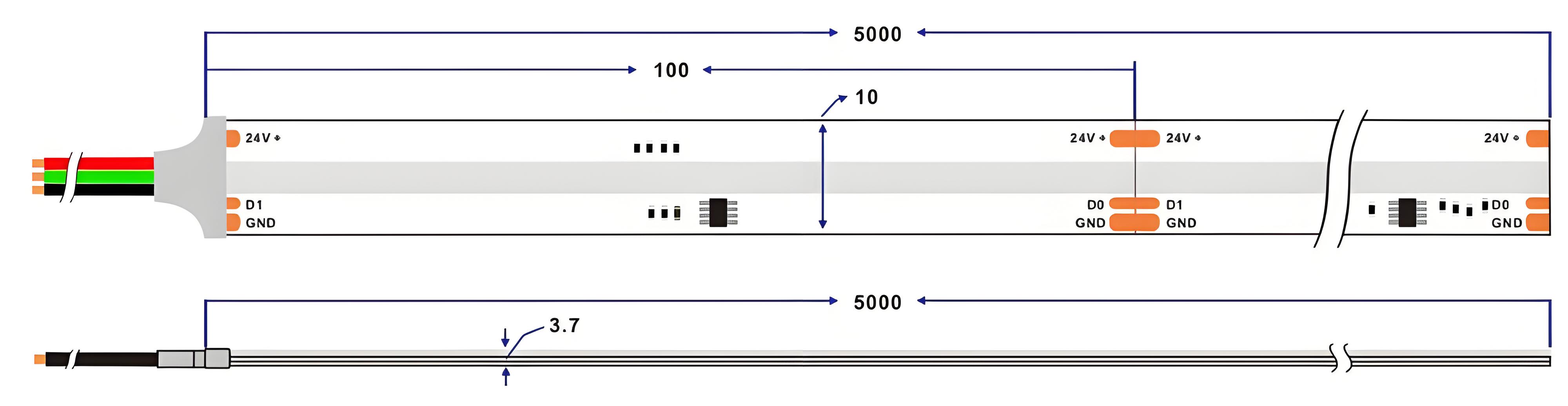

Dimension(mm)

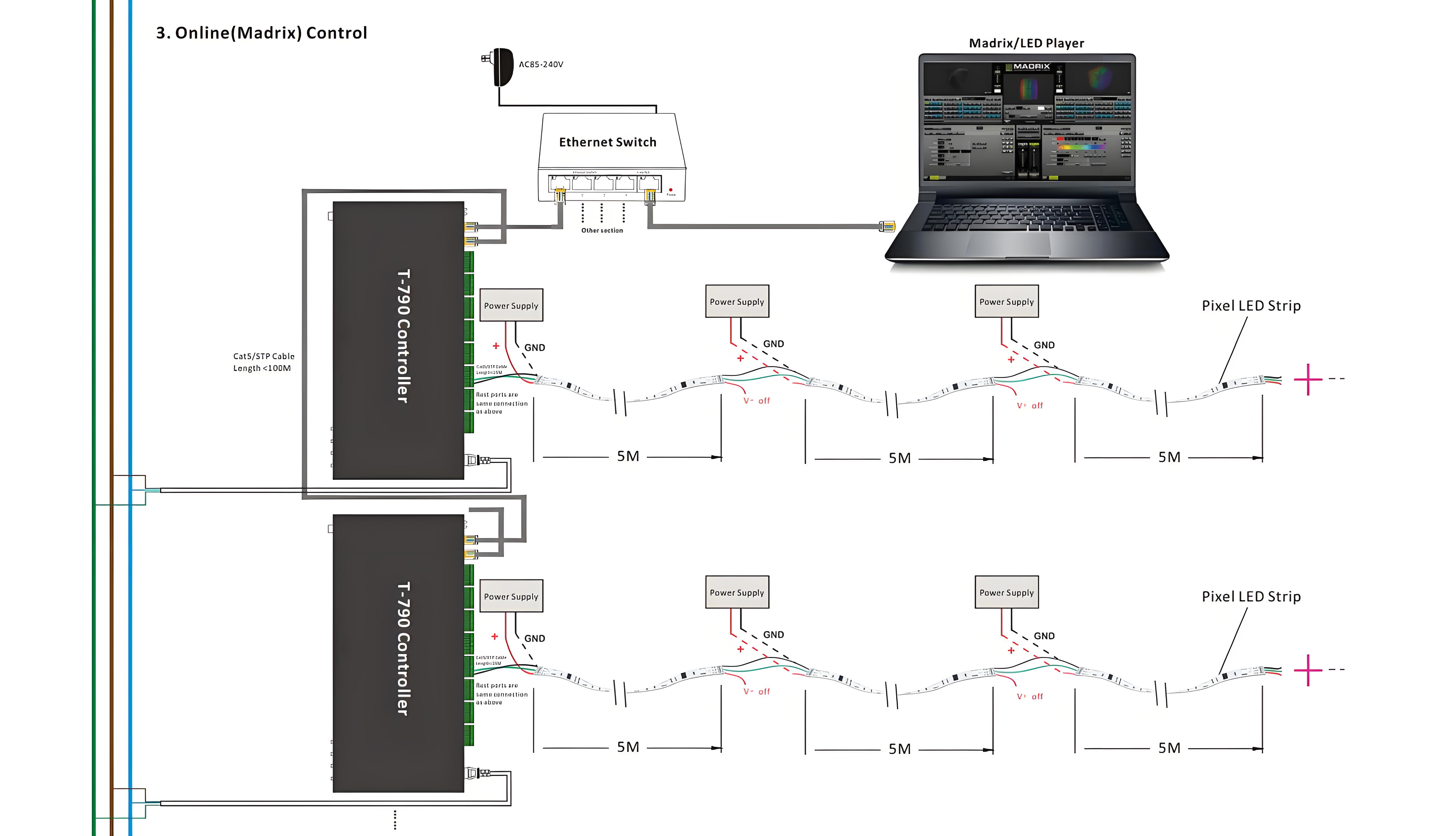

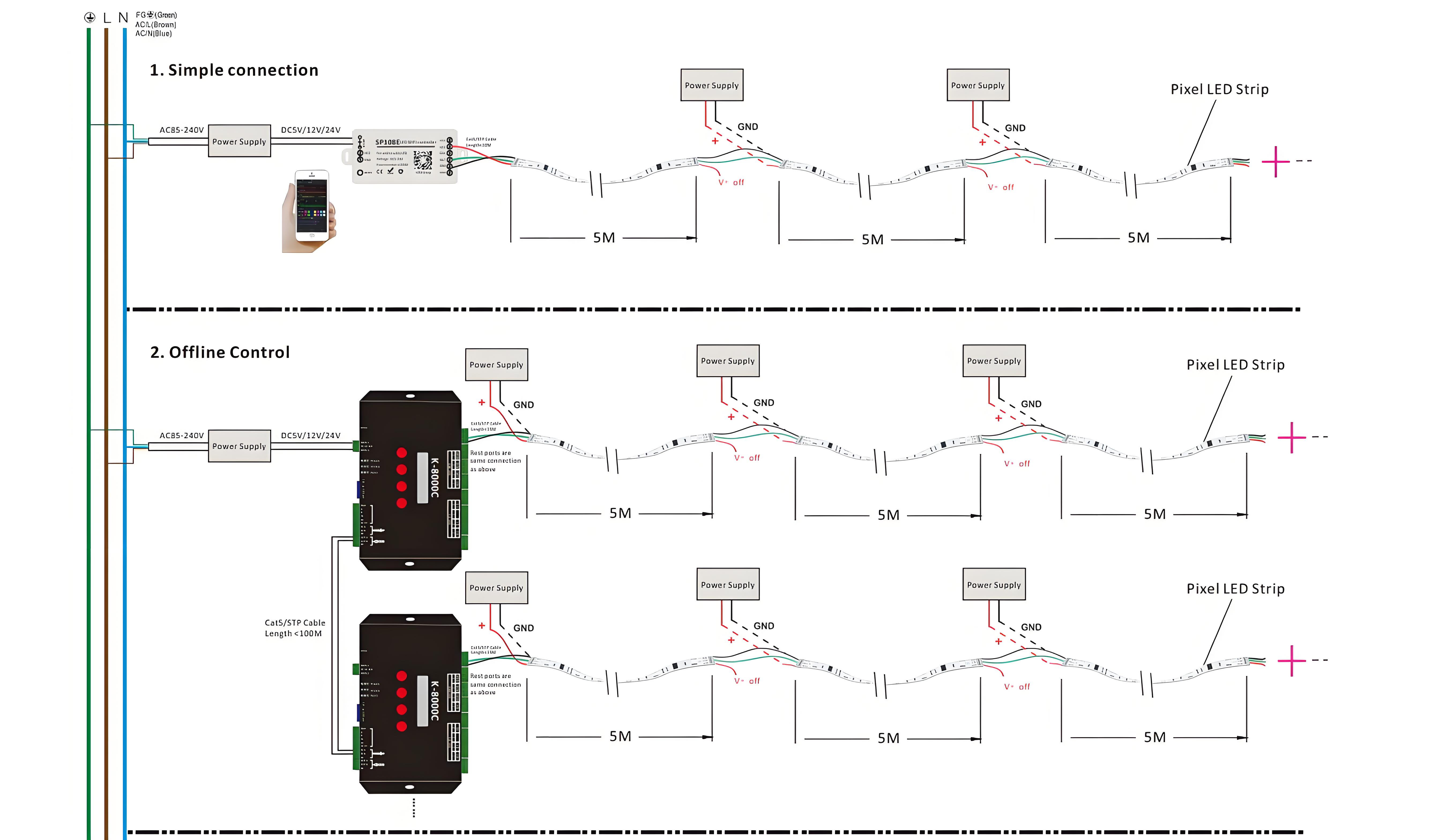

Installation of 10mm 420LED/M pixel COB RGB led strip
