White LED strip is a kind of strip light that is connected in series or parallel by multiple white LED beads and precisely mounted on the PCB flexible board, which can emit white light evenly. The color of white light varies according to the color temperature, usually the color temperature range of white light is between 2700K and 6500K, which meets different lighting needs.

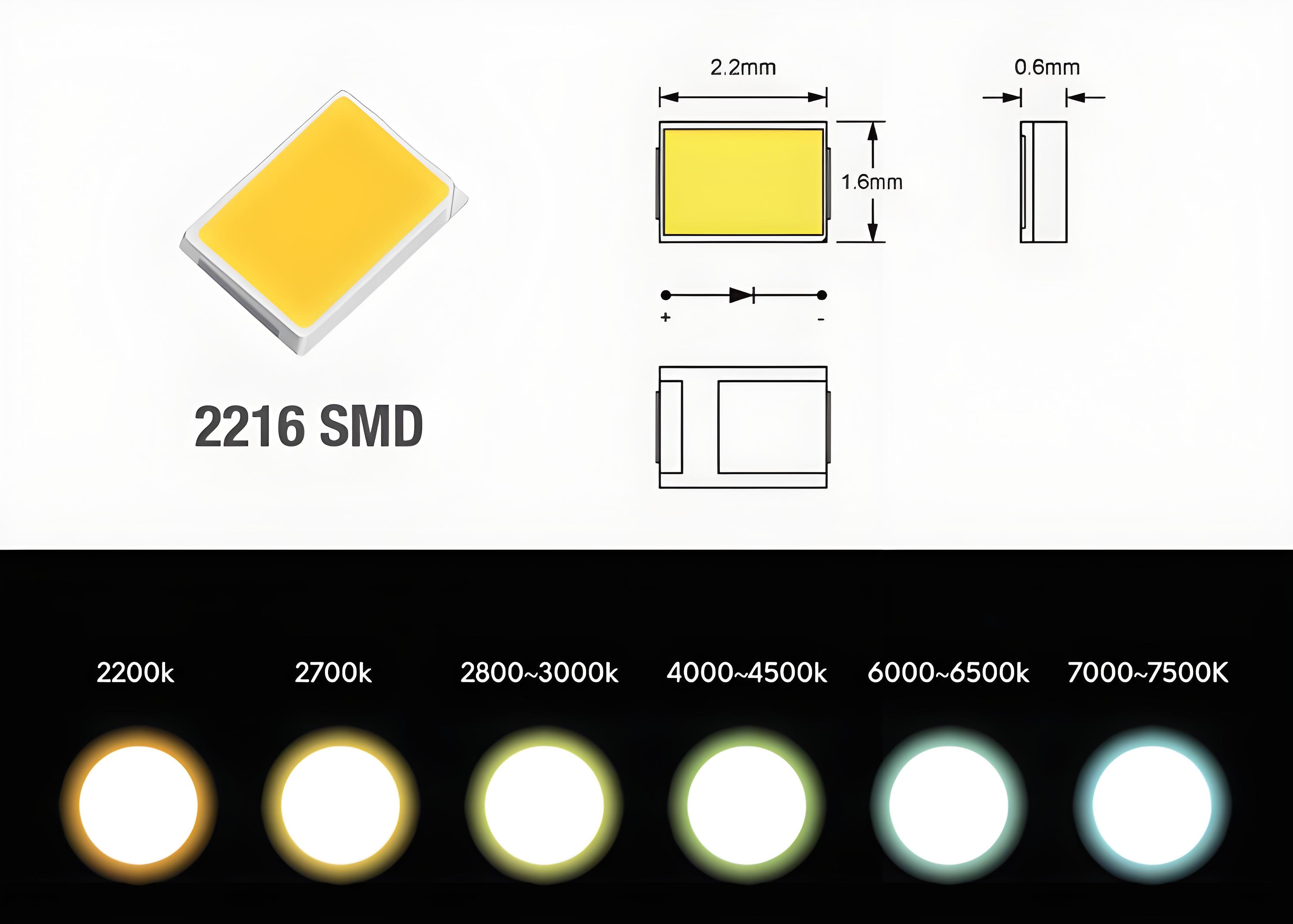

2216 LED strip light uses 2216 SMD (Surface Mounted Device) LEDs, where "2216" refers to the size of the LED chip, measuring 2.2mm x 1.6mm.
These LEDs are very small and are designed to provide high-density, uniform illumination with minimal gaps between individual LEDs.
The 2216 LED strip is known for its high color rendering index (CRI) and consistent light output.

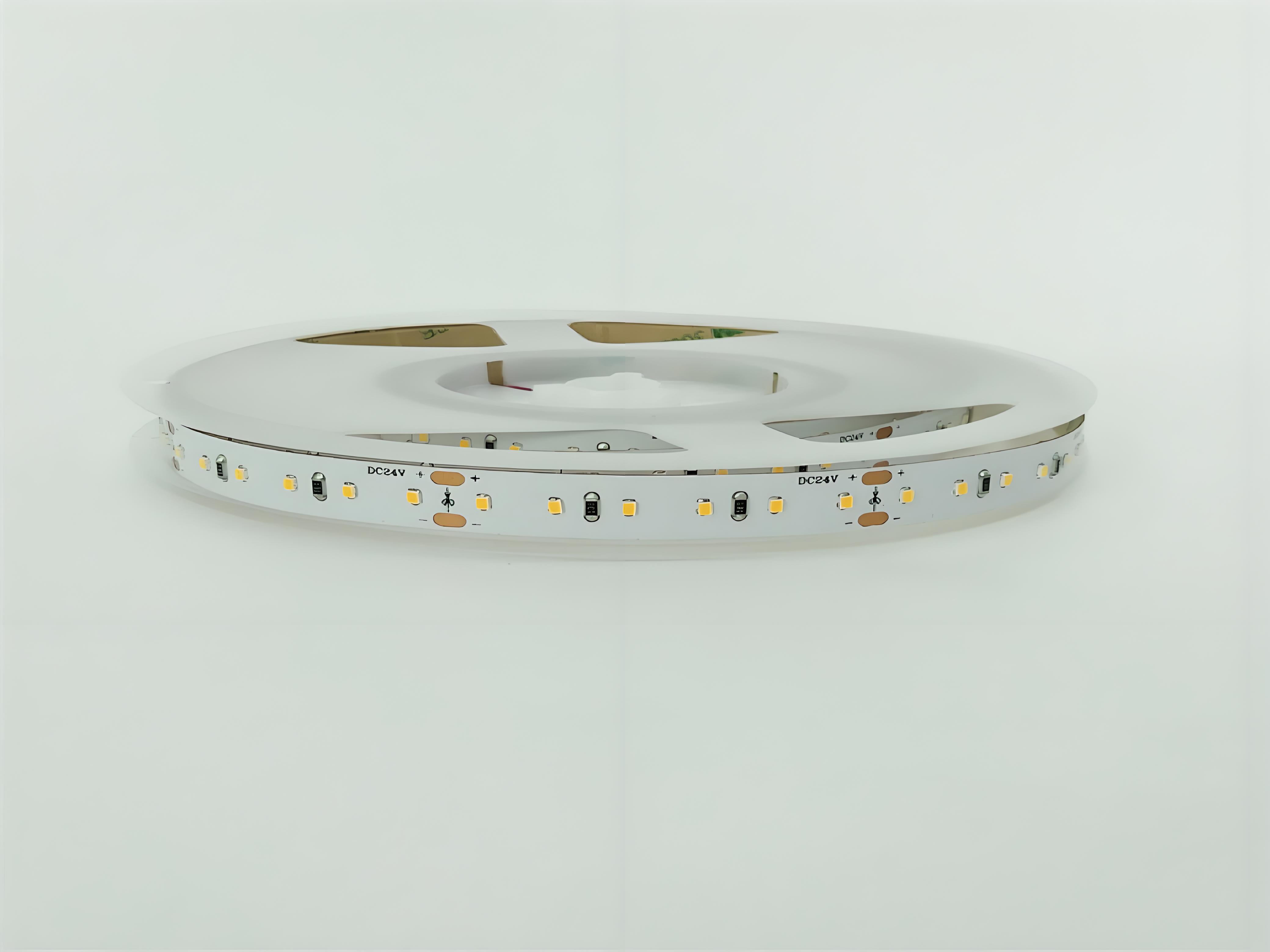

Feature of 2216 120LED/M led strip
Item Name | SMD2216 led strip | LED Light Source | SMD2116 |
LED Chip | Epistar/Sanan | LED Quantity | 120LEDs/m |
Input Voltage(V) | DC24V | Power | 10W/m |
IP Rating | IP20/67/IP68 | PCB Color | White/Black/Yellow |
Working Temperature(℃) | -25 -45 | CRI | 90/95 |
Lifespan (hours) | 50000 | Cutting unit | 2.5cm(12V); 5cm(24V) |
Lamp Body Material | Copper | Warranty(Year) | 3Years |
Dimension | 5000mm*10mm | Available Color | 2700-6500K |
Certificate | ETL,CE,RoHS,BIS etc. | OEM&ODM | Available |

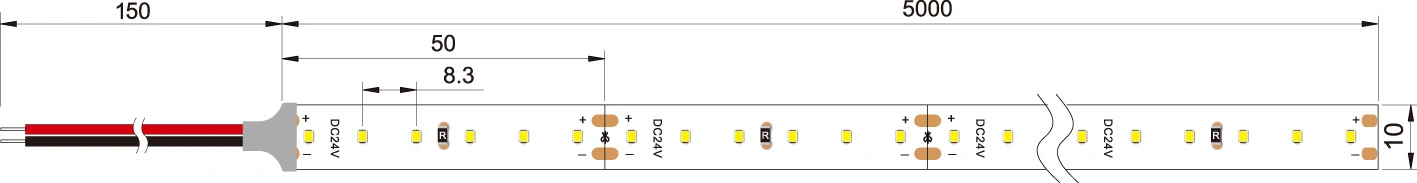

Dimension (mm)

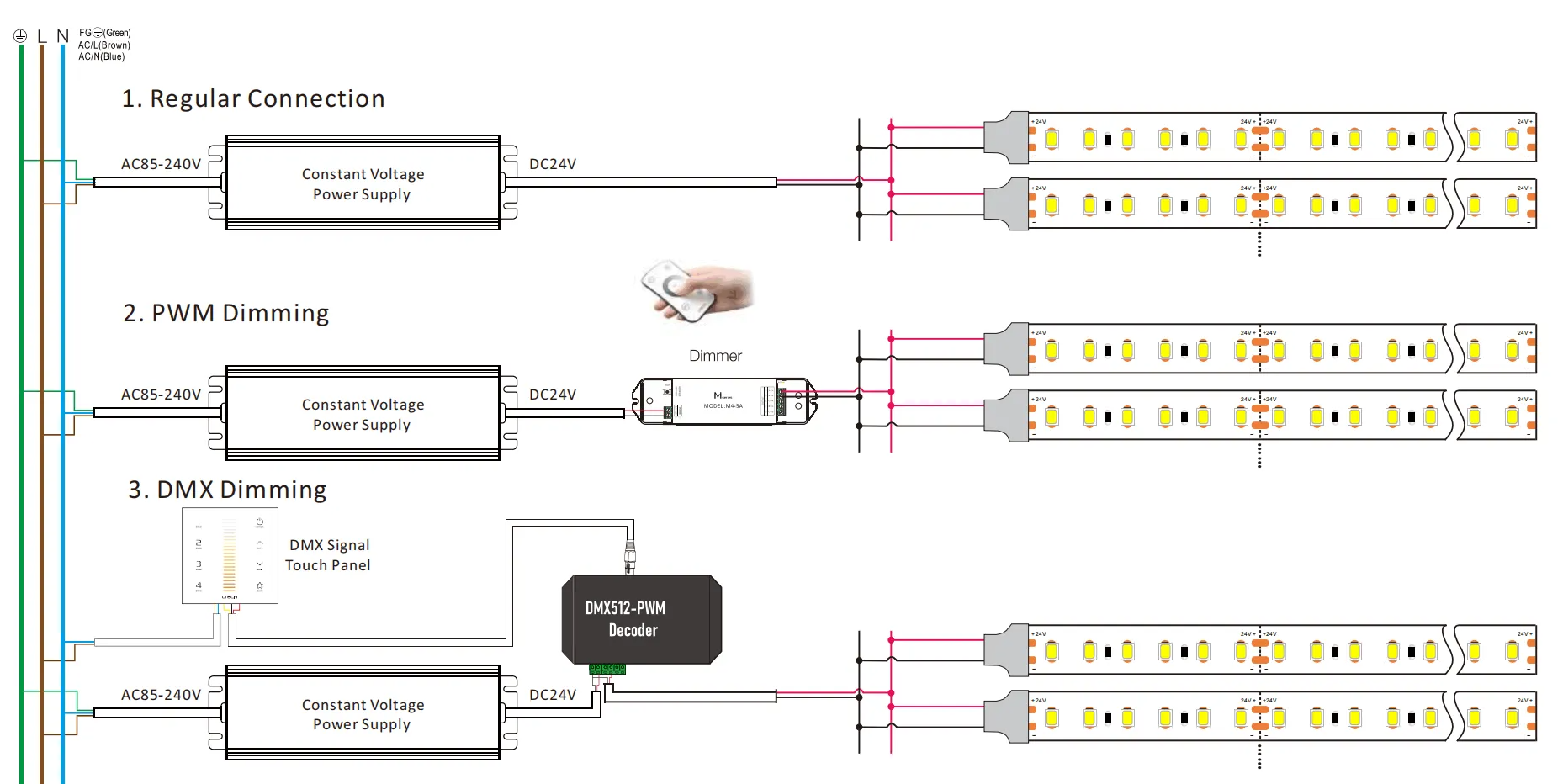

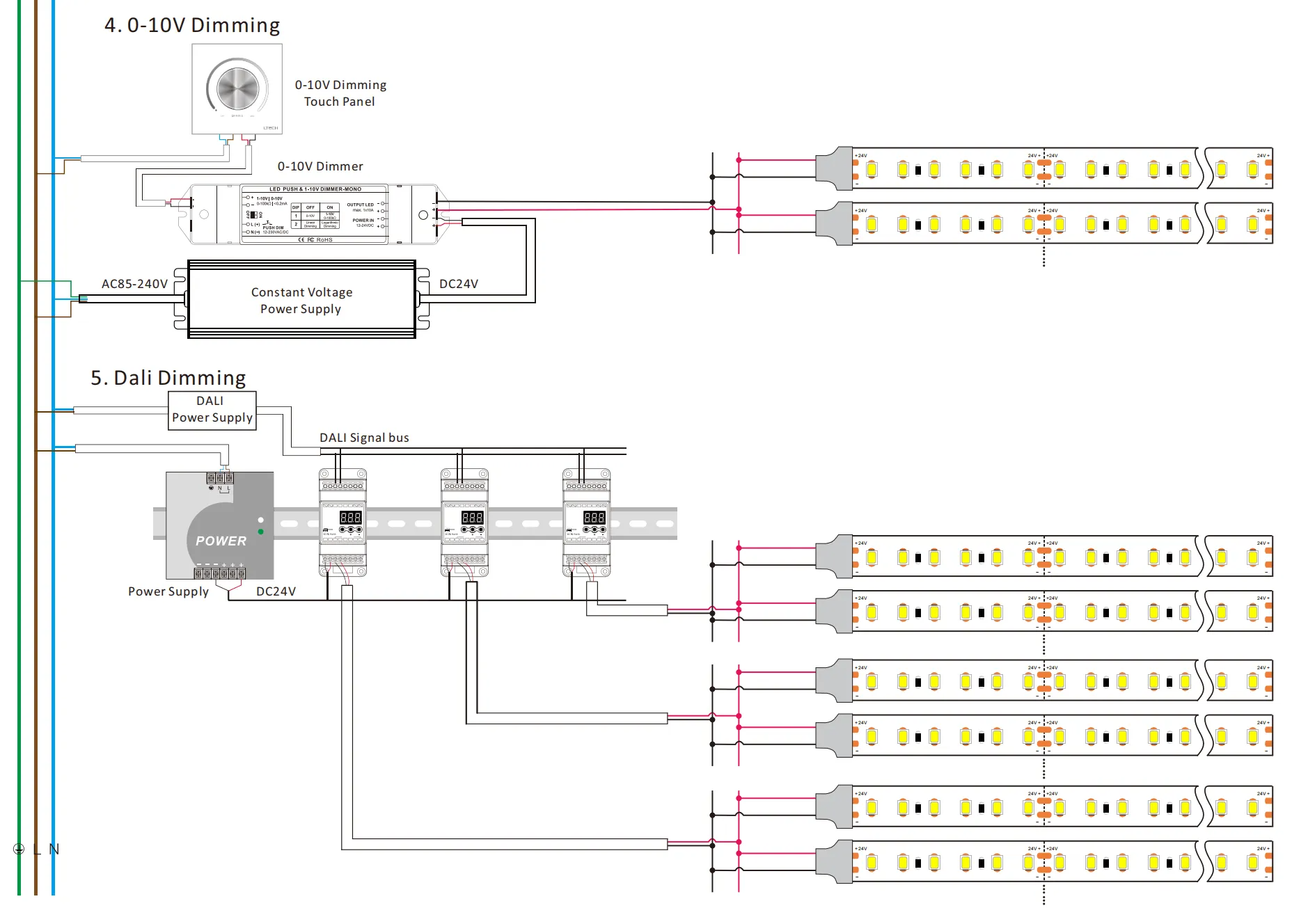

Connection of 2216 120LED/M led strip

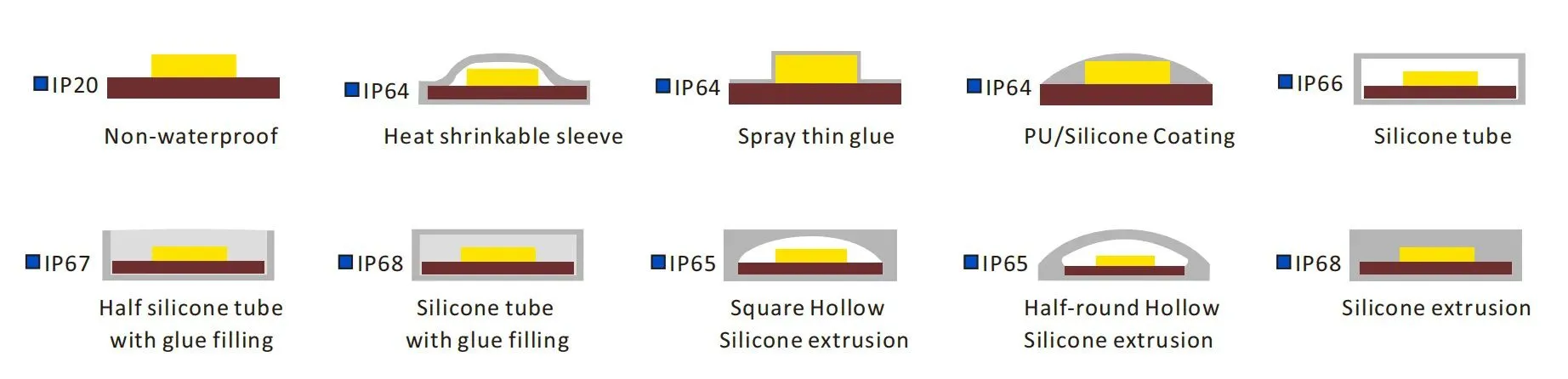

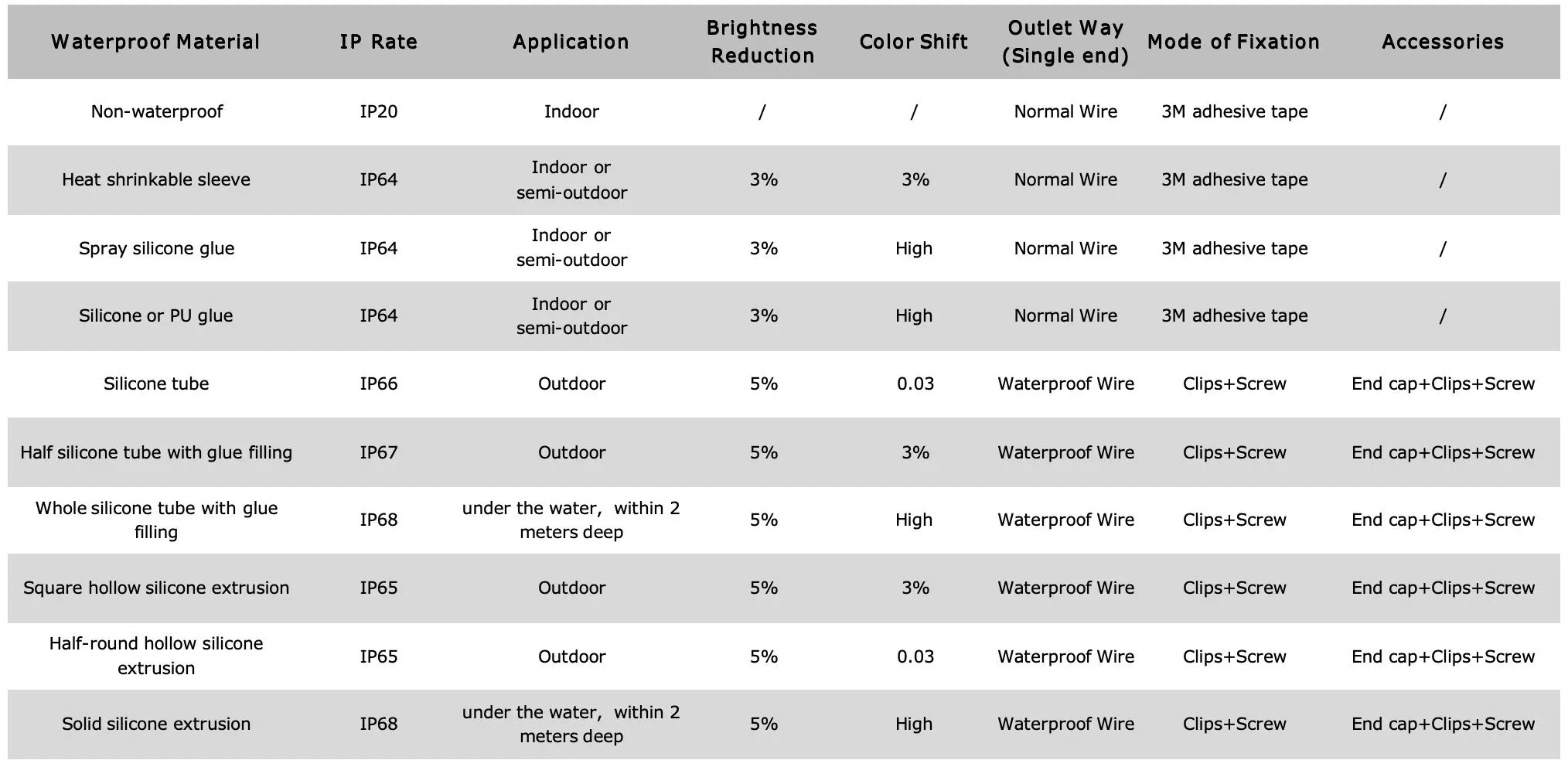

IP Rating Available

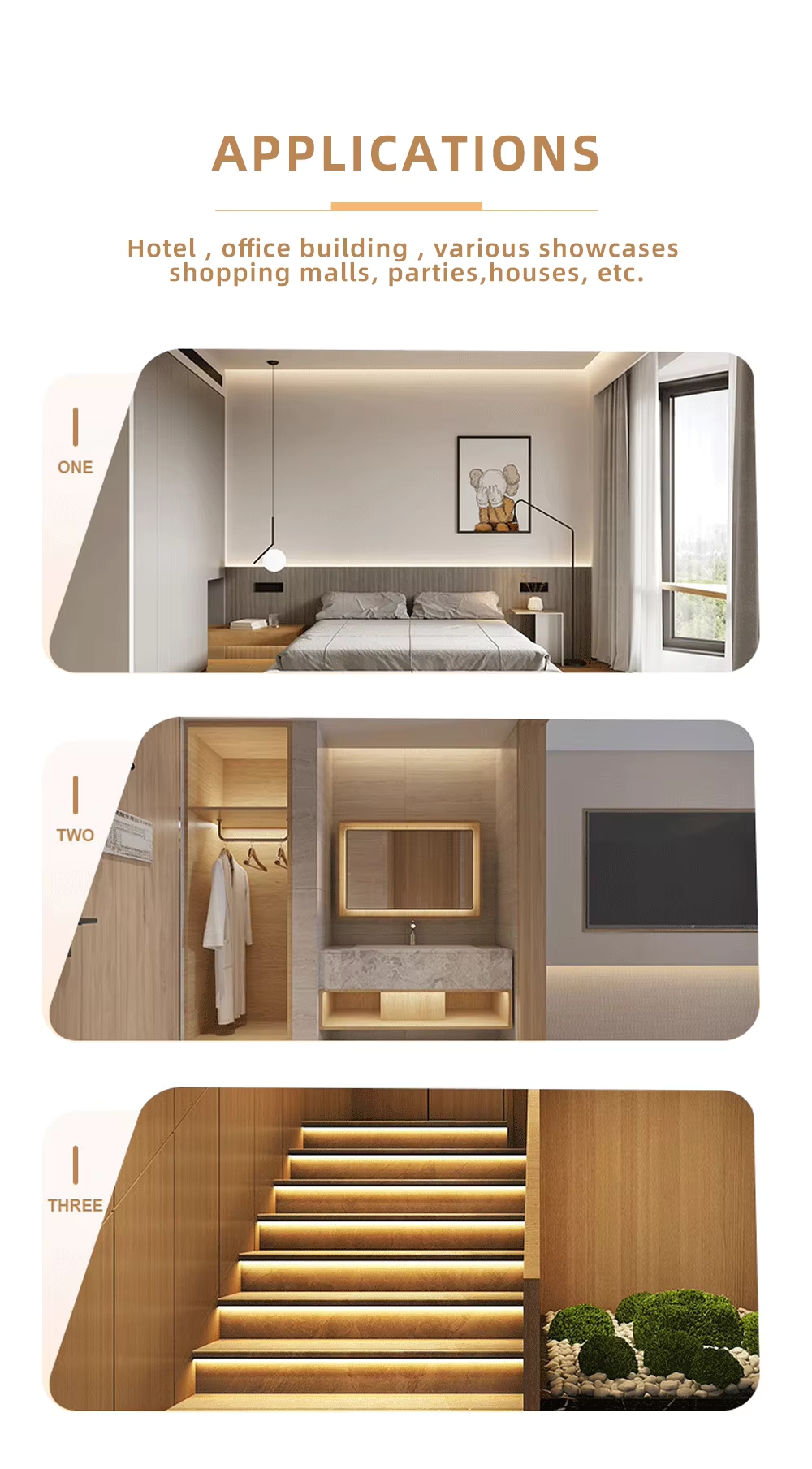

Application of 2216 120LED/M led strip
