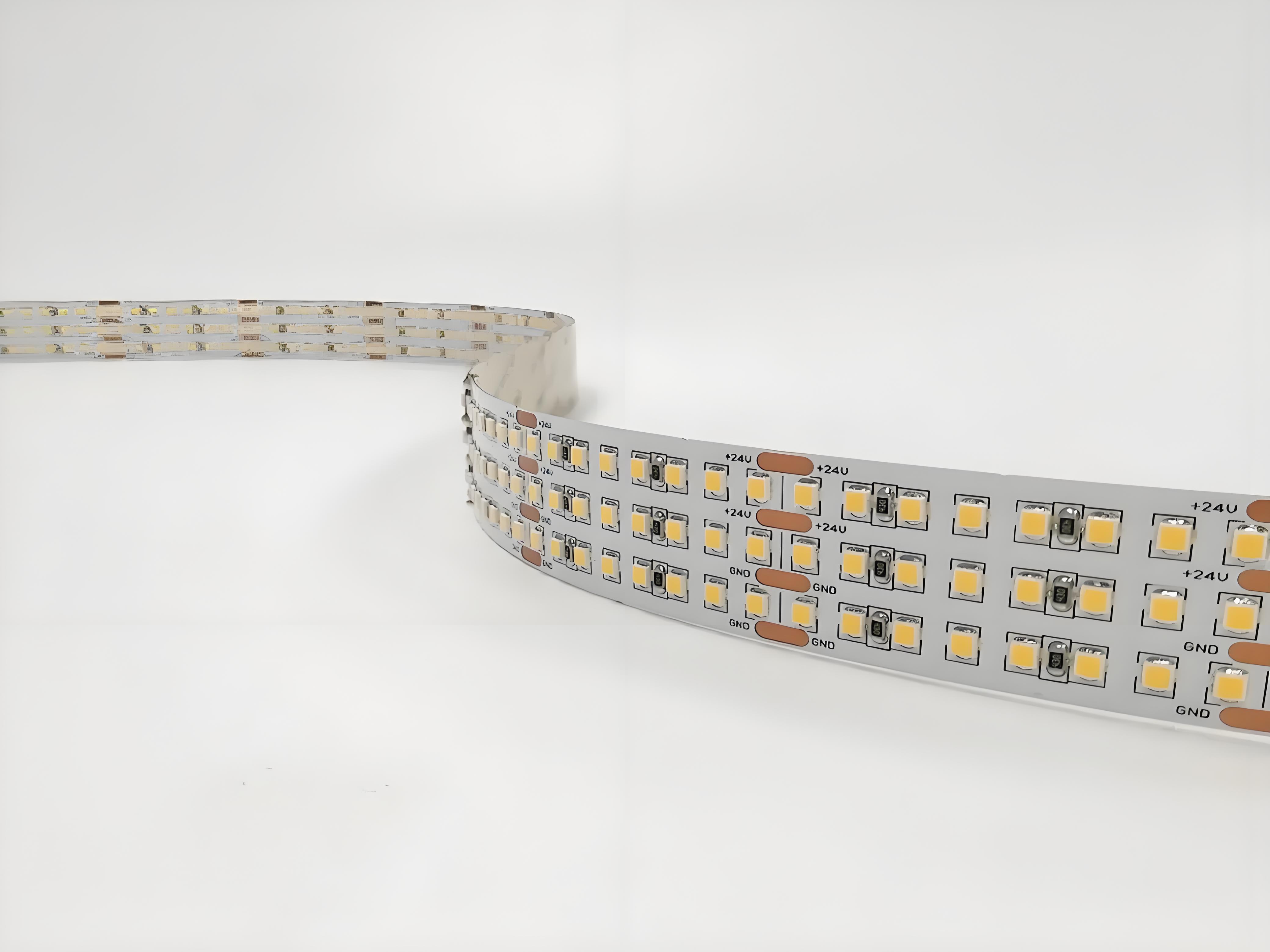

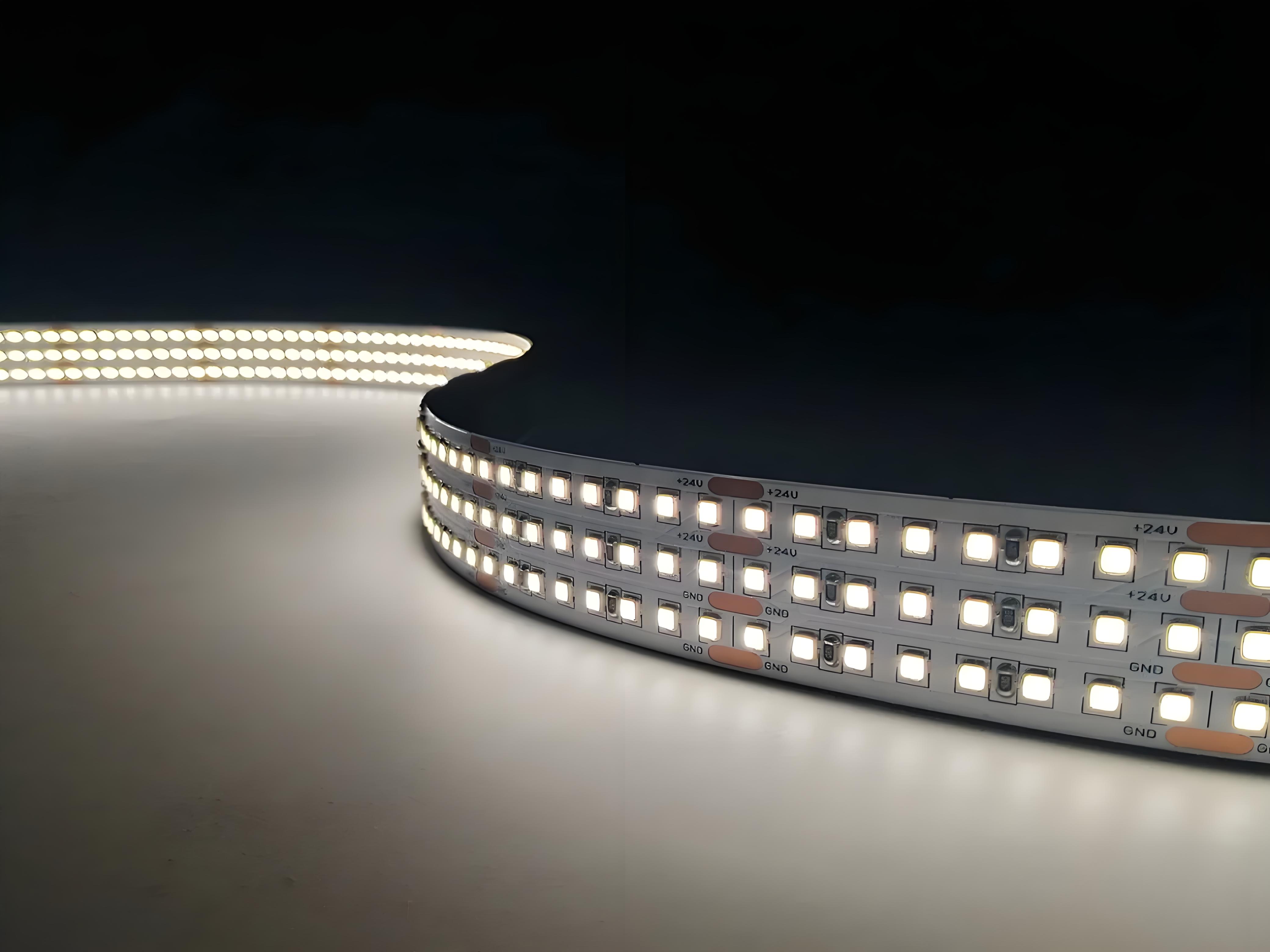

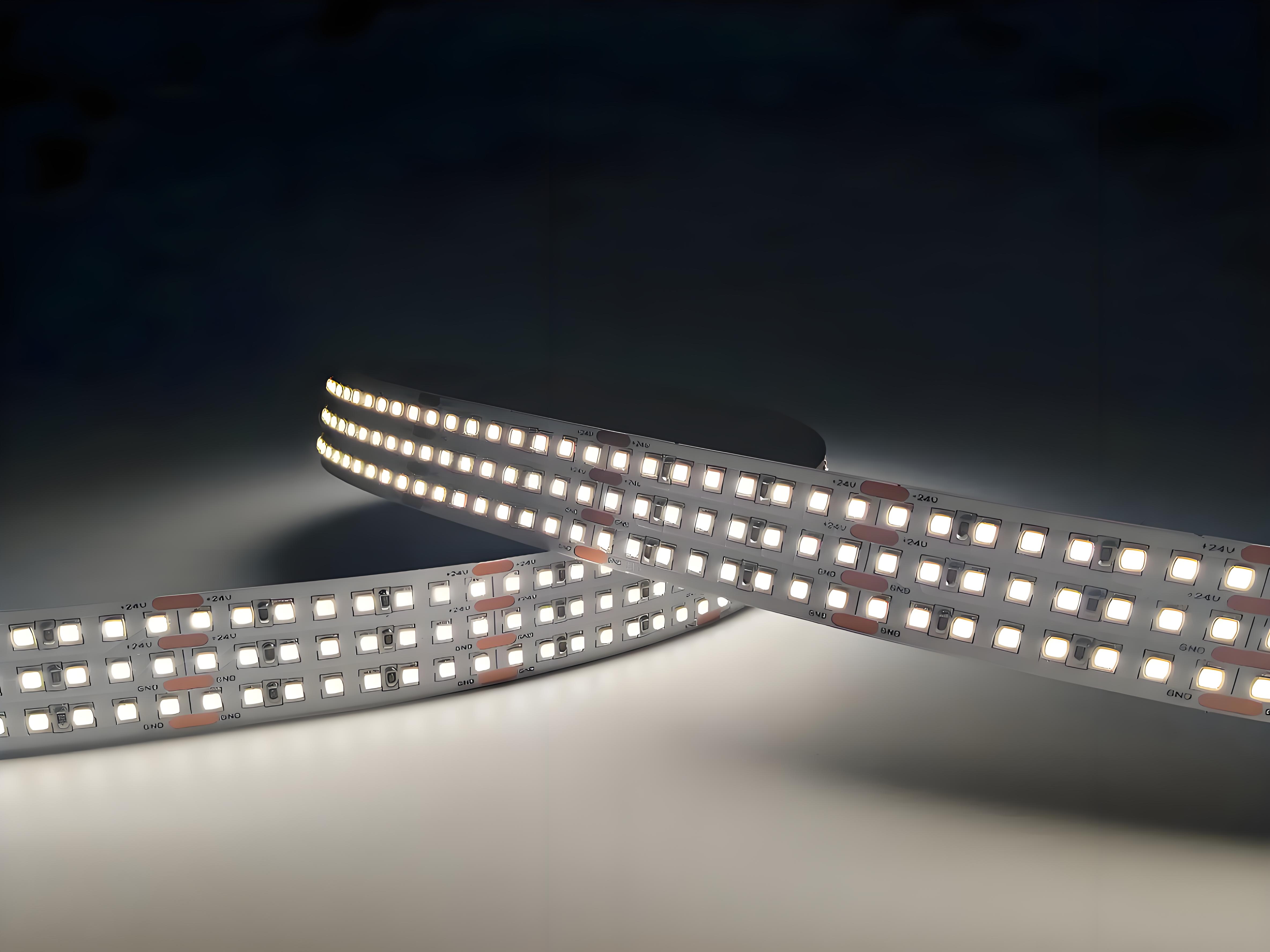

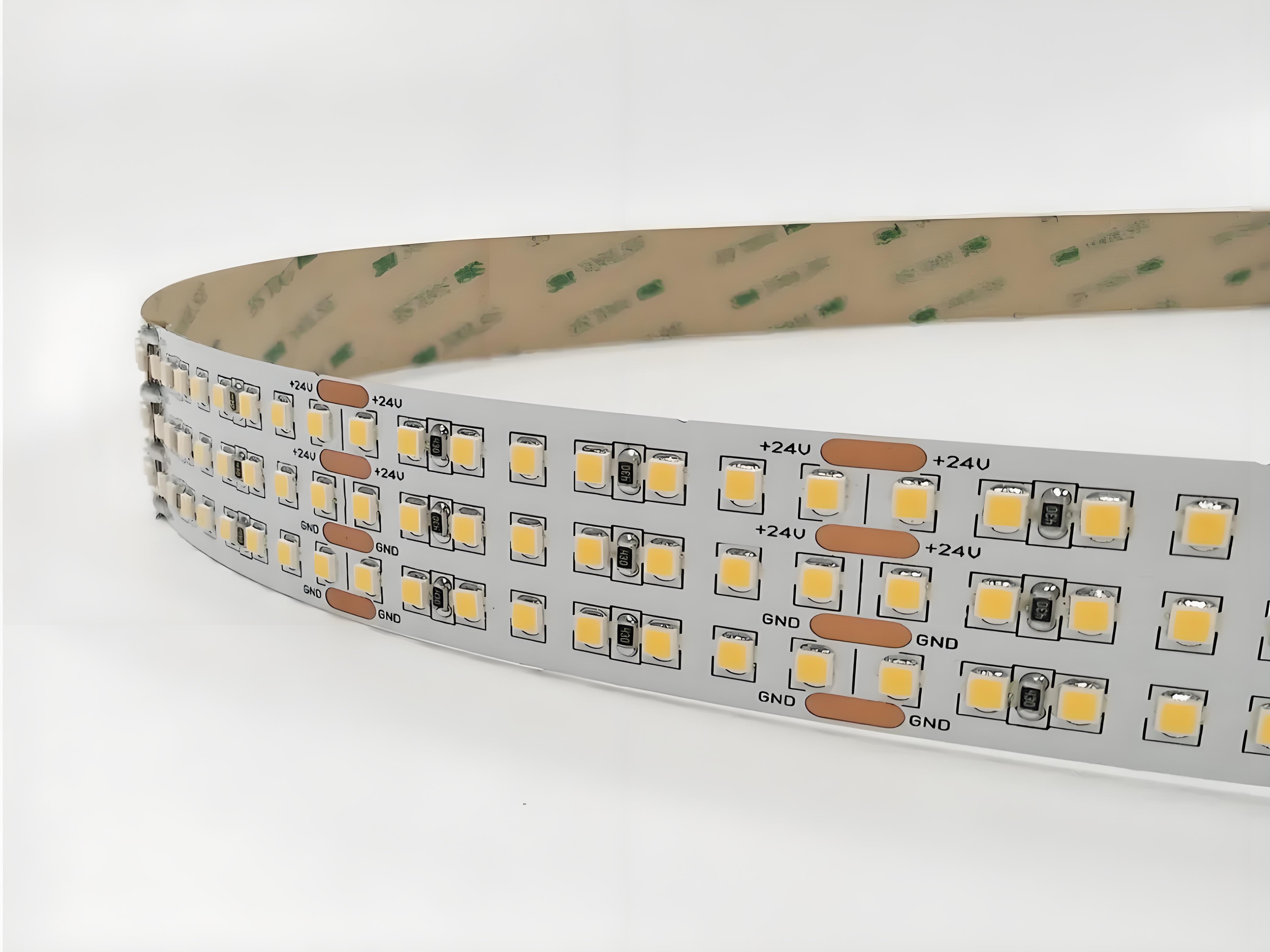

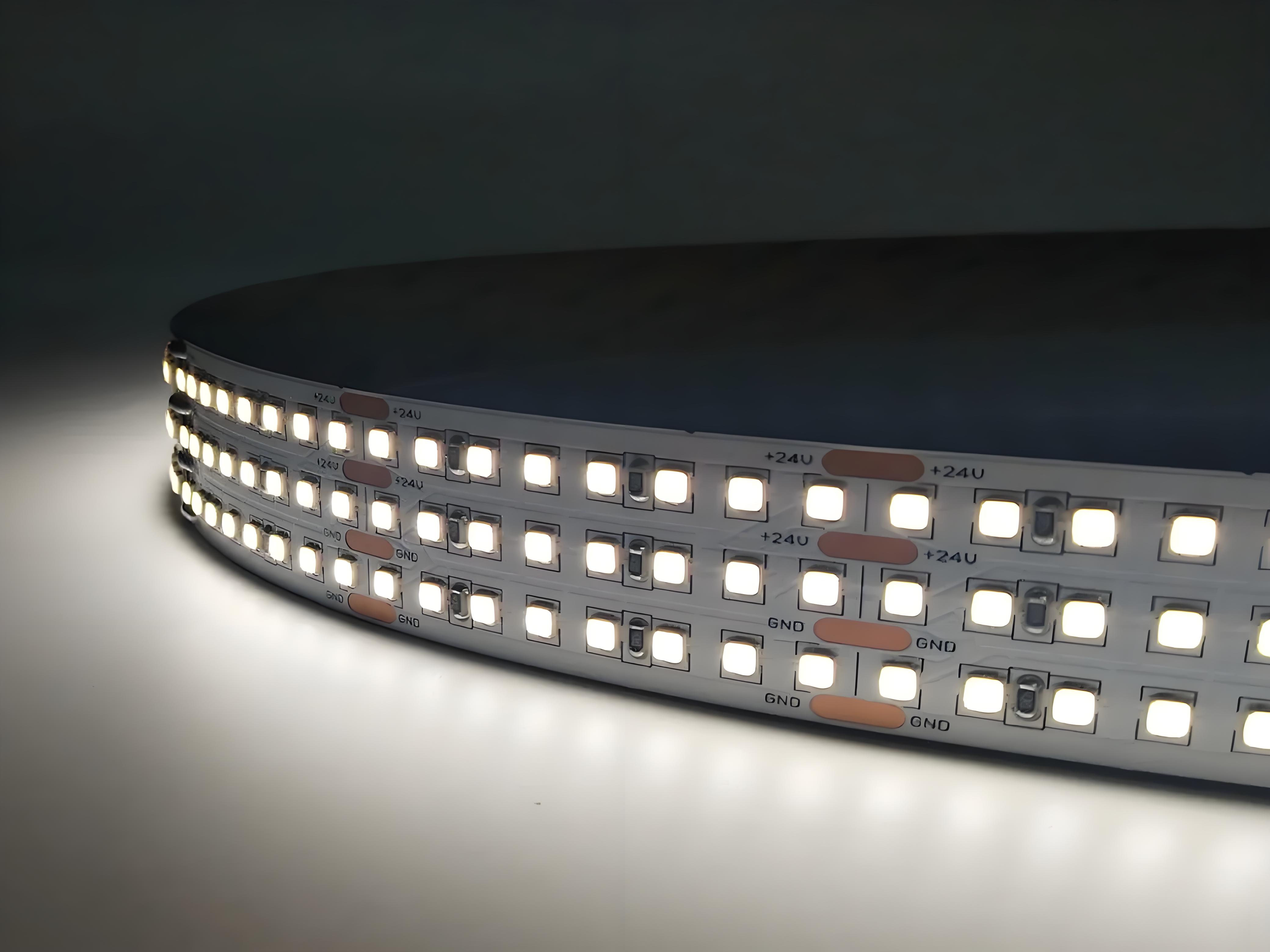

| Item Name | 195lm/w 2835 led strip
| LED Light Source | SMD2835 |
| LED Chip | Epistar/Sanan | LED Quantity | 480LEDs/m |
| Input Voltage(V) | DC24V | Power | 45W/m |
| CRI | 80 | Brightness | 8775lm/m |
| IP Rating | IP20/IP67/IP68 | PCB Color | White/Black |
| Working Temperature(℃) | -25 -45 | OEM&ODM | Available |
| Lifespan (hours) | 50000 | Package | 5M/Reel |
| Lamp Body Material | Copper | Warranty(Year) | 5Years |
| PCB Width | 30mm | Available Color | 2700-6500K |

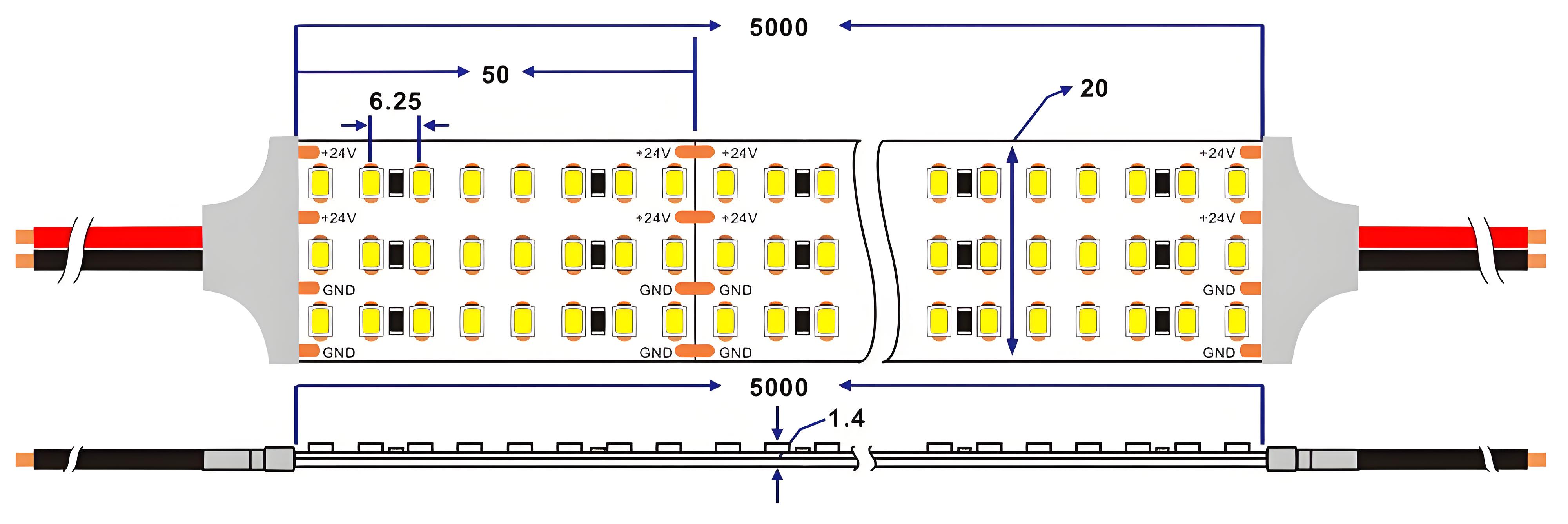

Dimension
High efficiency led strip light is a kind of led strip a high luminous efficiency up to 200lm/w.
It uses large-size chips and high brightness 2835 LEDs, high qulity resistors, and thicker 3OZ PCB.
Traditional LED strips are generally 6 LEDs or 3LEDs per cut, but high efficiency led strip are 7 LEDs or 8 LEDs or 9 LEDs per cut, which allow the light efficiency to be 140lm/W, 160lm/W and 210lm/W.
The feature of high efficiency led strip
1. High efficiency up to 140 LM/W, 160 LM/W and even 210 LM/W
2. Can be used as direct light source, but not only decorative lighting
3. No main light required with them installed as cove lighting
4. Static white & dual white are available
5. OEM and ODM are available
6. 5year warranty

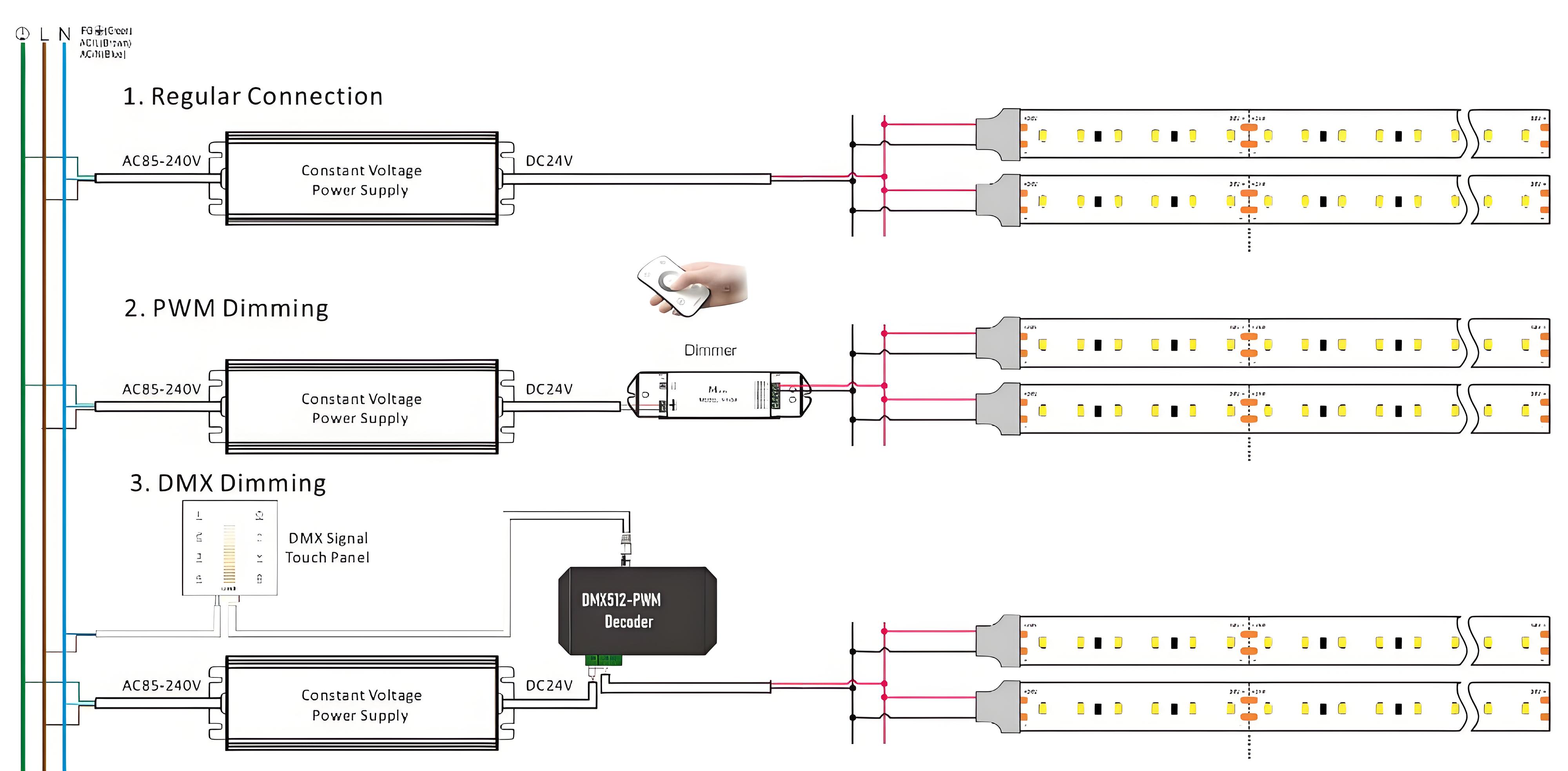

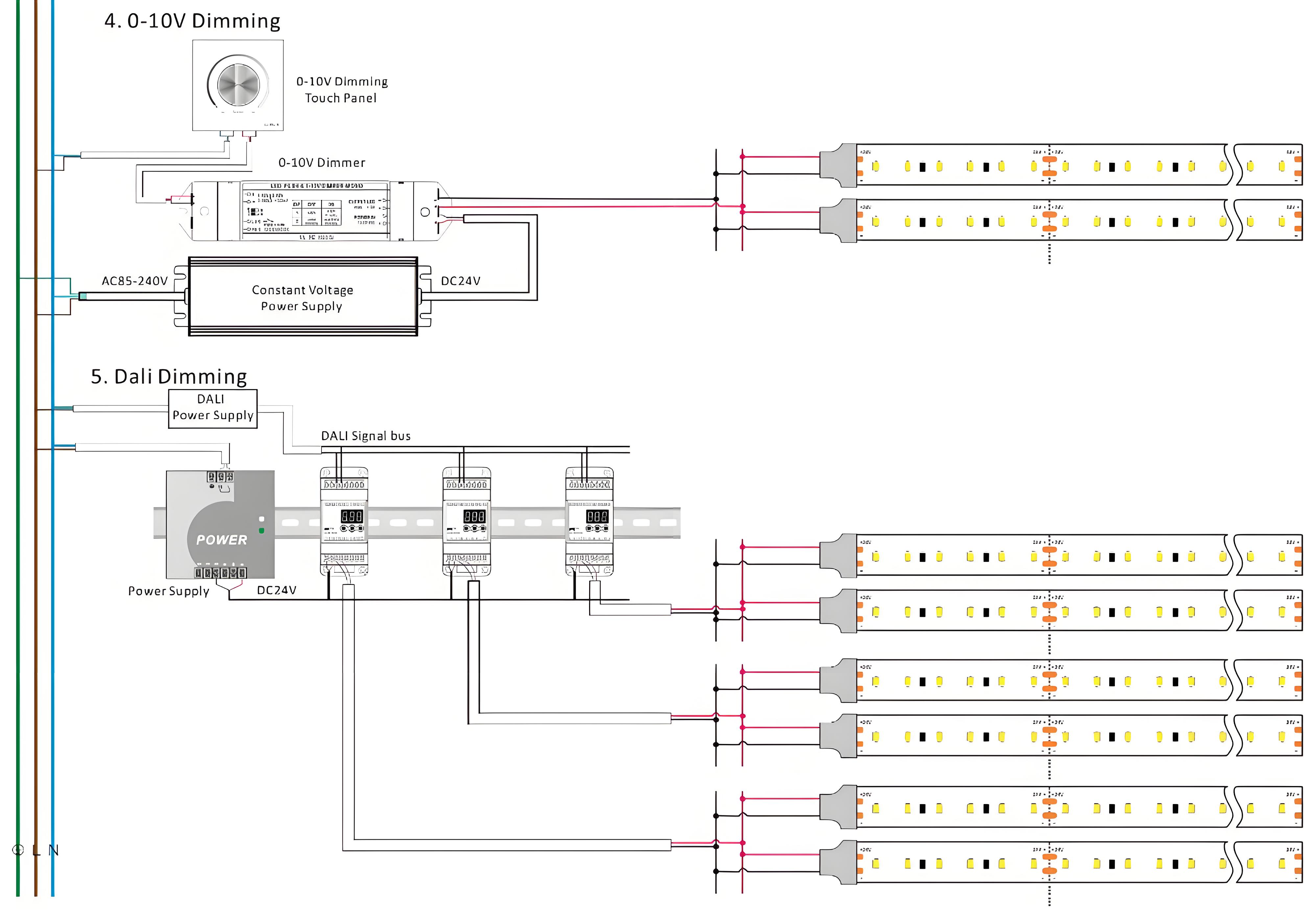

Connection of 8775lm/m 195lm/W 480led/m SMD2835 led strip

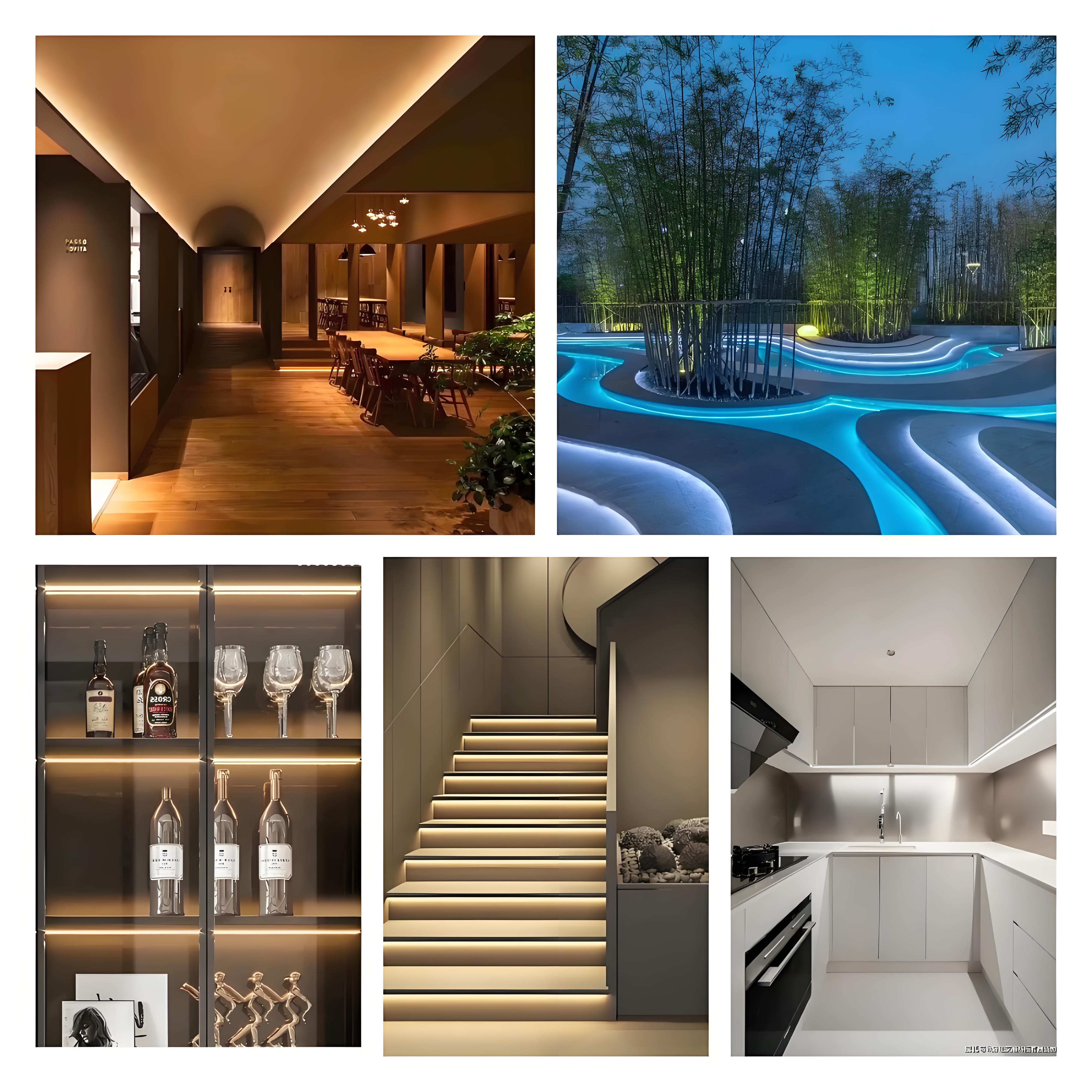

Application
