Shenzhen Risun Lighting CO., LTD

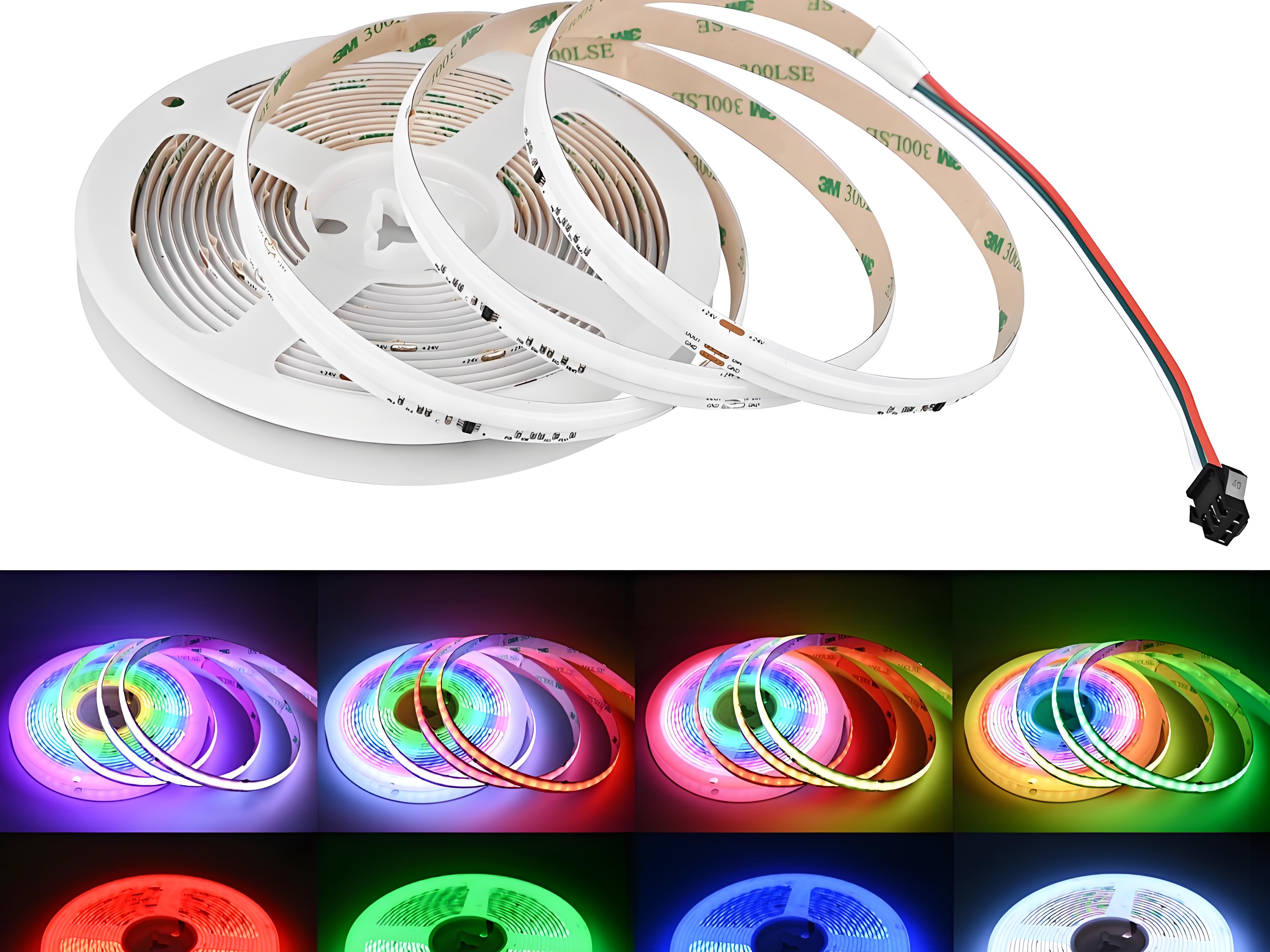

Specification of rgb pixel cob led strip light
| Item NO. | LED Type | Color | LED QTY (LED/M) | Cutting length (mm/cut) | Voltage (V) | Power (W/M) | Dimension (mm) |
| HR00-COB24AW360P10P | COB | Pixel White | 360 | 83.33mm | DC24V | 12 | 5000*10 |
| HR00-COB24ATW576P10P | COB | Pixel TW | 576 | 83.33mm | DC24V | 14 | 5000*10 |
| HR00-COB24ARGBIC420P10P | COB | PixelRGB | 420 | 100mm | DC24V | 13.5 | 5000*10 |
| HR00-COB24ARGB720P12P | COB | PixelRGB | 720 | 50mm | DC24V | 21 | 5000*12 |
| HR00-COB24ARGBW840P12P | COB | PixelRGBW | 840 | 100mm | DC24V | 16 | 5000*12 |

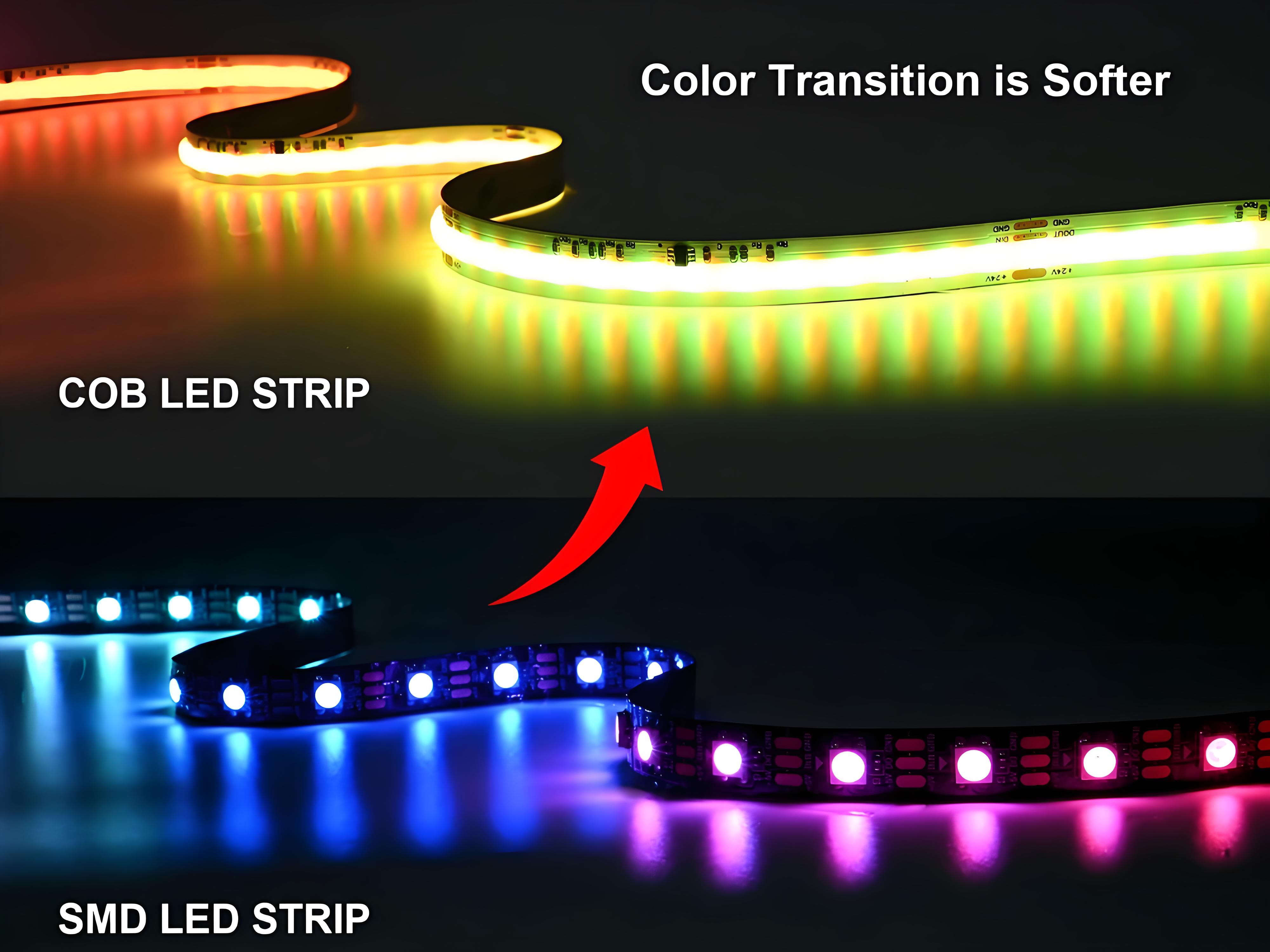

COB（Chips on Board） means that the chip is directly packaged on the PCB.
Cob led strip is a series of led strip which encapsulates the chip on the flexible board, and then a layer of packaging glue mixed with phosphor powder is directly dropped on the surface of the chip.
The light emitted by the chip is refracted, reflected in the encapsulation colloid, and interacts with the phosphor powder. The colloid evenly emits light of different colors and color temperatures.

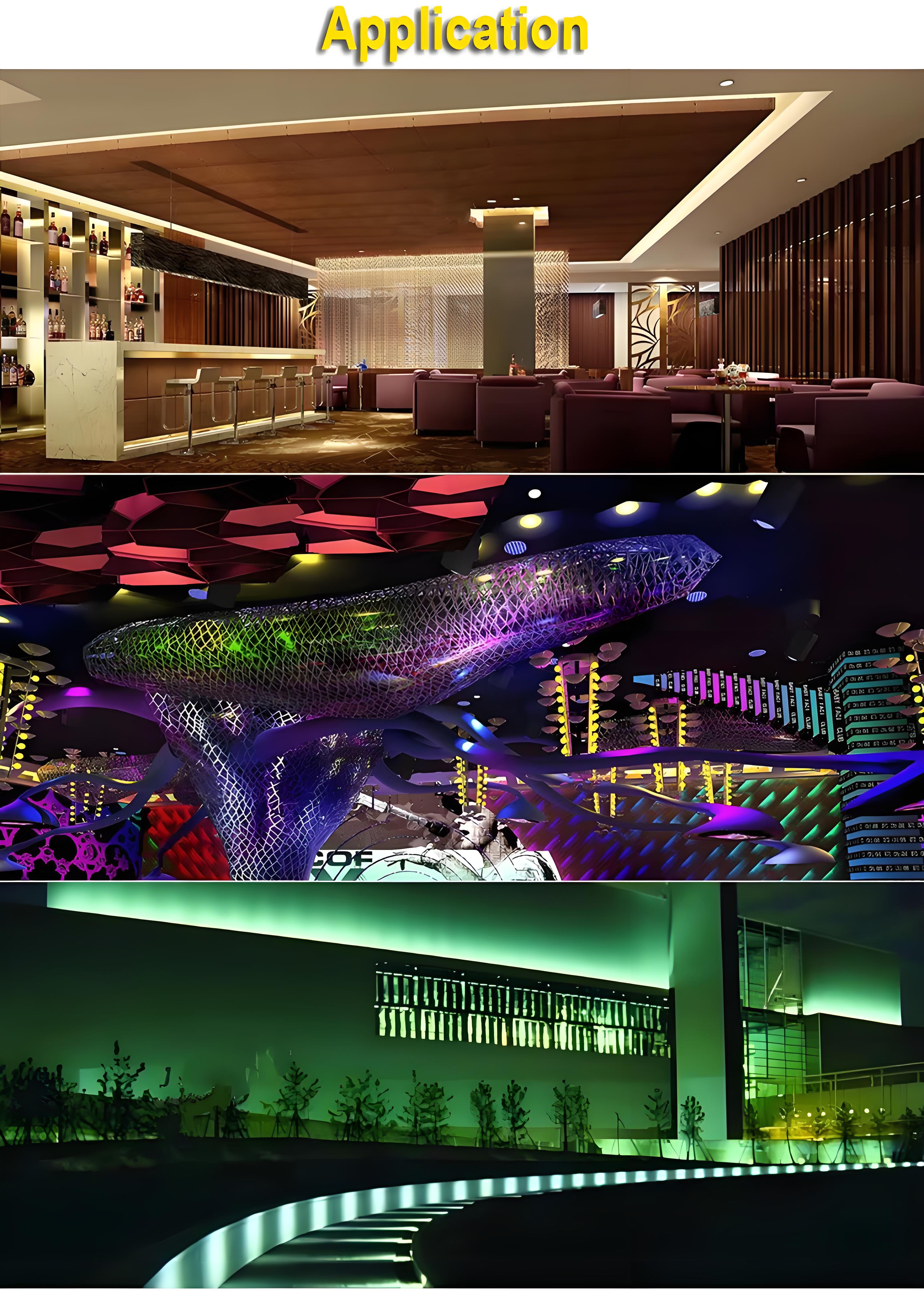

Application of rgb pixel cob led strip light
