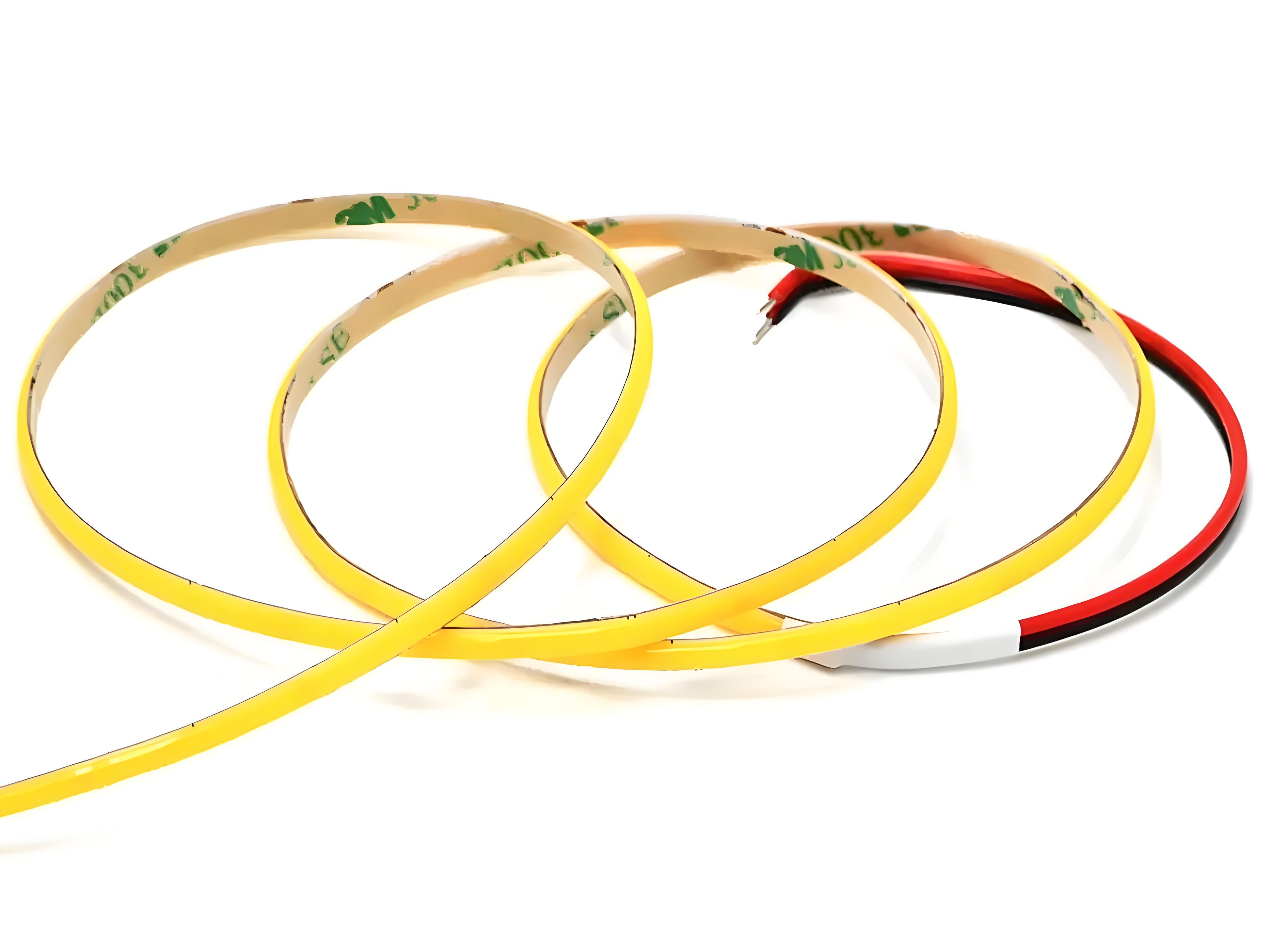

ultra thin 3mm 4mm 5mm cob led strip

COB（Chips on Board） means that the chip is directly packaged on the PCB.

Cob led strip is a series of led strip which encapsulates the chip on the flexible board, and then a layer of packaging glue mixed with phosphor powder is directly dropped on the surface of the chip.

The light emitted by the chip is refracted, reflected in the encapsulation colloid, and interacts with the phosphor powder. The colloid evenly emits light of different colors and color temperatures.

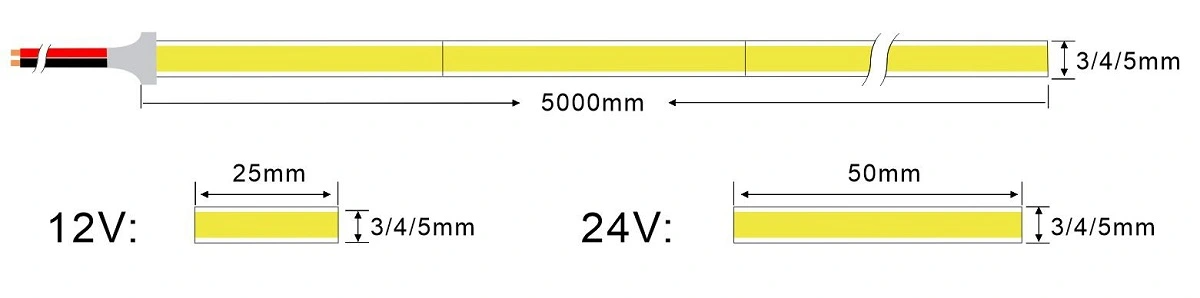

Specification of ultra thin 3mm 4mm 5mm cob led strip

Model	led type	Chip qty	Ra	pcb width	voltage	Light Efficiency	Cutting Unit	color	Power
3mm cob	cob	480	>90	3mm	24v	80-90lm/W	50mm	2700K/3000K/ 4000K/5000K/ 6000K/Red/ Blue/Green	5w
4mm cob	cob	480	>90	4mm	12/24v	80-90lm/W	25/50mm		6w
5mm cob	cob	480	>90	5mm	12/24v	80-90lm/W	25/50mm		7w
