Ultra thin led strip, also called ultra narrow led strip, ultra slim led strip, are a series of led strip light in narrow pcb like 3mm, 4mm, 5mm, 6mm.
They can be single color, dual white, RGB and addressable, etc.
These led strips provides elegant, discreet lighting.
They are commonly used by architechts & lighting designers in professional installations, as well as by OEMs and fabricators within their products.
Specification of SMD2835 5mm led strip light
| Item Name | SMD3838 led strip | LED Light Source | SMD3838 RGB |
| LED Chip | Epistar/Sanan | LED Quantity | 120LEDs/m |
| Input Voltage(V) | DC12V/24V | Power | 14.4W/m |
| Working Temperature(℃) | -25 -45 | CRI | / |
| Lifespan (hours) | 50000 | Cutting unit | 2.5cm(12V); 5cm(24V) |
| PCB Color | White/Black | Warranty(Year) | 3Years |
| Dimension | 5000mm*5mm | Available Color | RGB |
| Certificate | ETL,CE,RoHS,BIS etc. | OEM&ODM | Available |

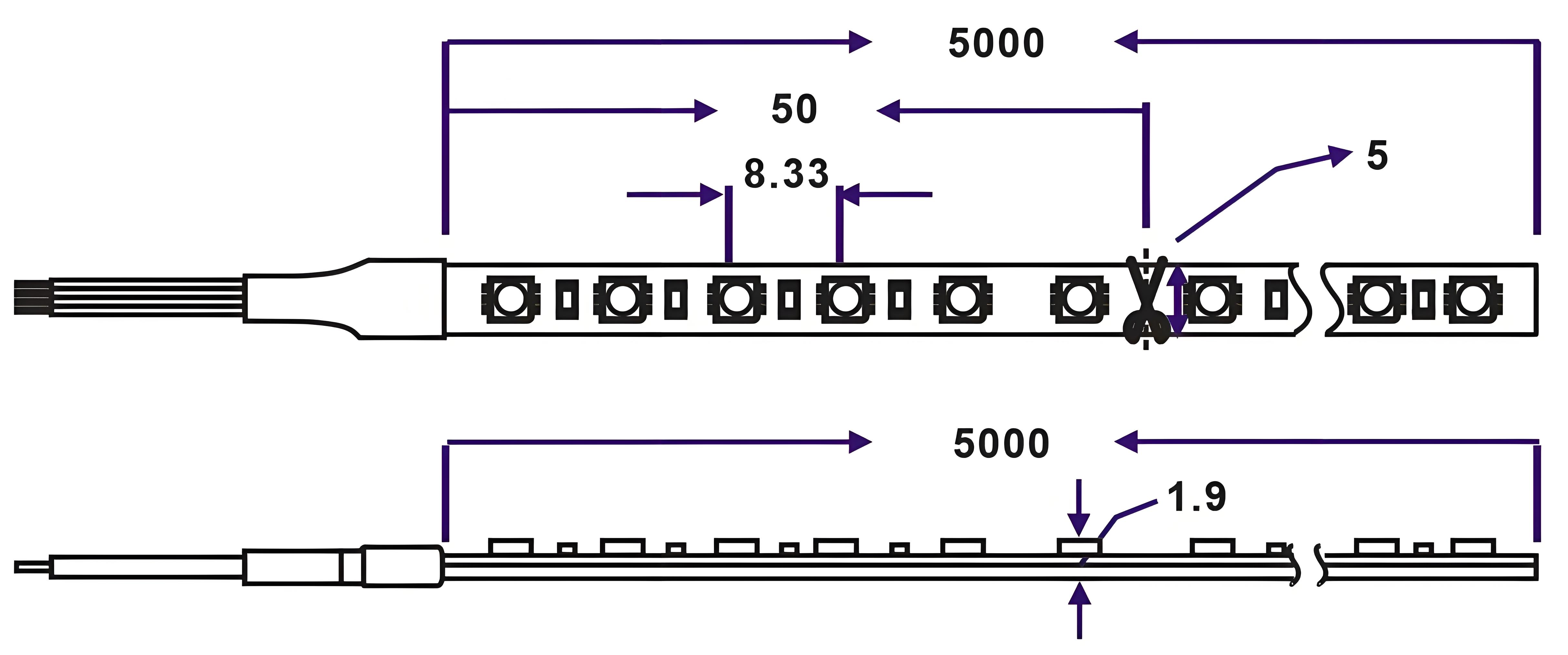

Dimension (mm)

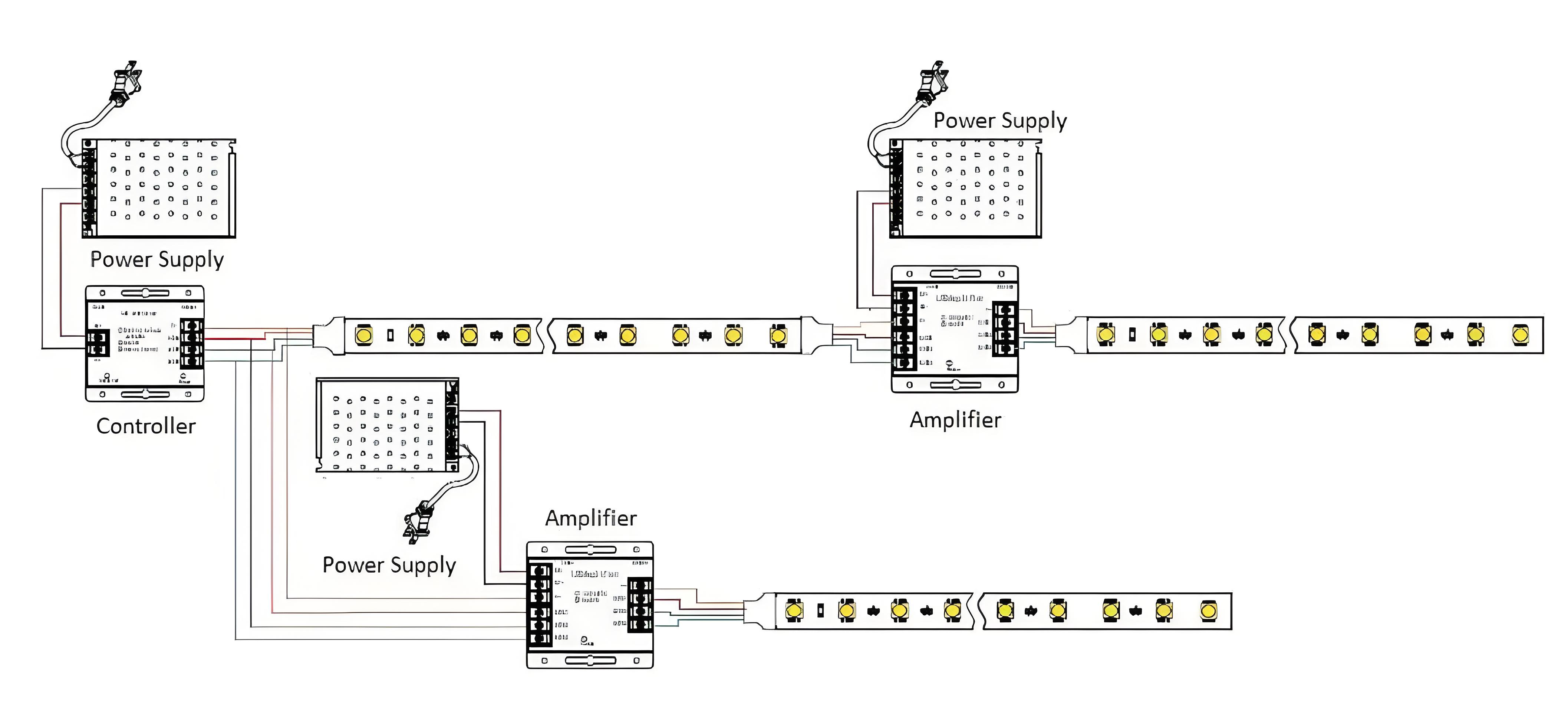

Connection of 5mm 2835 120 LED/M led strip
Accessories of ultra thin rgb led strip light

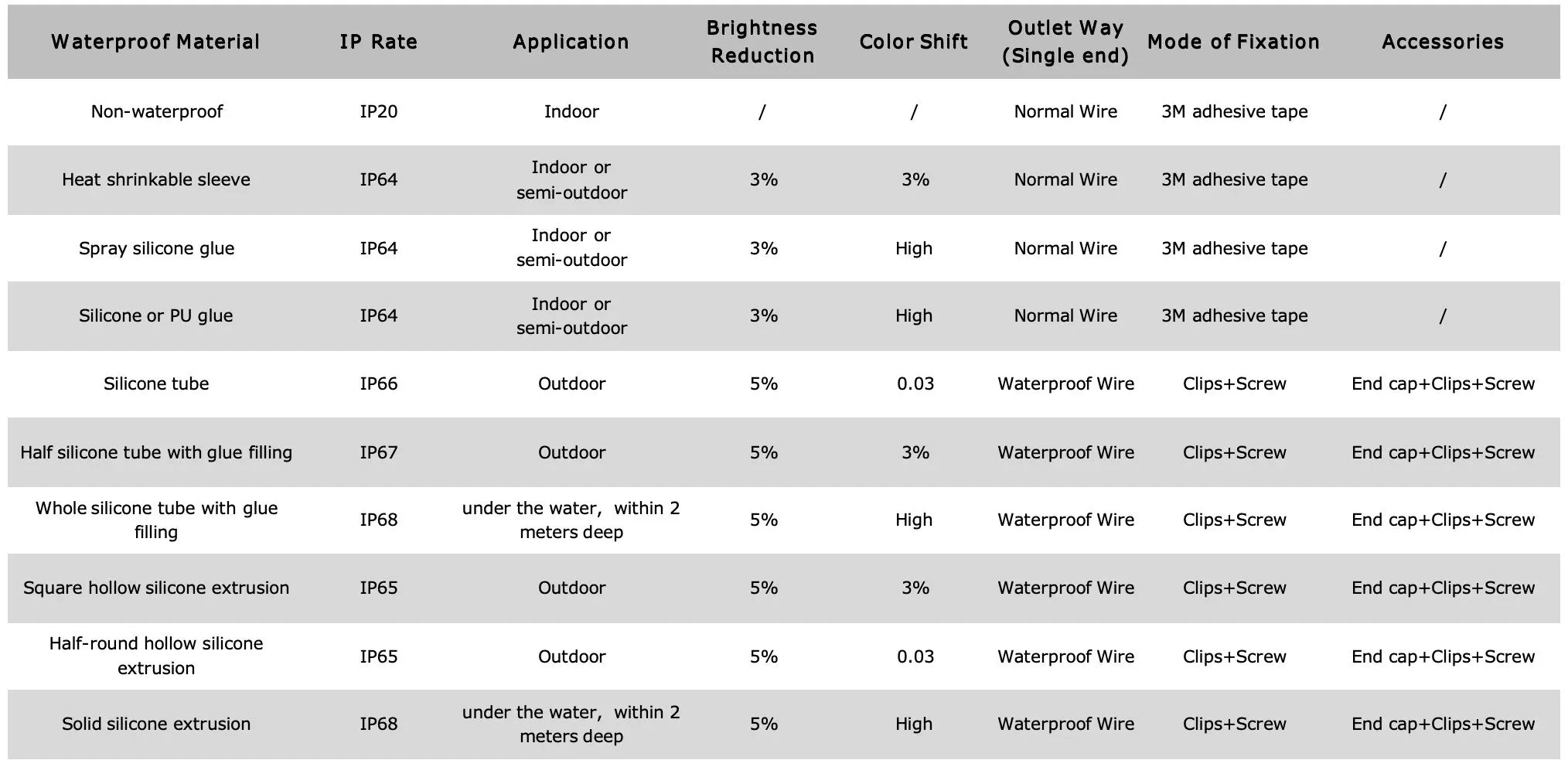

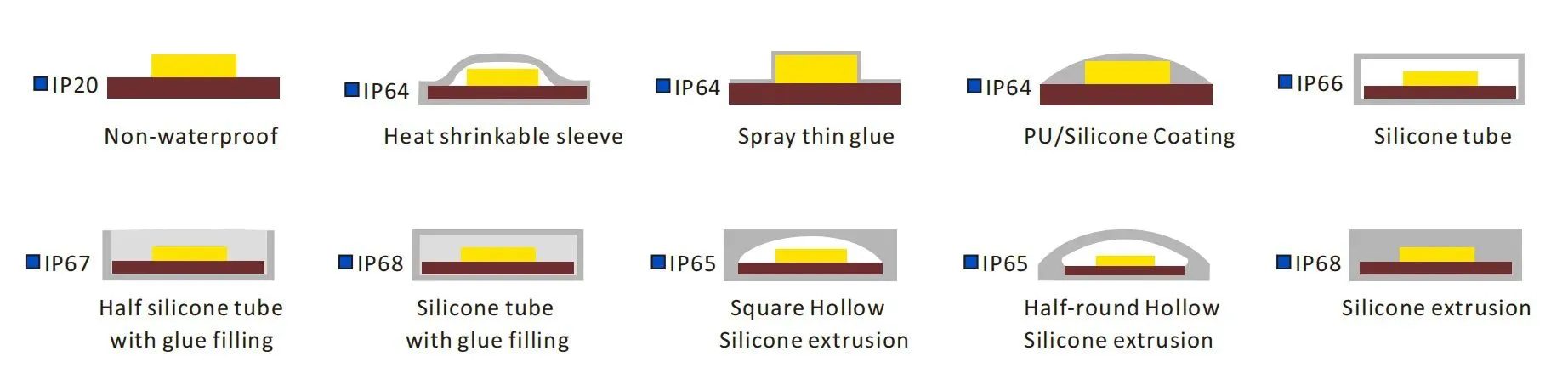

IP Rating Available
