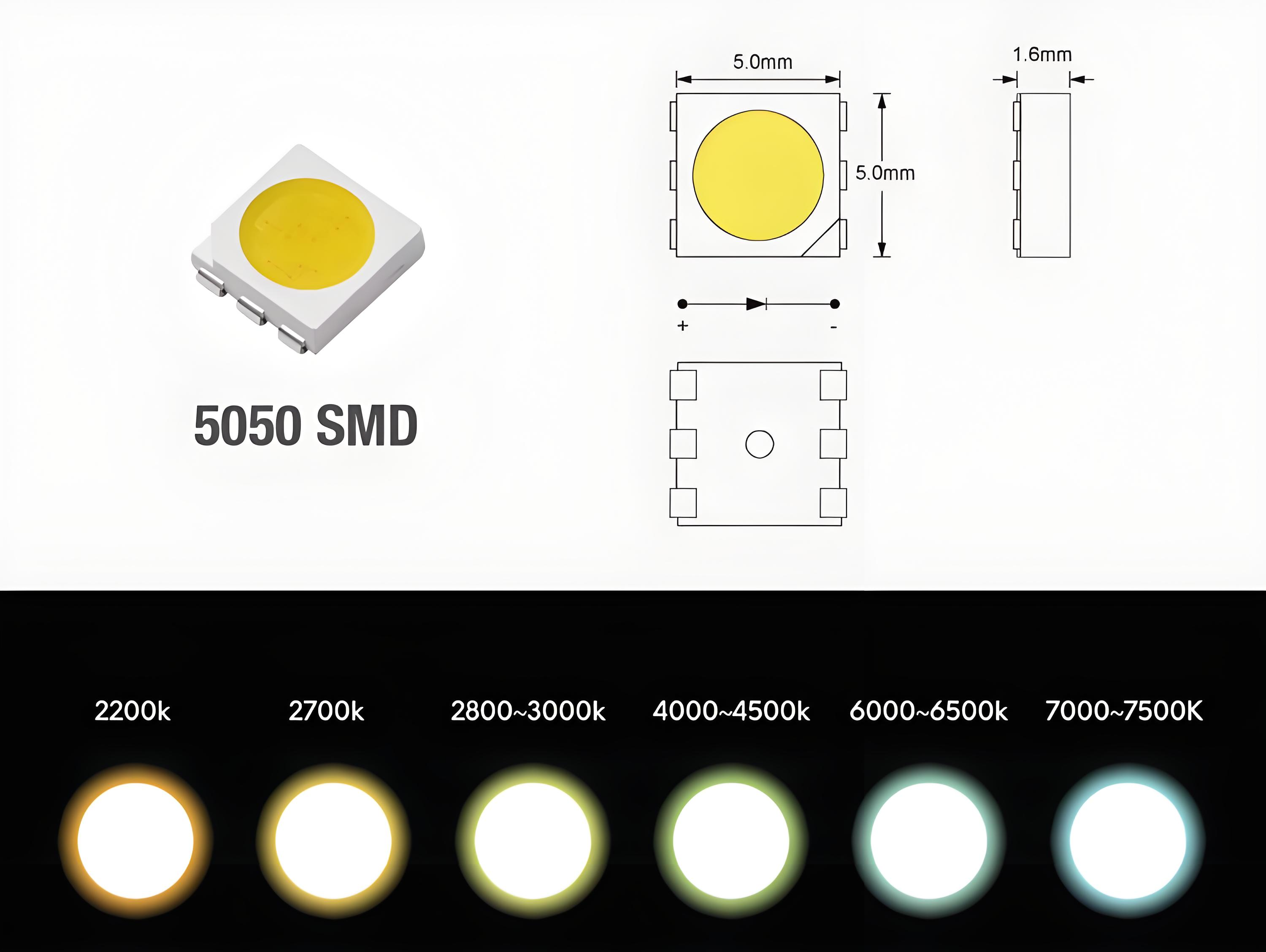

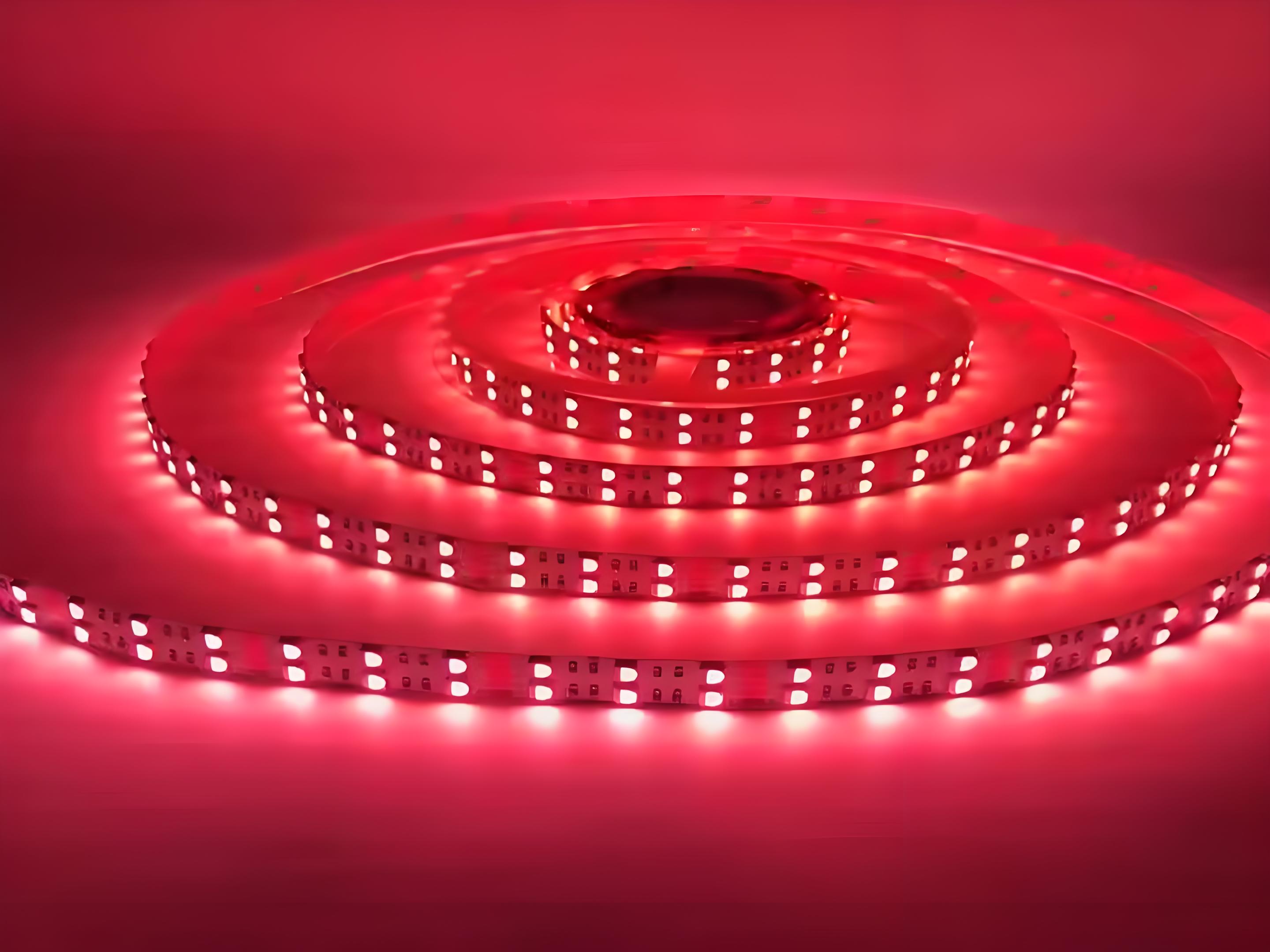

5050 LED strips feature LED chips that are 5.0mm x 5.0mm in size.

These chips are larger than those found in 3528 and 2835 LED strips, allowing them to house three diodes per chip.

This configuration enables 5050 LED strips to support RGB color mixing, making them ideal for vibrant, colorful lighting effects.

Due to their higher power output, 5050 LED strips are often used in areas requiring bright illumination, such as kitchens, living rooms, and outdoor spaces.

Feature of 5050 60LED/M led strip

---

Item Name	SMD5050 led strip	LED Light Source	SMD5050
LED Chip	Epistar/Sanan	LED Quantity	120LEDs/m
Input Voltage(V)	DC12V/24V	Power	24W/m
Working Temperature(℃)	-25 -45	CRI	80/90
Lifespan (hours)	50000	Cutting unit	5cm(12V); 10cm(24V)
PCB Color	White/Black	Warranty(Year)	3Years
Dimension	5000mm*15mm	Available Color	2700-6500K/Red/Yellow/Blue/Green
Certificate	ETL,CE,RoHS,BIS etc.	OEM&ODM	Available

Dimension (mm)

---

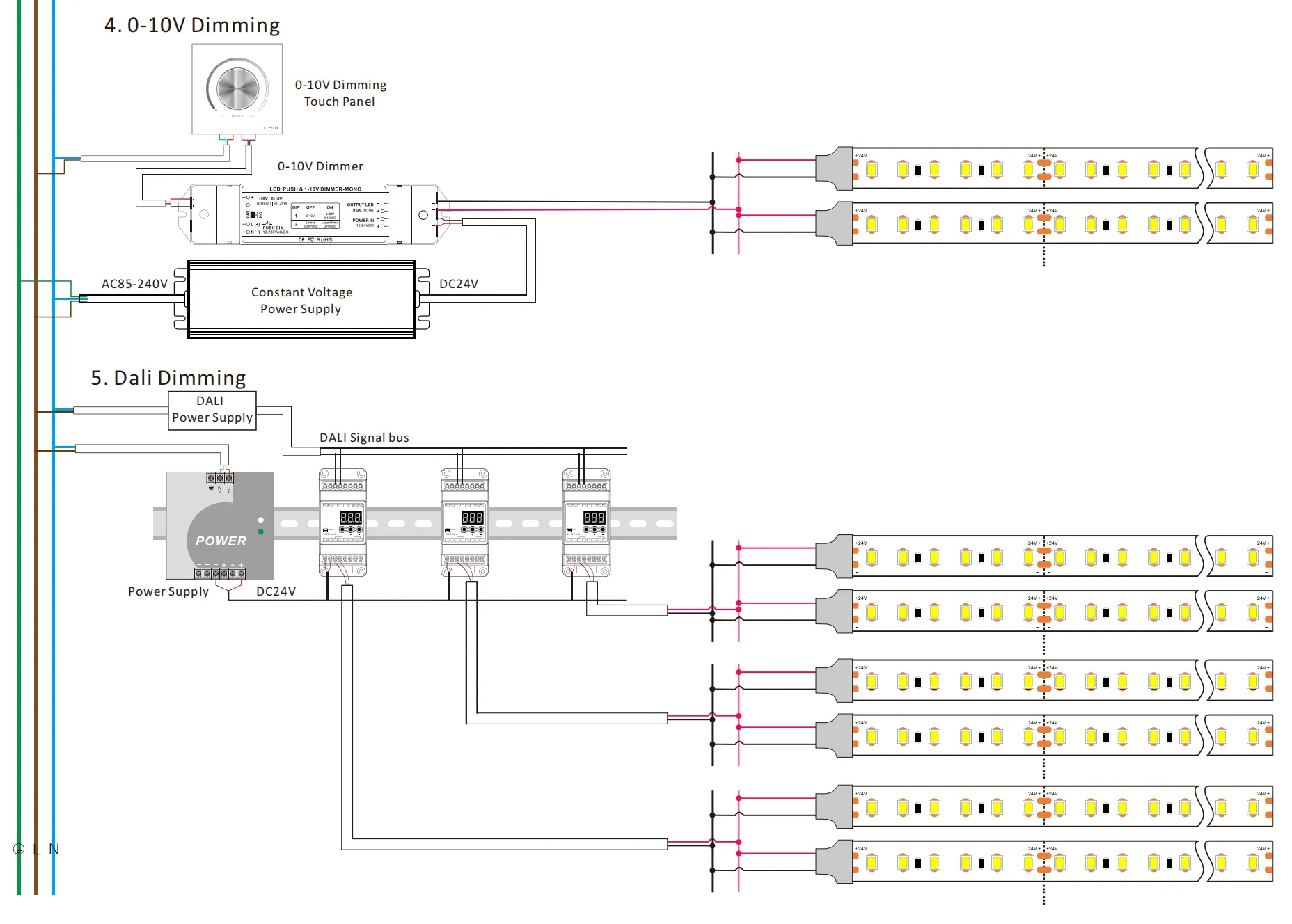

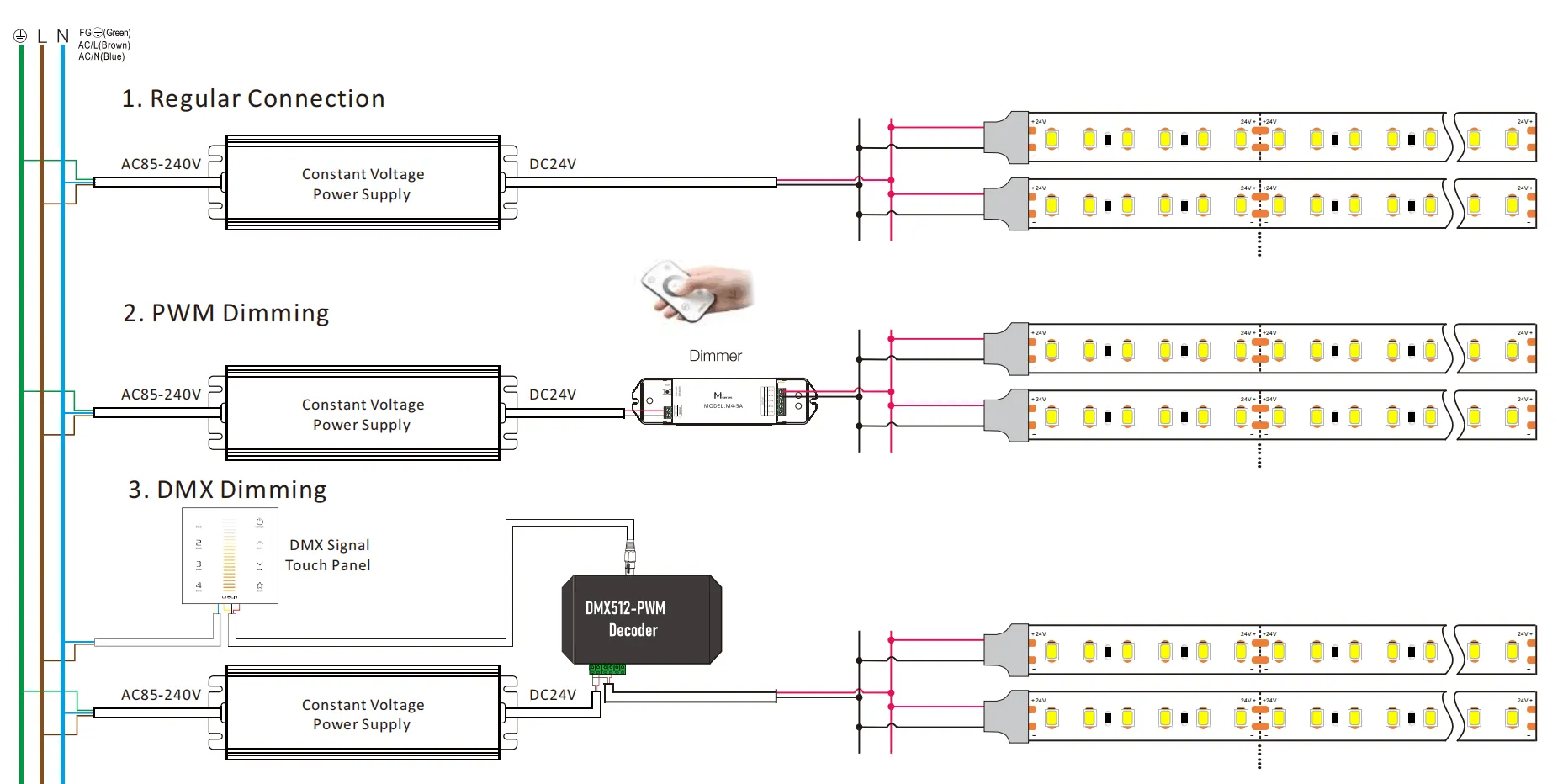

Connection of 5050 120LED/M led strip

---



IP Rating Available

---



Application of 5050 120LED/M led strip

---
