Shenzhen Risun Lighting CO., LTD
♦High efficiency led strip light is a kind of led strip a high luminous efficiency up to 200lm/w.
♦It uses large-size chips and high brightness 2835 LEDs, high qulity resistors, and thicker 3OZ PCB.
♦Traditional LED strips are generally 6 LEDs or 3LEDs per cut, but high efficiency led strip are 7 LEDs or 8 LEDs or 9 LEDs per cut.
♦Which allow the light efficiency to be 140lm/W, 160lm/W and 210lm/W.

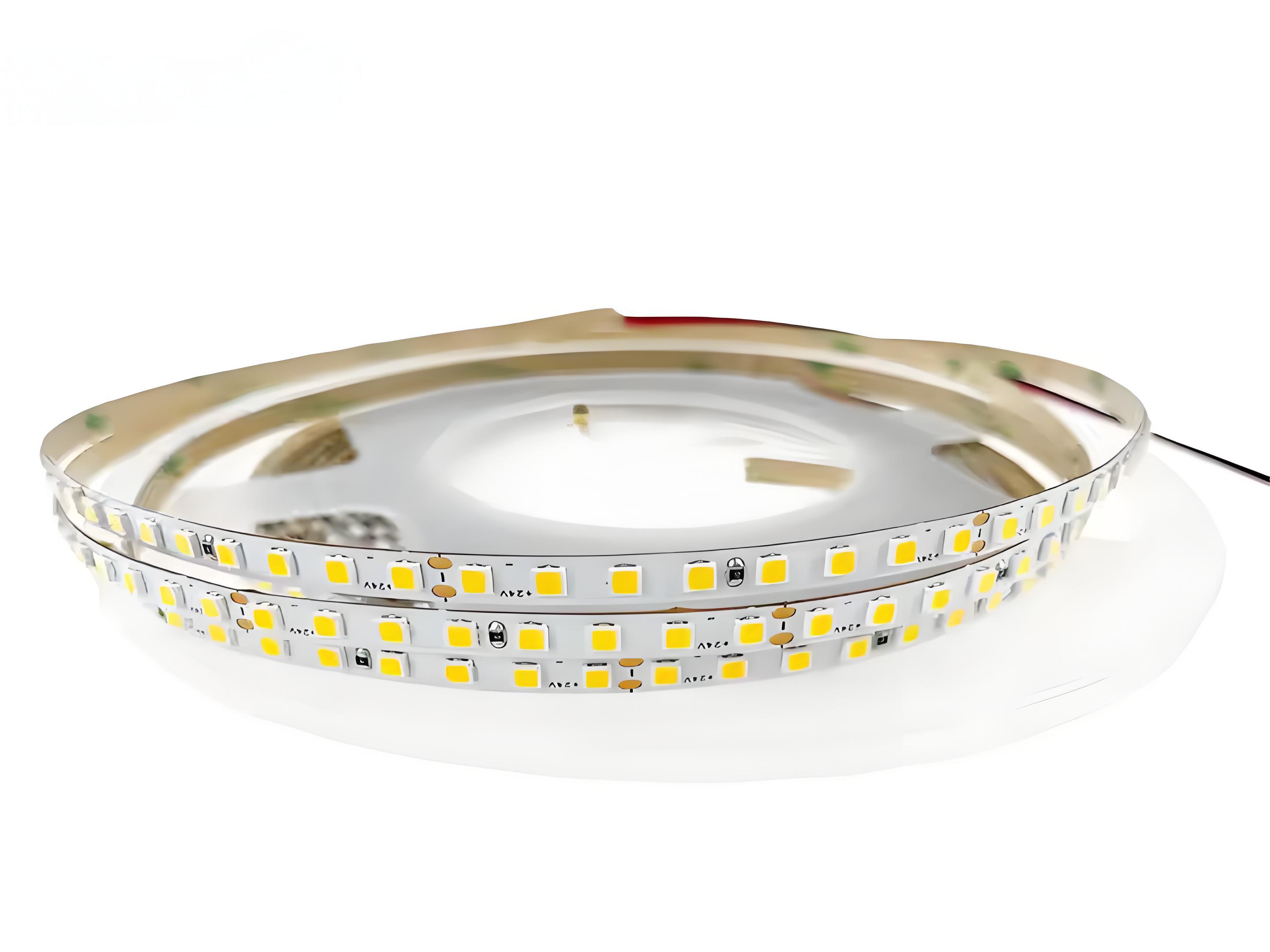

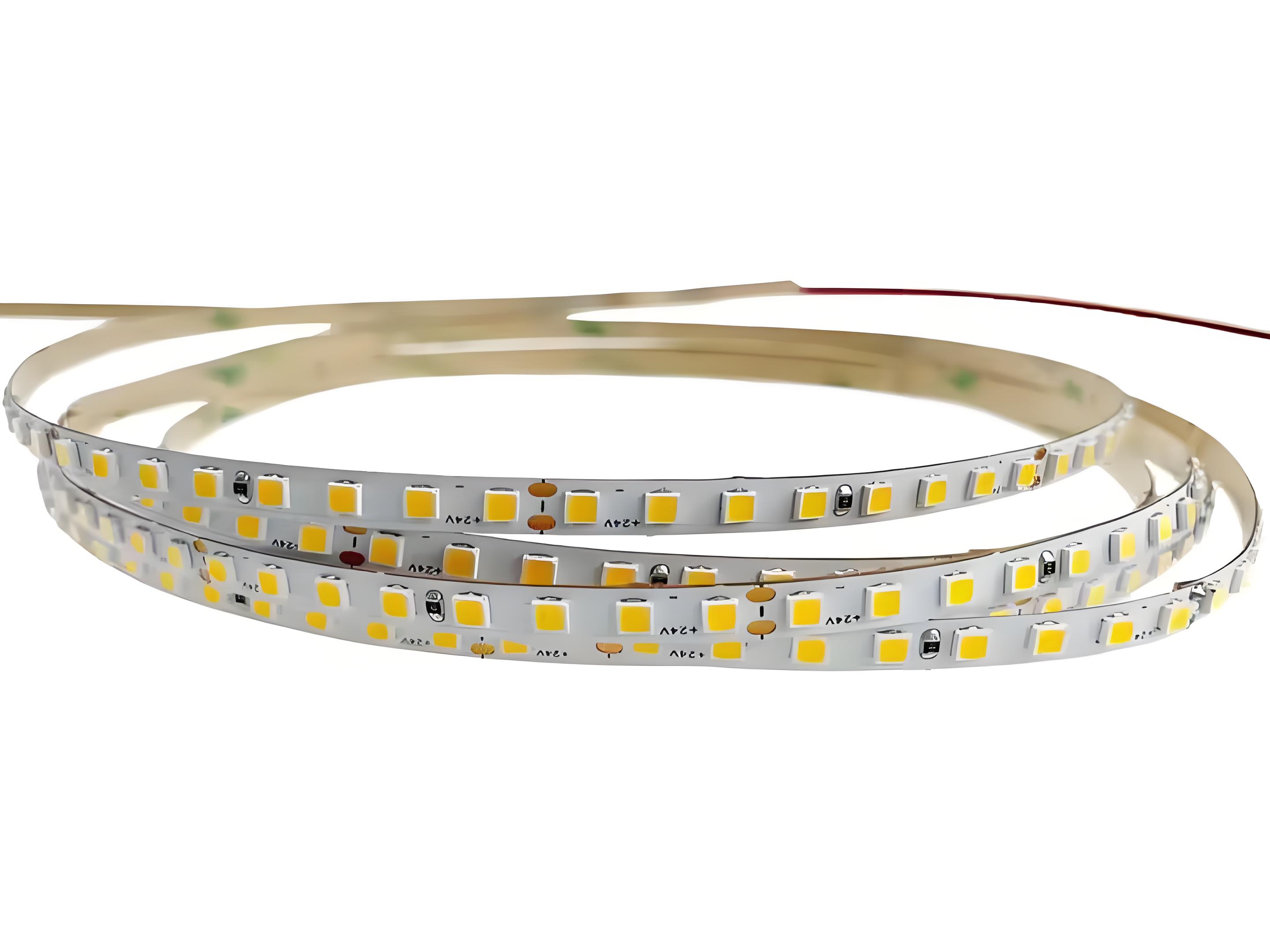

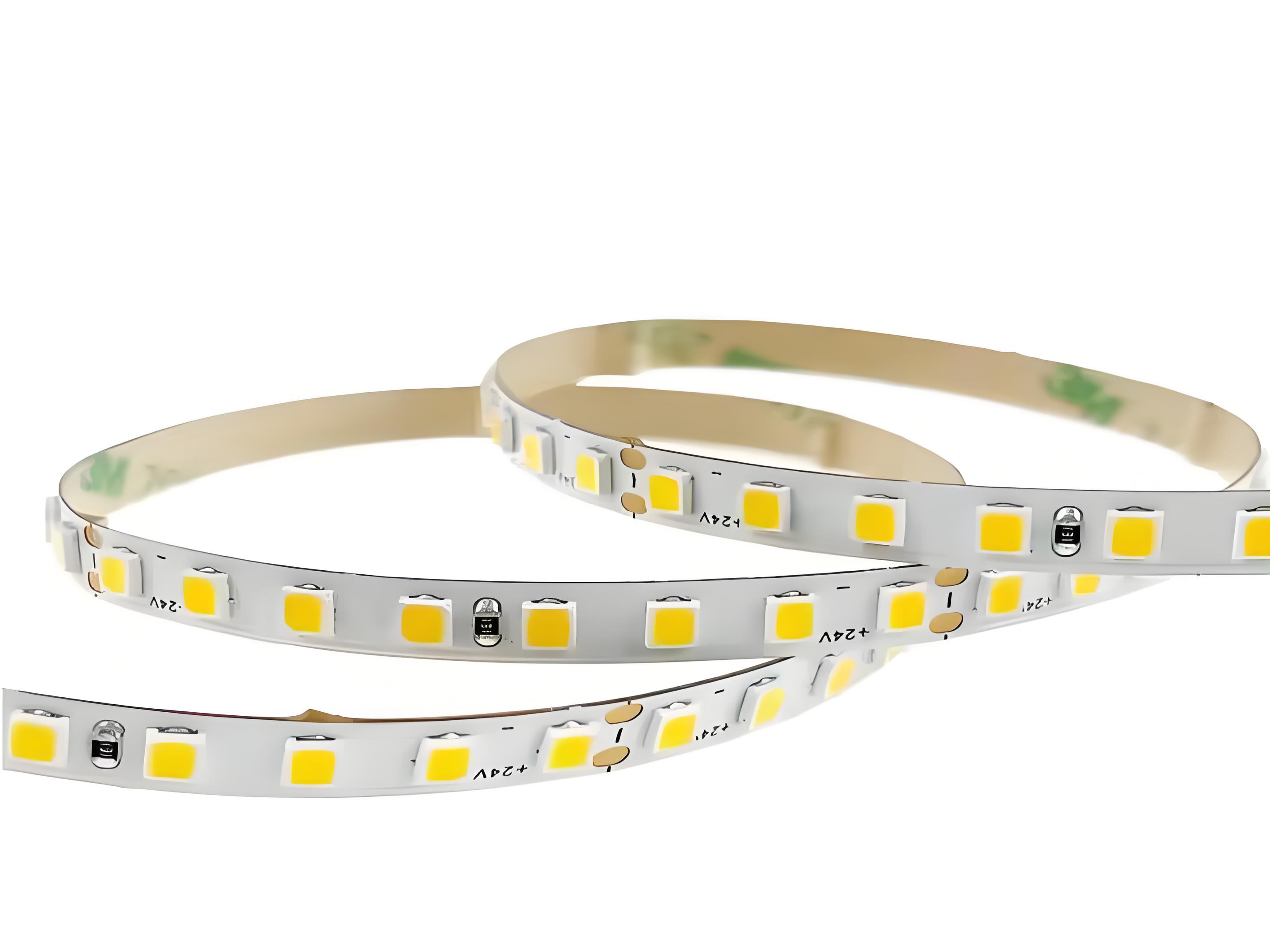

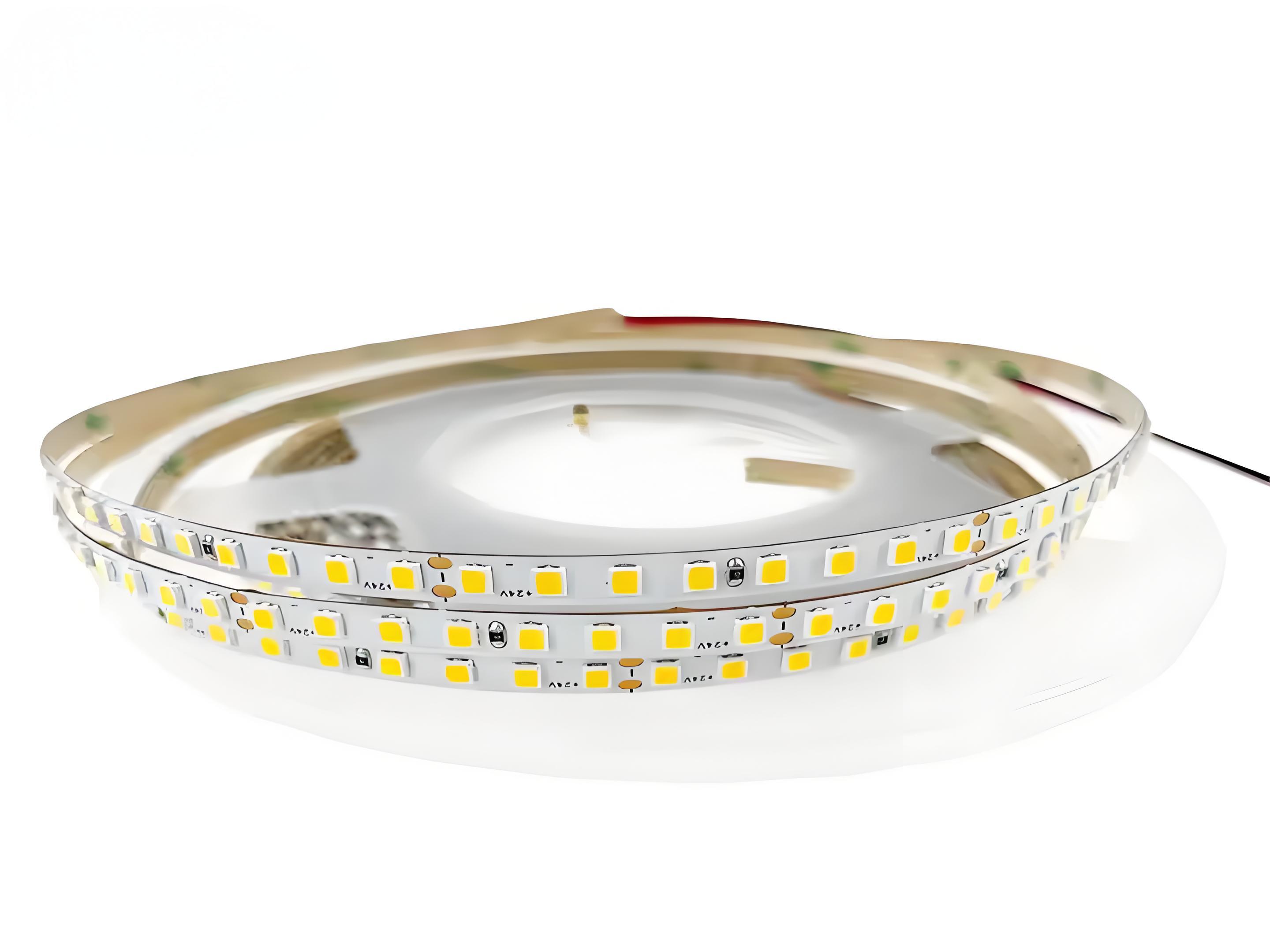

Features of 195lm/W 2835 led strip
1,Our flexible PCB are all high quality double layers PCB,at least 2 ounces,or 3 ounces in particular models.
2,Our SMD LEDs use copper base and gold wire which provide good heat dispersion,long life span and low luminous decay.
3,The pure copper wire with the perfect chip is in line with international standare.
4,Our tin without aluminum be offered certifications such as CE,RoHS,ETL and BIS etc.
5,We use import 3M double-adhesive tape.
| Item Name | 195lm/w 2835 led strip | LED Light Source | SMD2835 |
| LED Chip | Epistar/Sanan | LED Quantity | 160LEDs/m |
| Input Voltage(V) | DC24V | Power | 28.8W/m |
| CRI | 80/90/95 | Beam angle | 120° |
| IP Rating | IP20/65/IP67/IP68 | PCB Color | White/Black/Yellow |
| Working Temperature(℃) | -25 -45 | Brightness | 3120lm/m |
| Lifespan (hours) | 50000 | Cutting unit | 71.4mm |
| Lamp Body Material | Copper | Warranty(Year) | 3Years |
| Dimension | 5000mm*10mm | Available Color | 2700-6500K |
| Certificate | ETL,CE,RoHS,BIS etc. | OEM&ODM | Available |

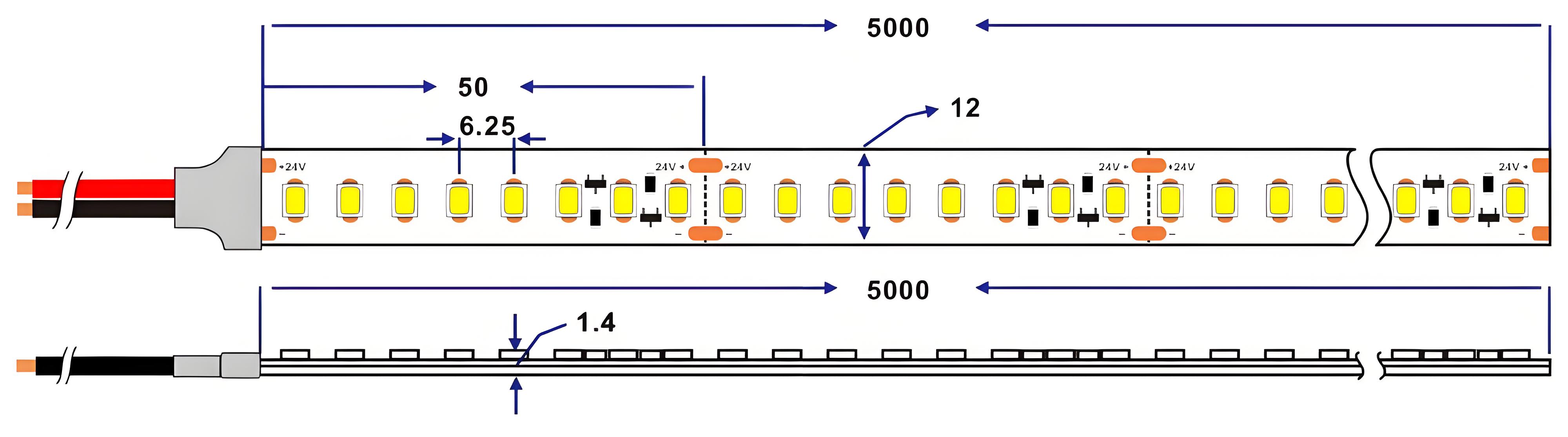

Dimension

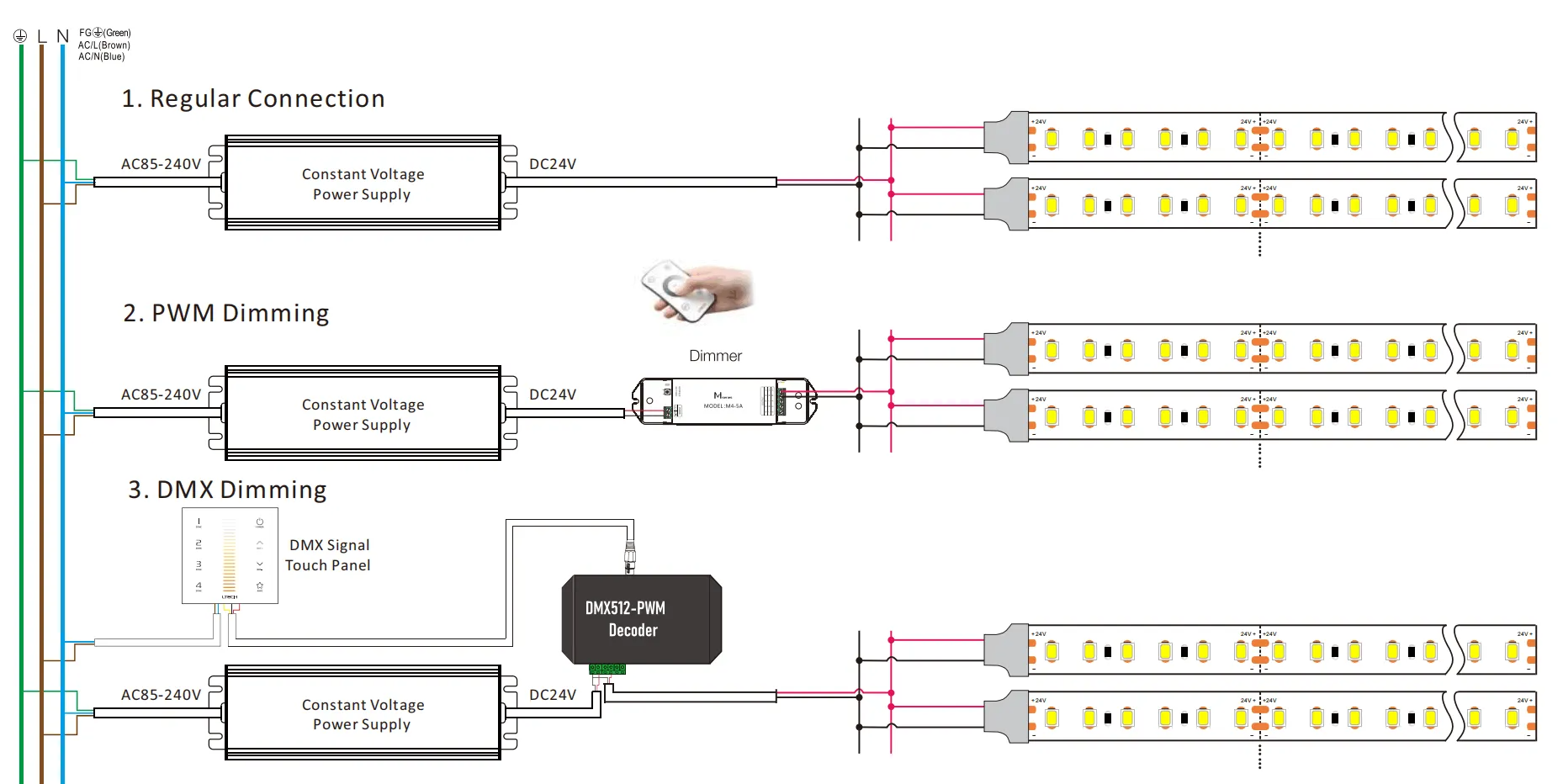

Connection
Application
