Shenzhen Risun Lighting CO., LTD

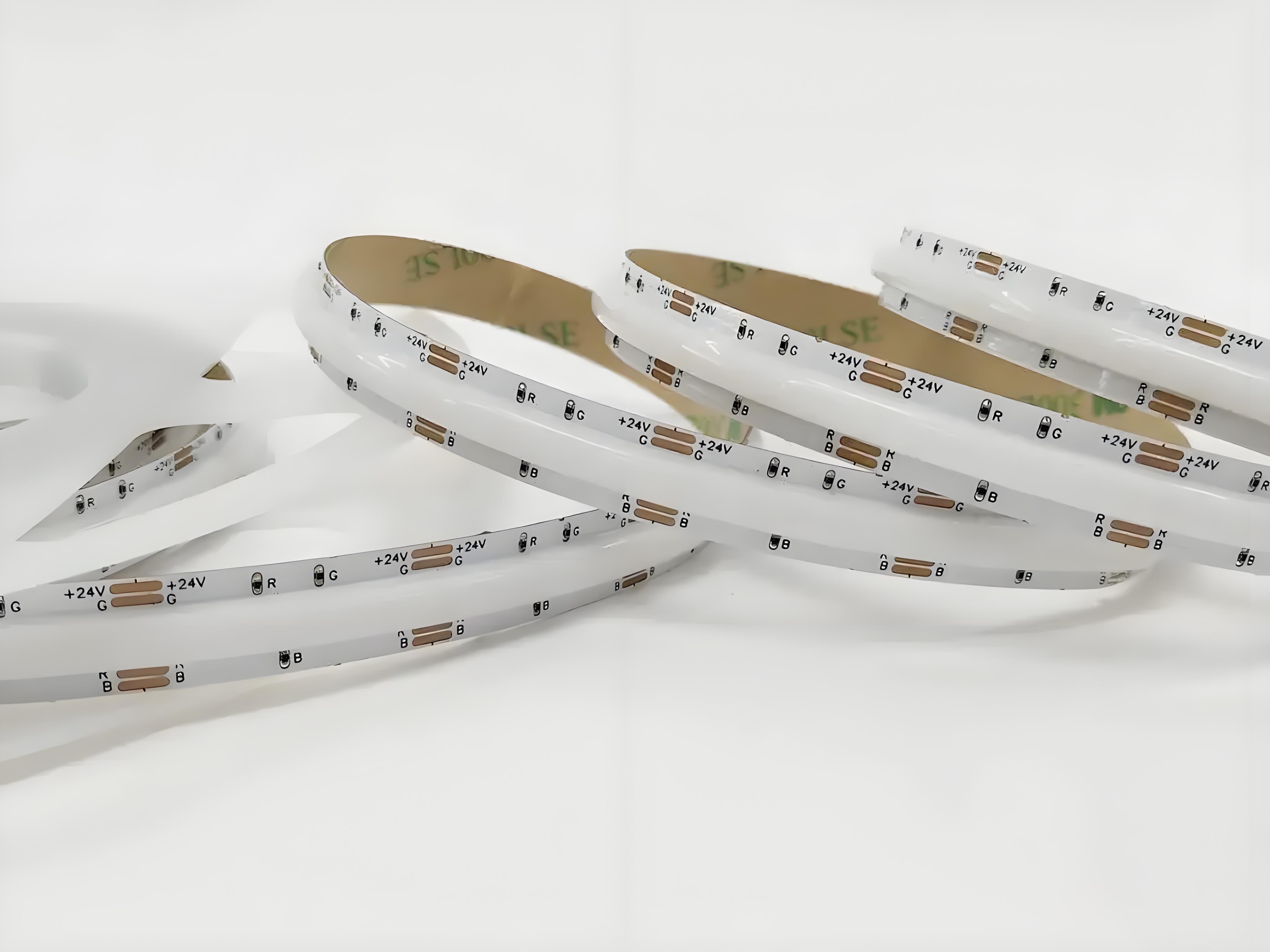

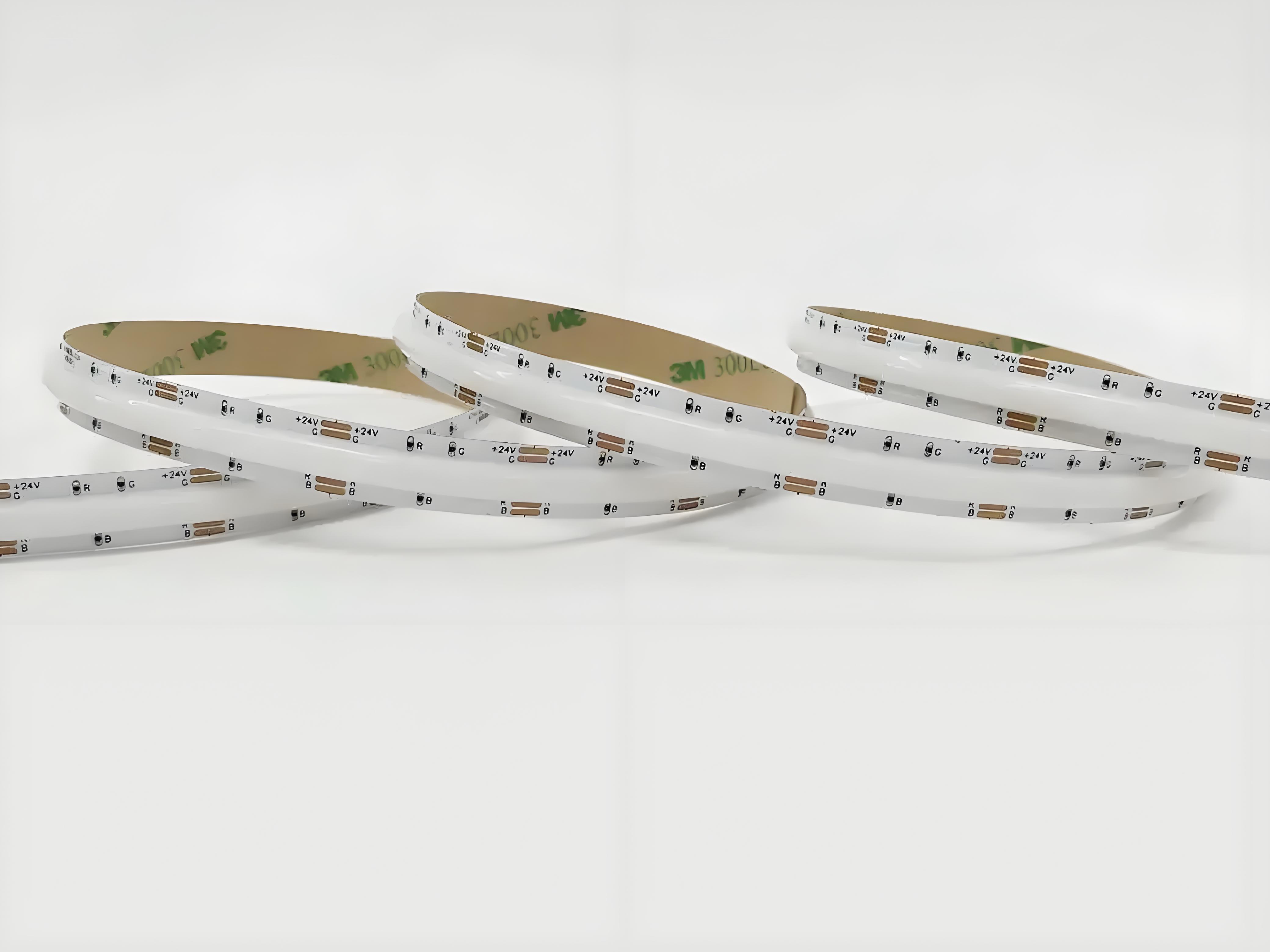

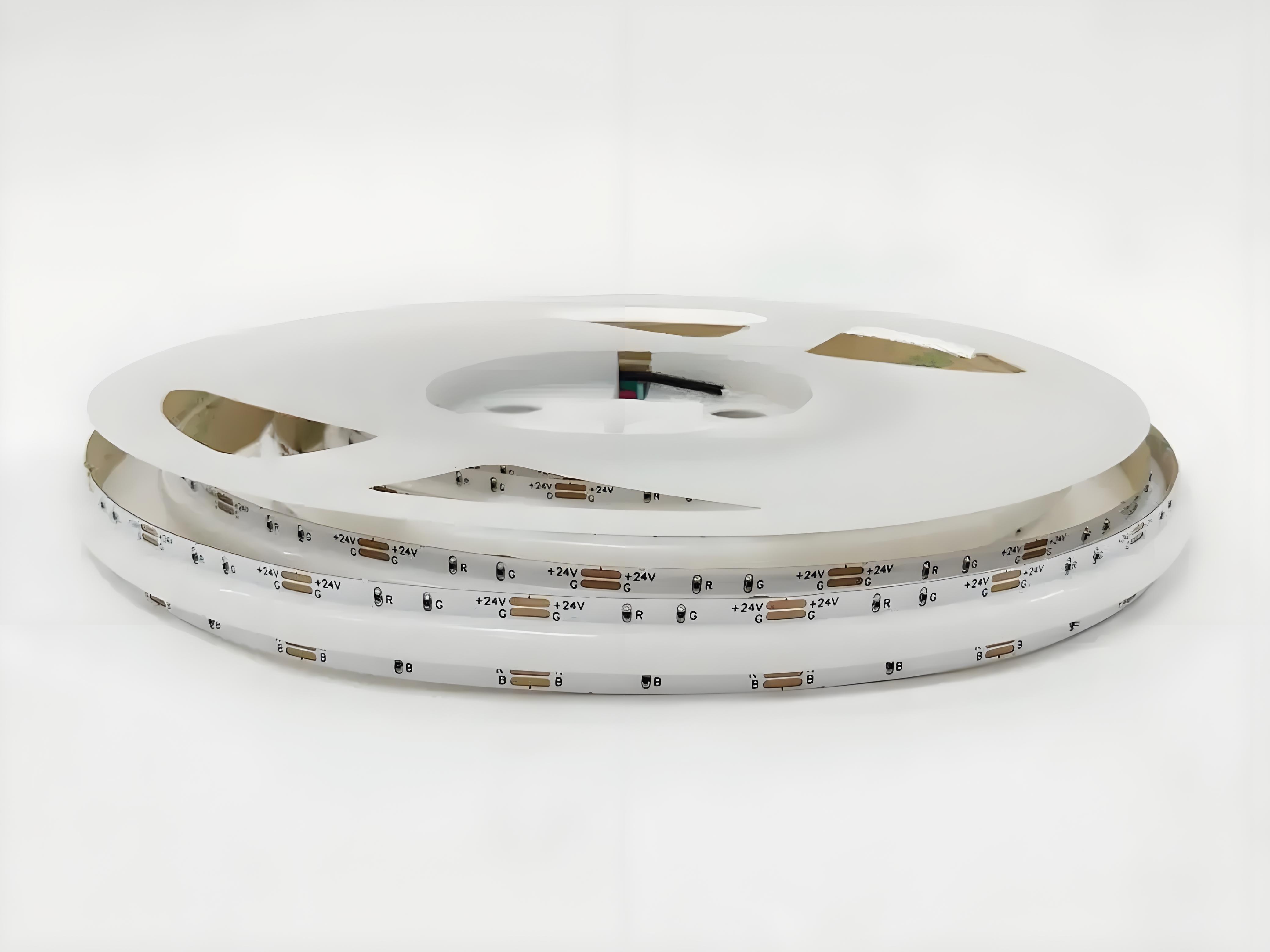

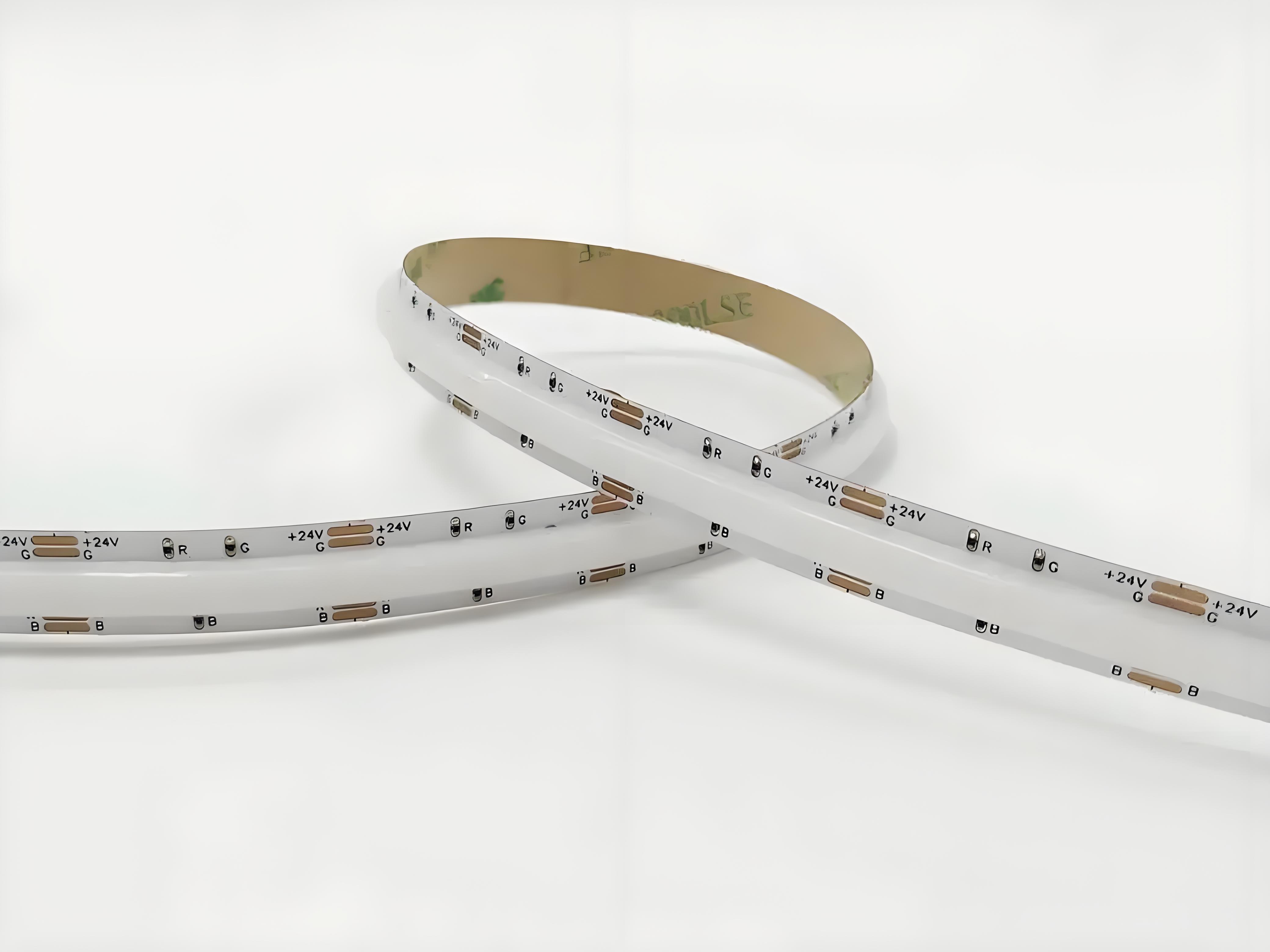

| Item Name | RGB COB led strip
| LED Light Source | COB |
| LED Chip | Epistar/Sanan | LED Quantity | 840LED/M(24V); 810LED/M(12V)
|
| Input Voltage(V) | DC24V | Power | 15W/m |
| CRI | 90 | Brightness | 450lm/m |
| IP Rating | IP20/IP67/IP68 | PCB Color | White |
| Working Temperature(℃) | -25 -45 | OEM&ODM | Available |
| Lifespan (hours) | 50000 | Cutting length | 2.5cm(24V); 1.1cm(12V)
|
| Lamp Body Material | Copper | Warranty(Year) | 3Years |
| Dimension
| 5000mm*10mm | Available Color | RGB |
COB（Chips on Board） means that the chip is directly packaged on the PCB.
Cob led strip is a series of led strip which encapsulates the chip on the flexible board, and then a layer of packaging glue mixed with phosphor powder is directly dropped on the surface of the chip.
The light emitted by the chip is refracted, reflected in the encapsulation colloid, and interacts with the phosphor powder. The colloid evenly emits light of different colors and color temperatures.

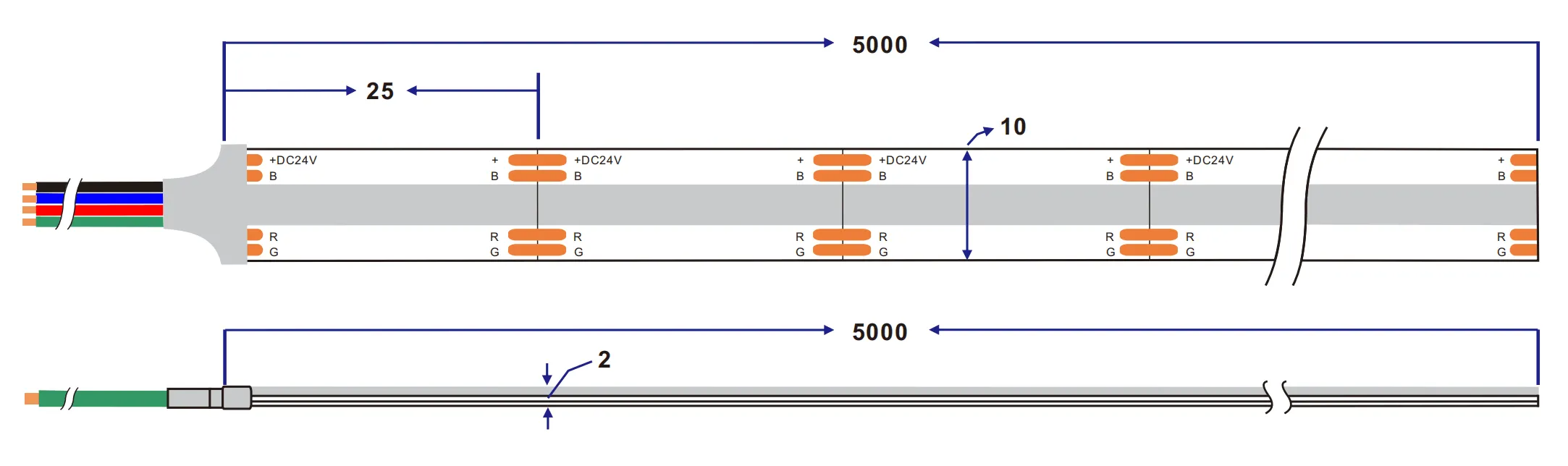

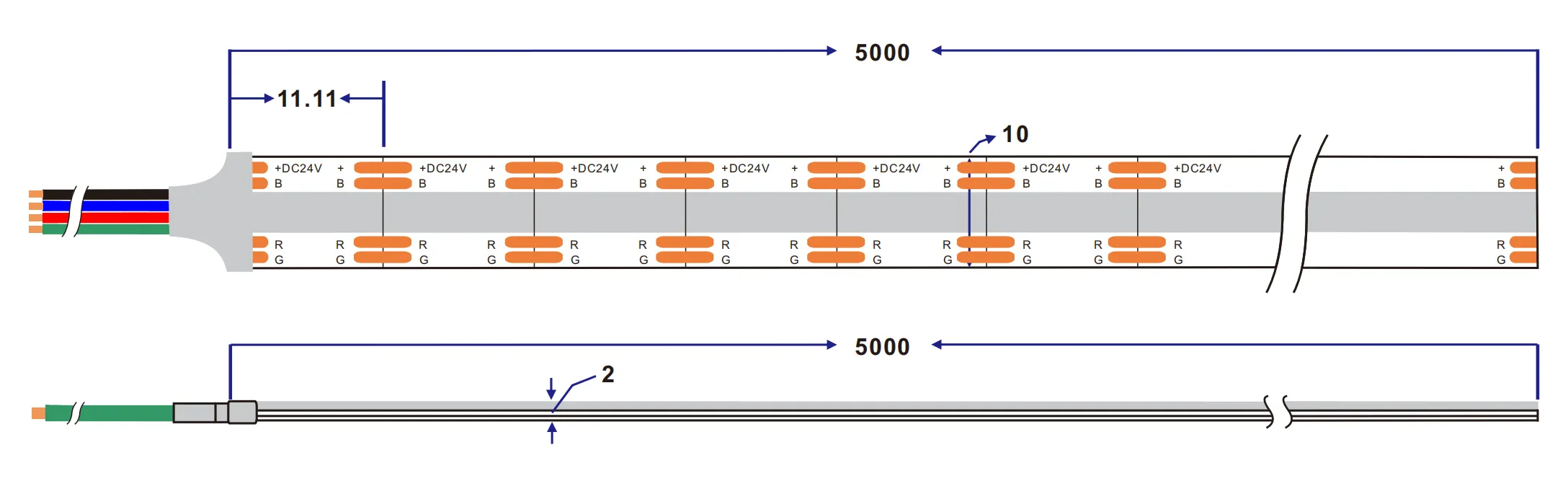

Dimension(mm)
840Chips/M DC24V Version:
810Chips/M DC12V Version:
Connection of DC12V/DC24V 840Chips/M RGB COB led strip

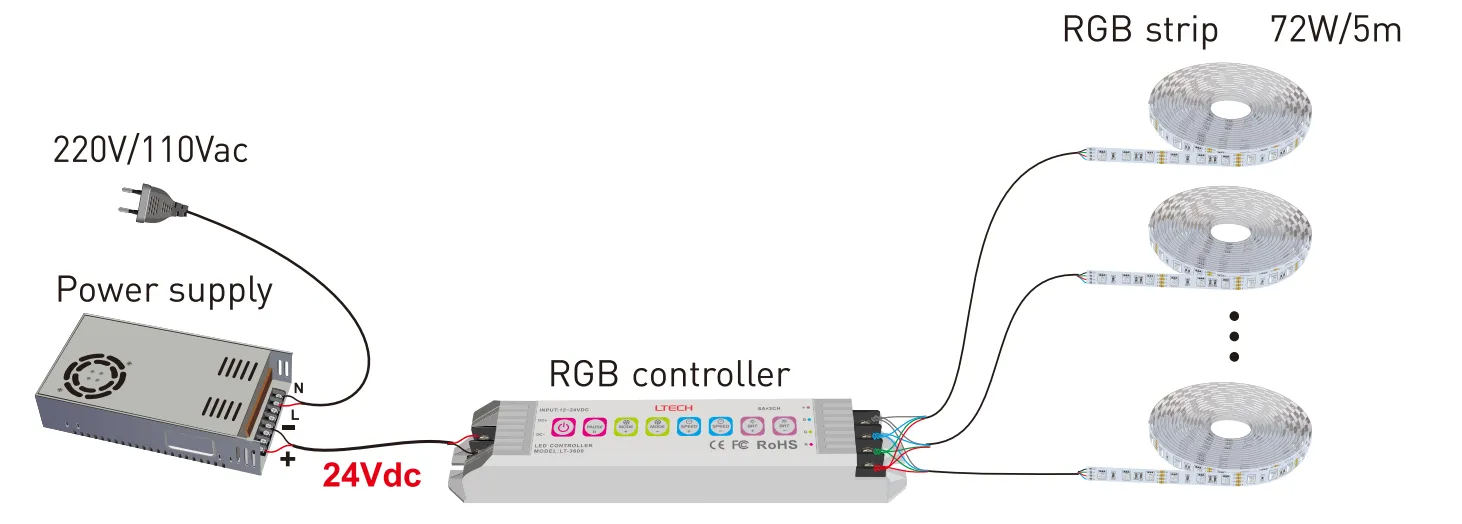

1） Standard Connection

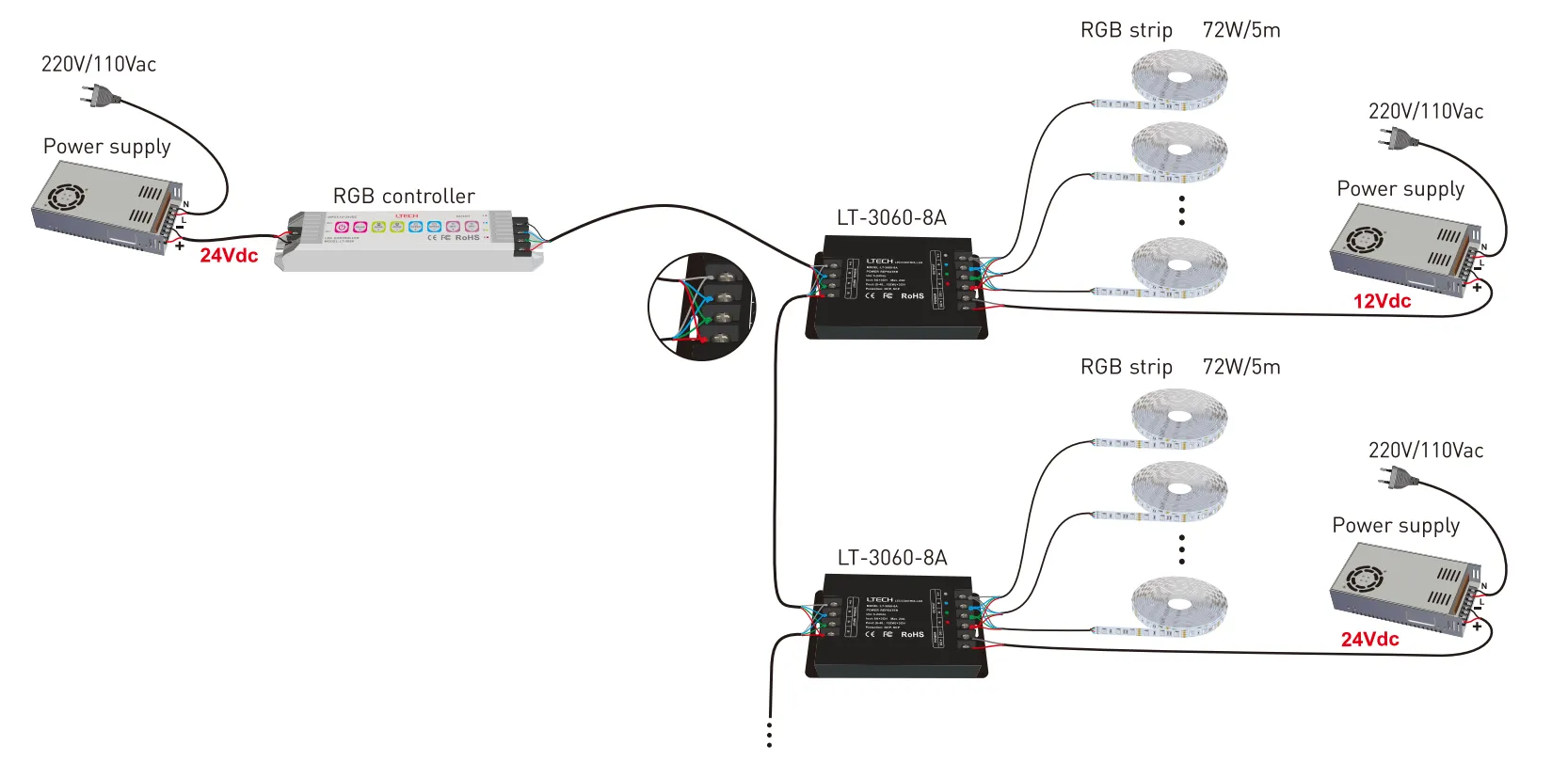

2）Long Connection

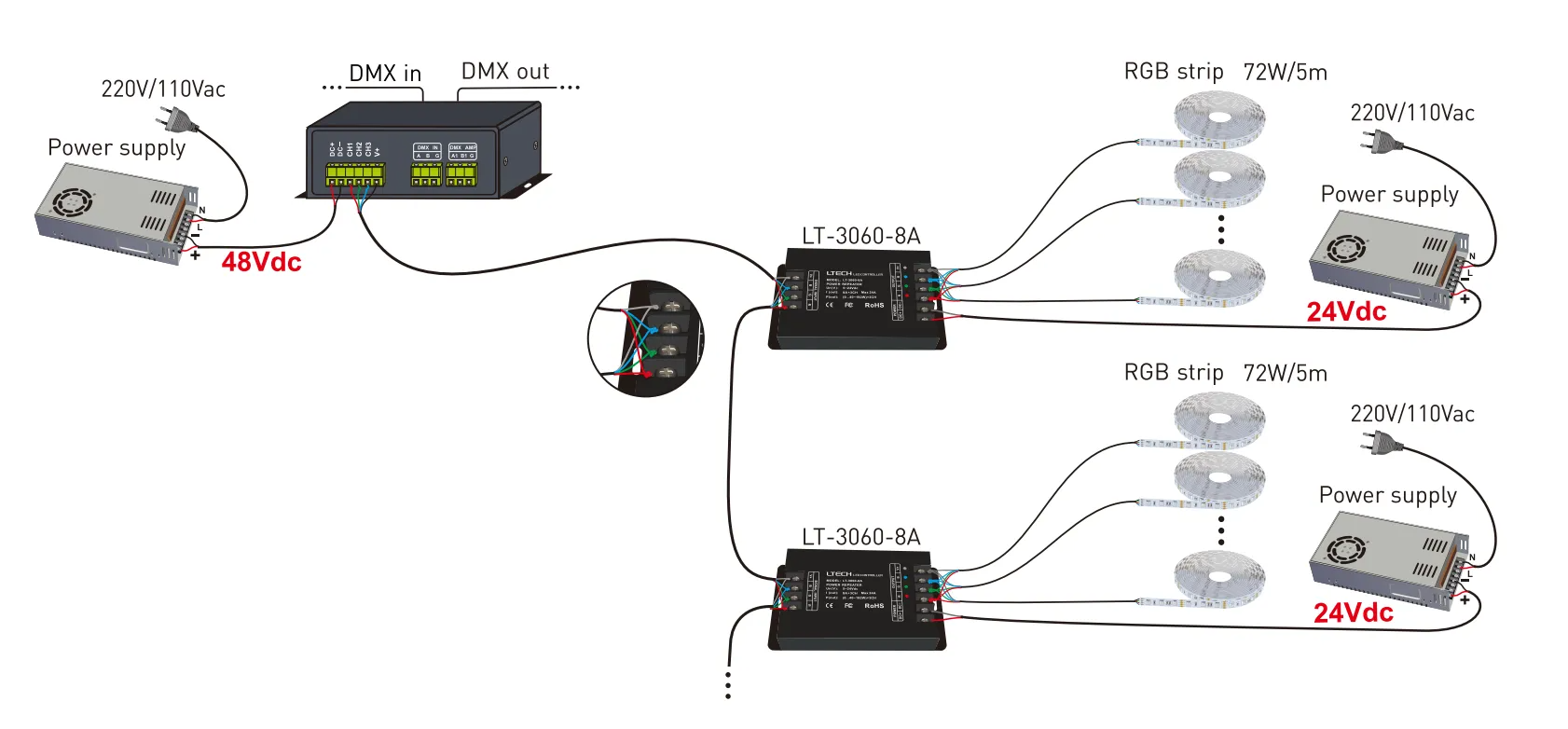

3）DMX Connection
Application of DC12V/DC24V 840Chips/M RGB COB led strip
