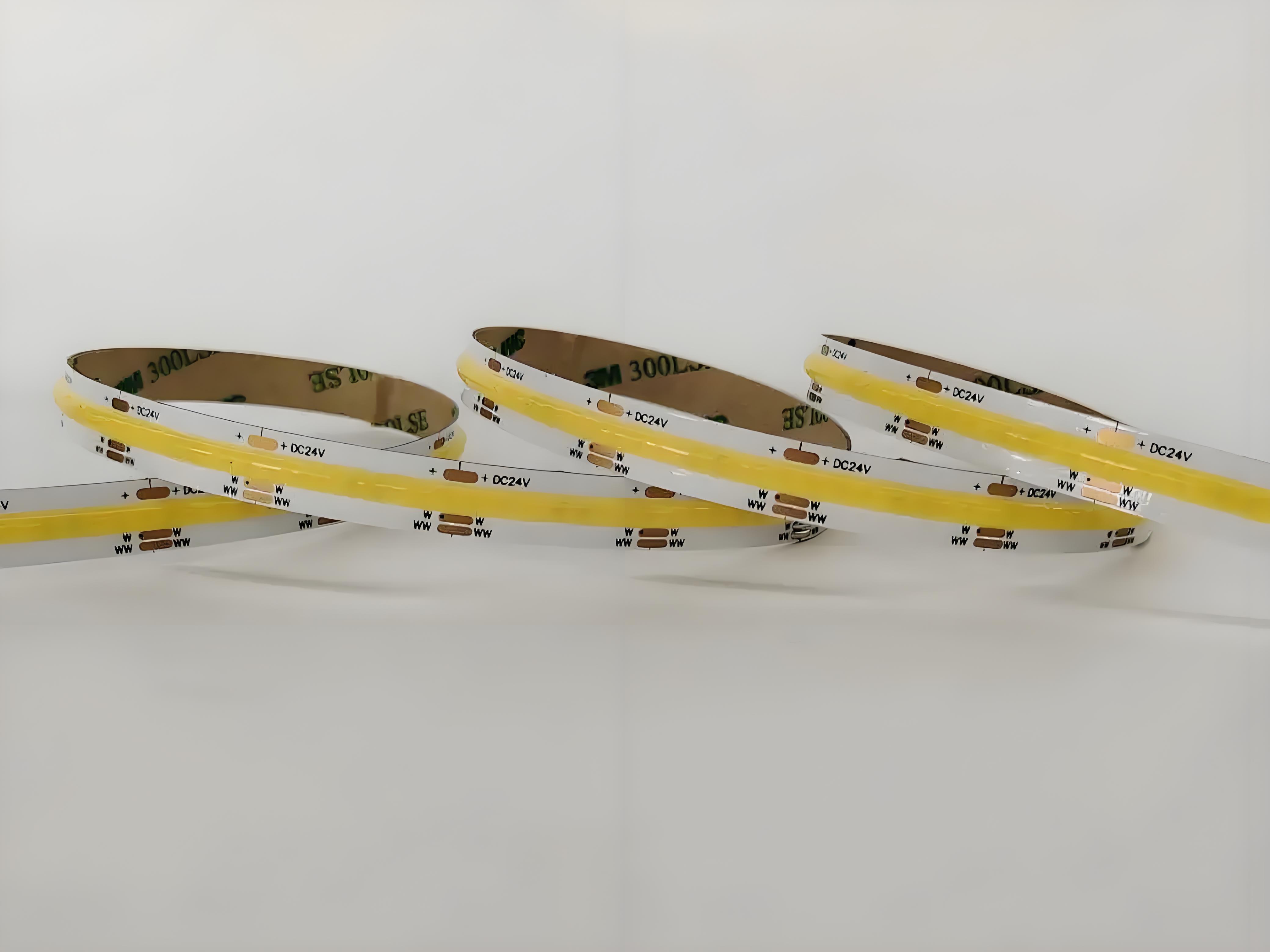

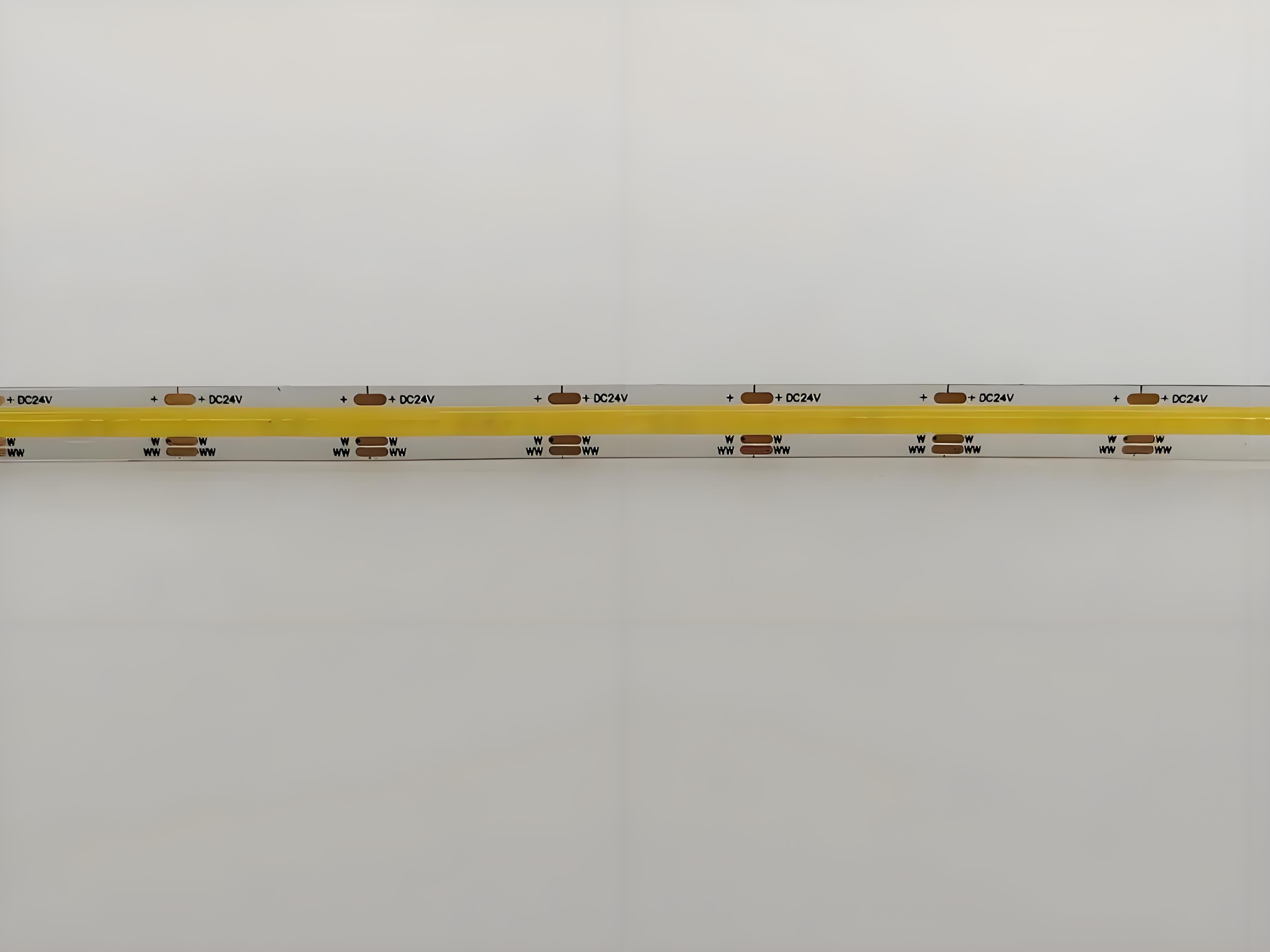

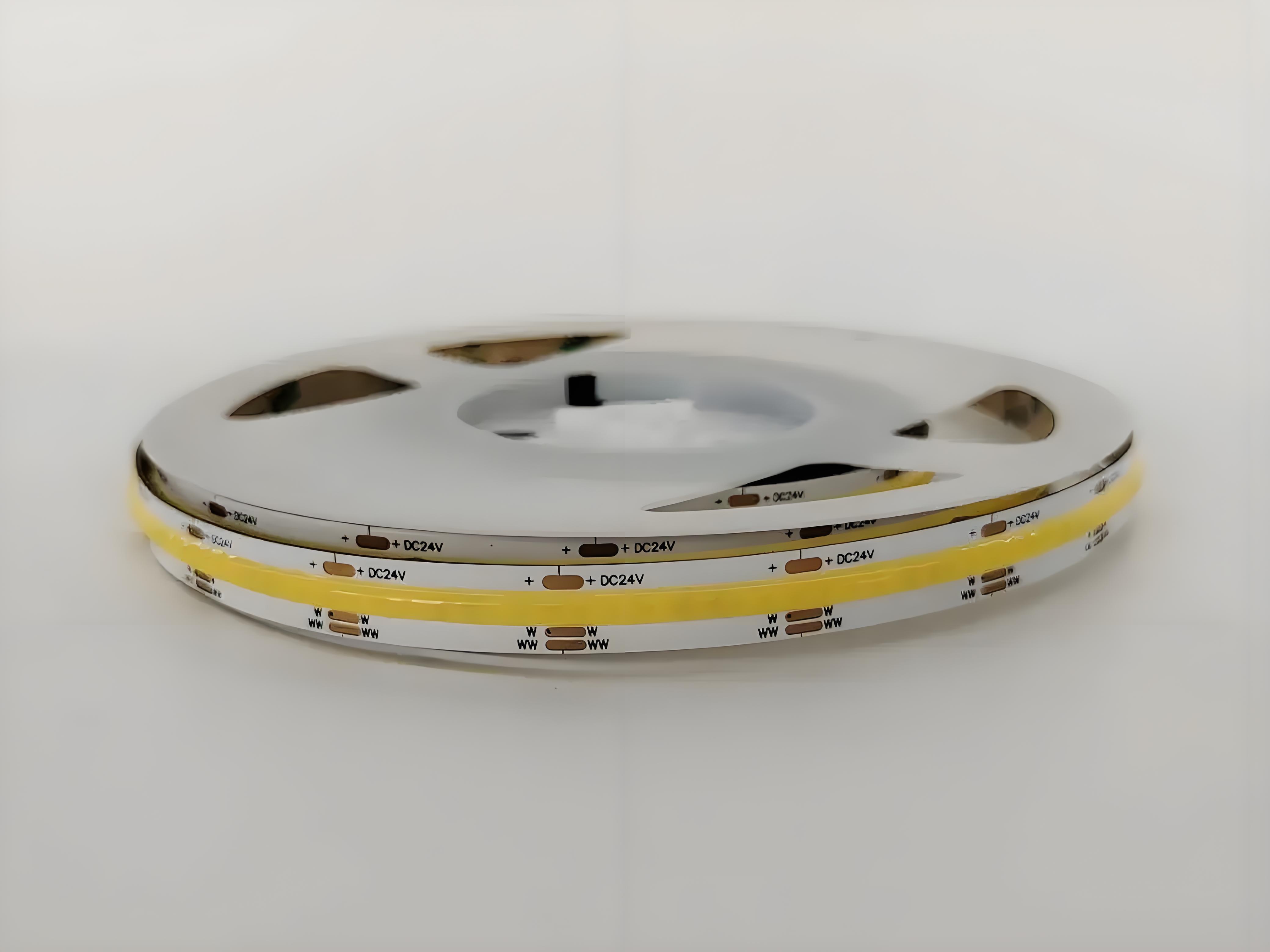

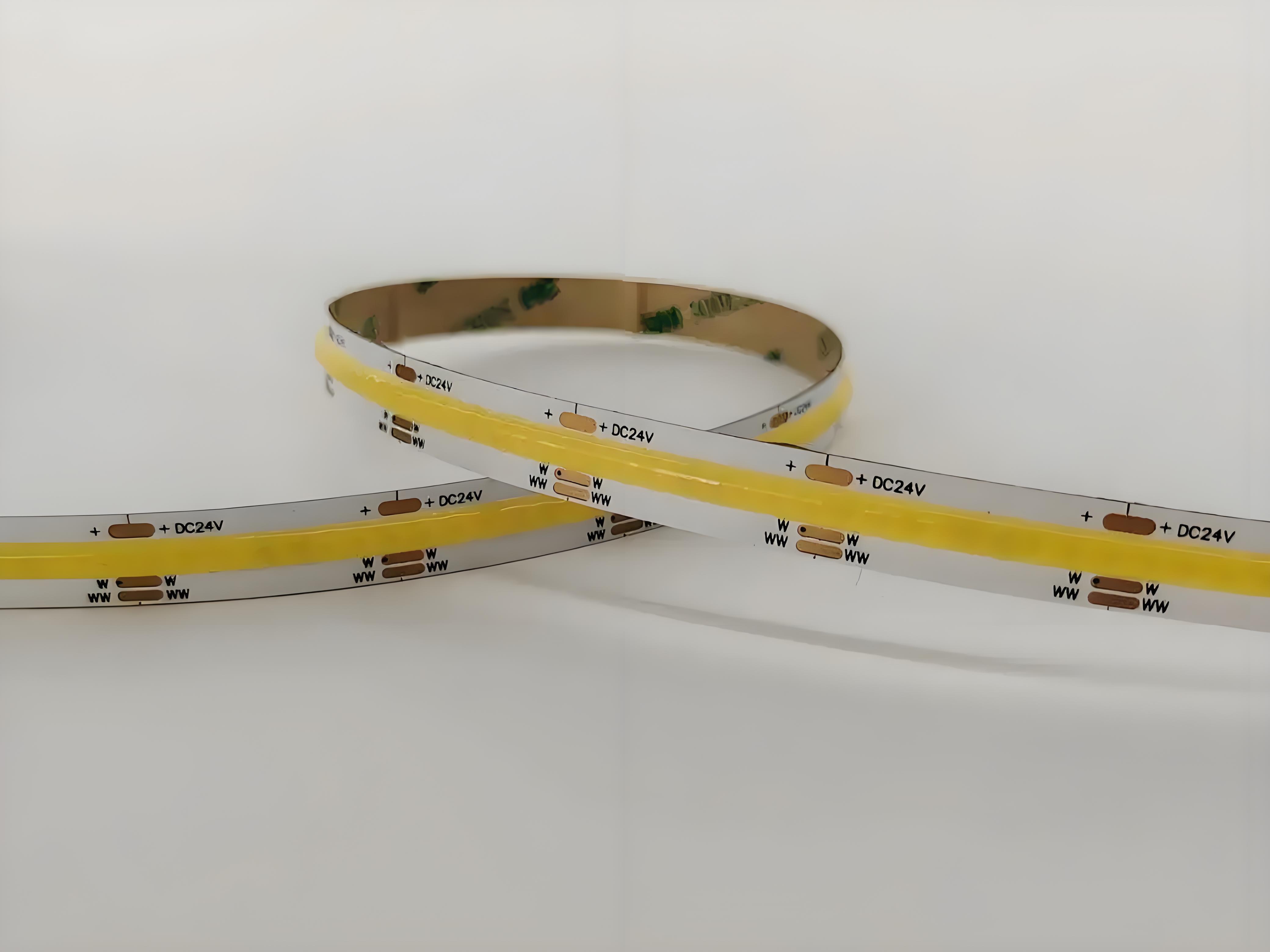

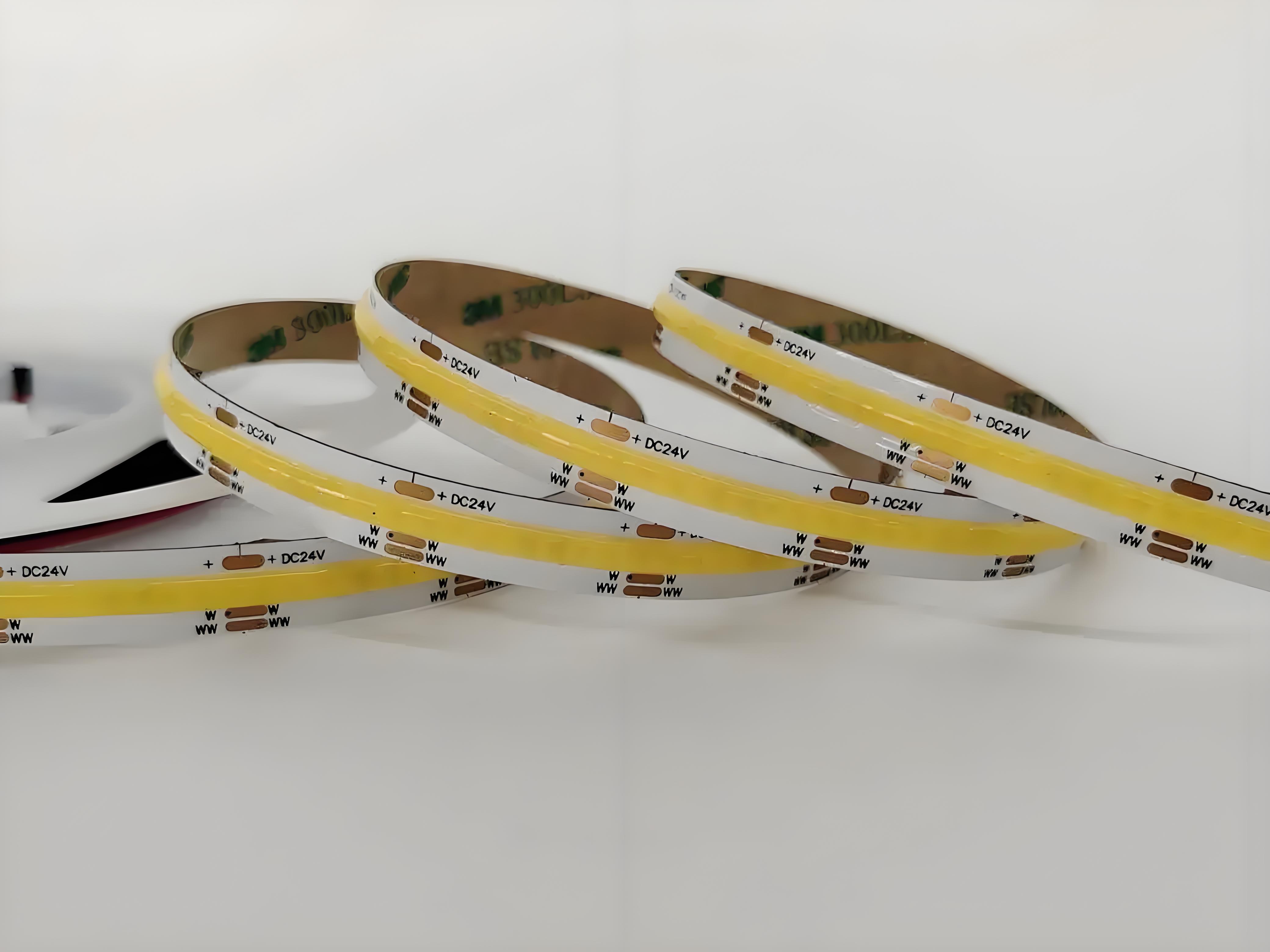

608Chips/M CCT Adjustable COB led strip

Product descriptions

Item Name	CCT Adjustable COB led strip	LED Light Source	COB
LED Chip	Epistar/Sanan	LED Quantity	608LEDs/m
Input Voltage(V)	DC24V	Power	22W/m
CRI	90	Brightness	2200lm/m
IP Rating	IP20/IP67/IP68	PCB Color	White
Working Temperature(℃)	-25 -45	OEM&ODM	Available
Lifespan (hours)	50000	Cutting length	2.63cm
Lamp Body Material	Copper	Warranty(Year)	3Years
Dimension	5000mm*10mm	Available Color	2700-6500K

COB（Chips on Board） means that the chip is directly packaged on the PCB.

Cob led strip is a series of led strip which encapsulates the chip on the flexible board, and then a layer of packaging glue mixed with phosphor powder is directly dropped on the surface of the chip.

The light emitted by the chip is refracted, reflected in the encapsulation colloid, and interacts with the phosphor powder. The colloid evenly emits light of different colors and color temperatures.

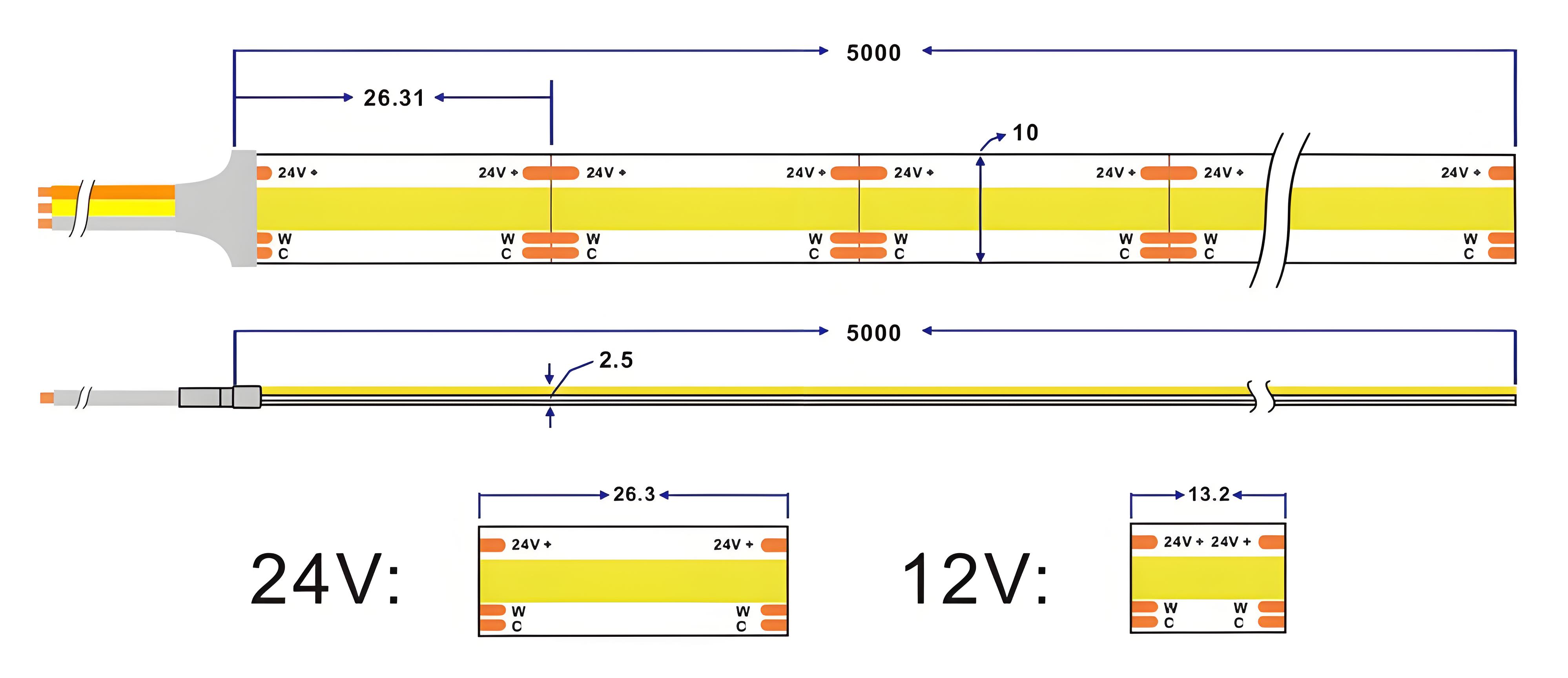

Dimension(mm)
