Shenzhen Risun Lighting CO., LTD

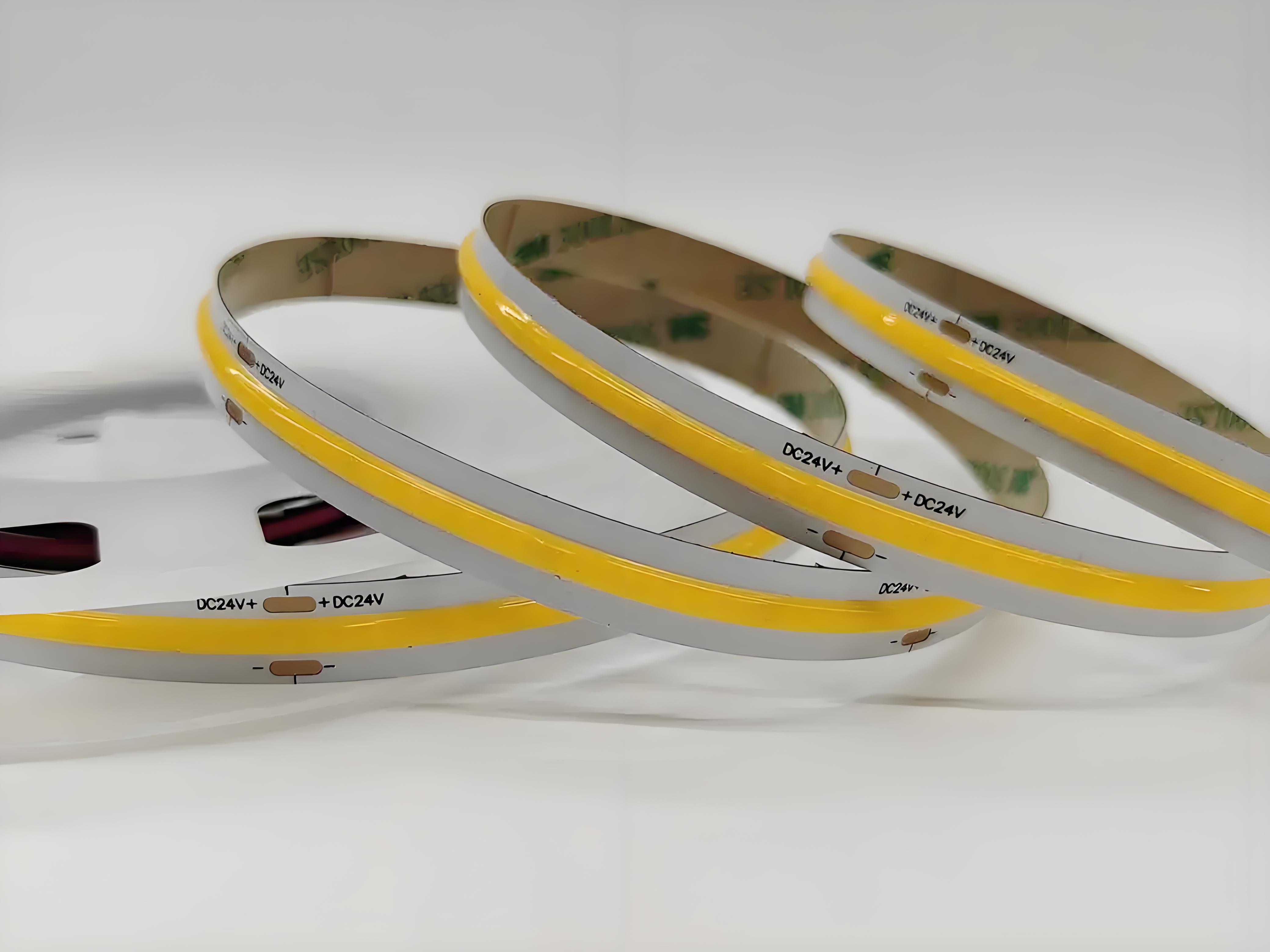

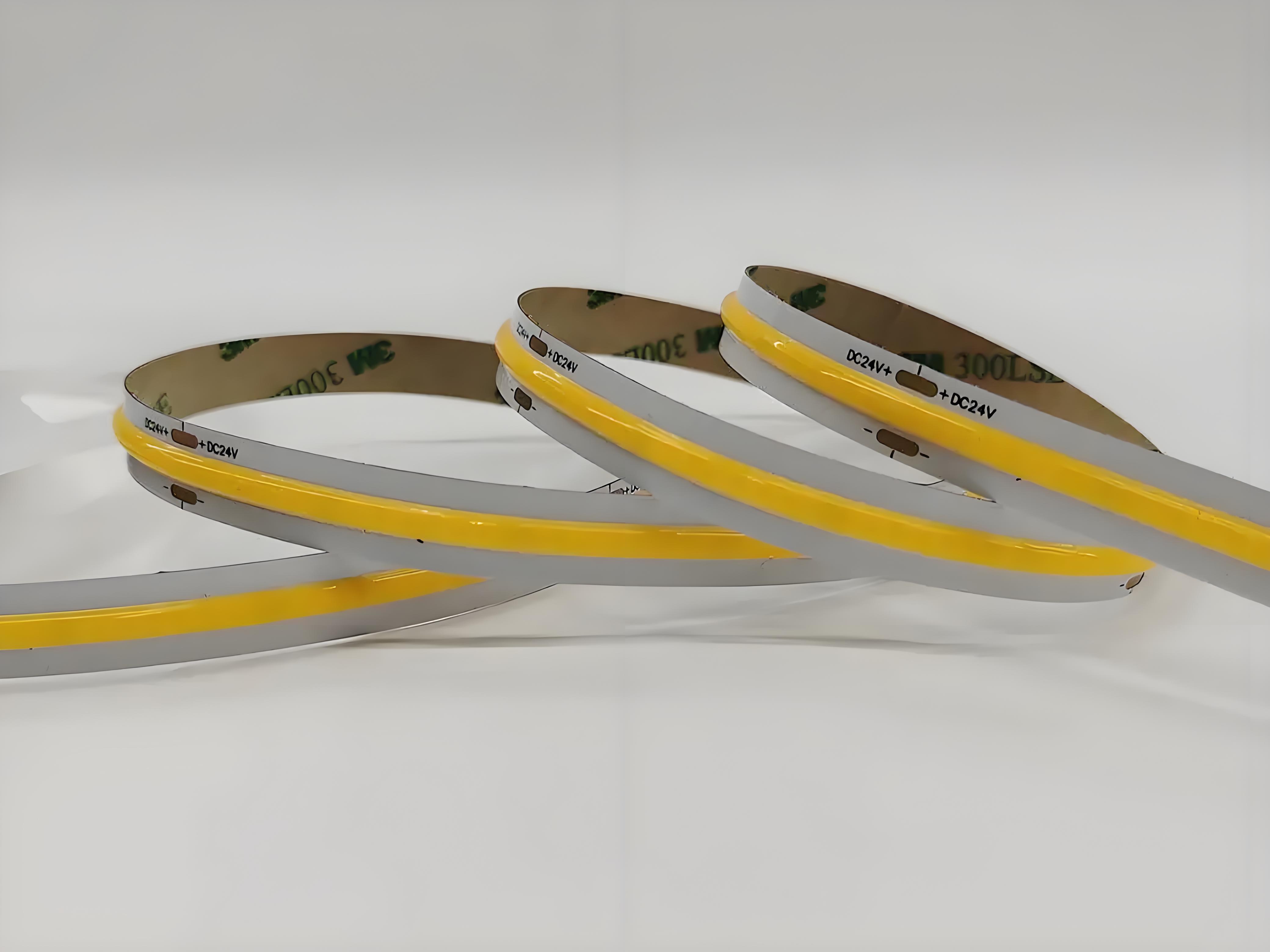

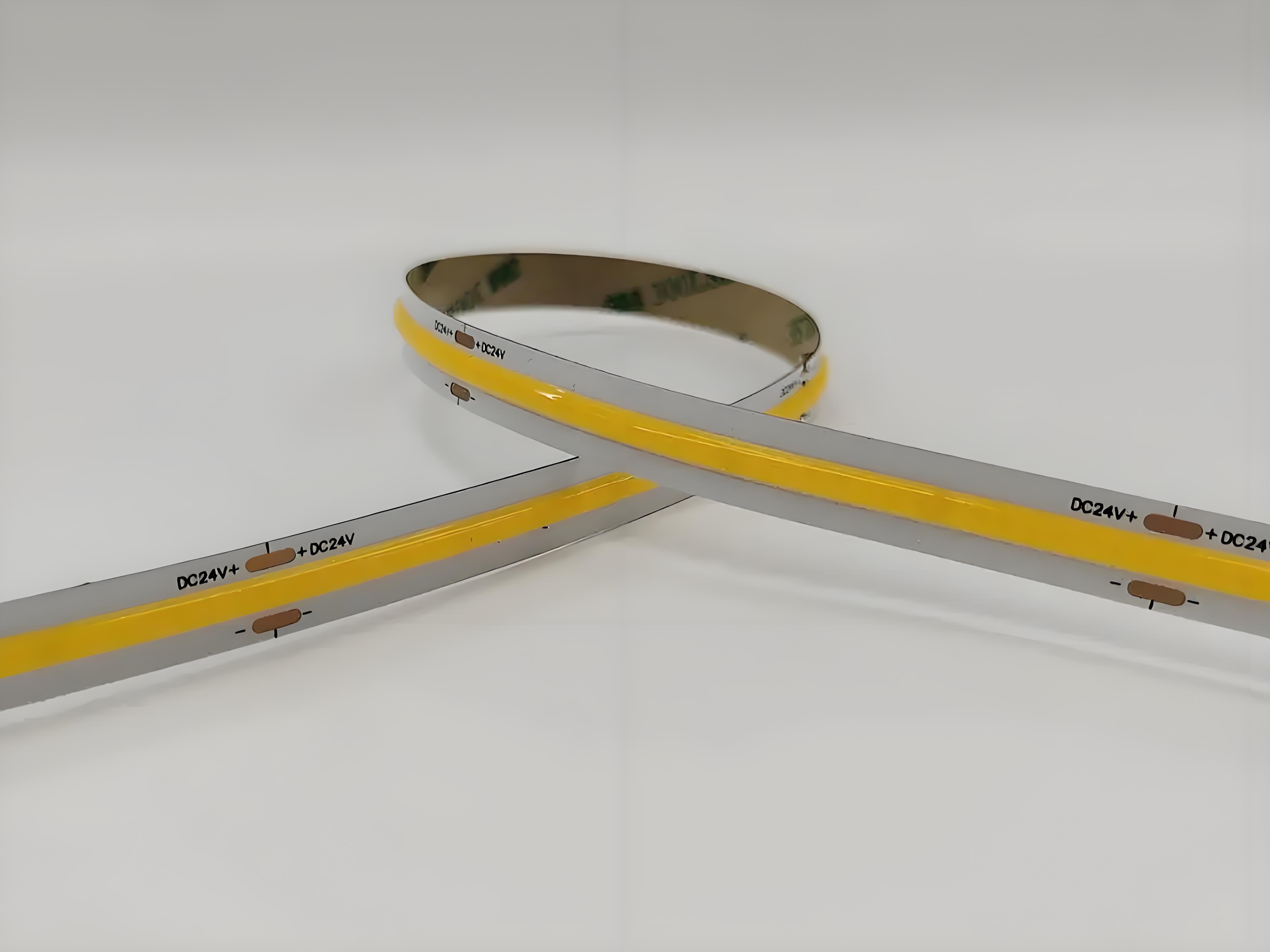

| Item Name | White COB led strip
| LED Light Source | COB |
| LED Chip | Epistar/Sanan | LED Quantity | 320LEDs/m |
| Input Voltage(V) | DC12V/DC24V | Power | 9lm/m |
| CRI | 90 | Brightness | 900lm/m |
| IP Rating | IP20 | PCB Color | White |
| Working Temperature(℃) | -25 -45 | OEM&ODM | Available |
| Lifespan (hours) | 50000 | Beam angle | 180° |
| Lamp Body Material | Copper | Warranty(Year) | 3Years |
| Dimension
| 5000mm*8mm | Available Color | 2700-6000K |
COB（Chips on Board） means that the chip is directly packaged on the PCB.
Cob led strip is a series of led strip which encapsulates the chip on the flexible board, and then a layer of packaging glue mixed with phosphor powder is directly dropped on the surface of the chip.
The light emitted by the chip is refracted, reflected in the encapsulation colloid, and interacts with the phosphor powder. The colloid evenly emits light of different colors and color temperatures.
Dimension(mm)

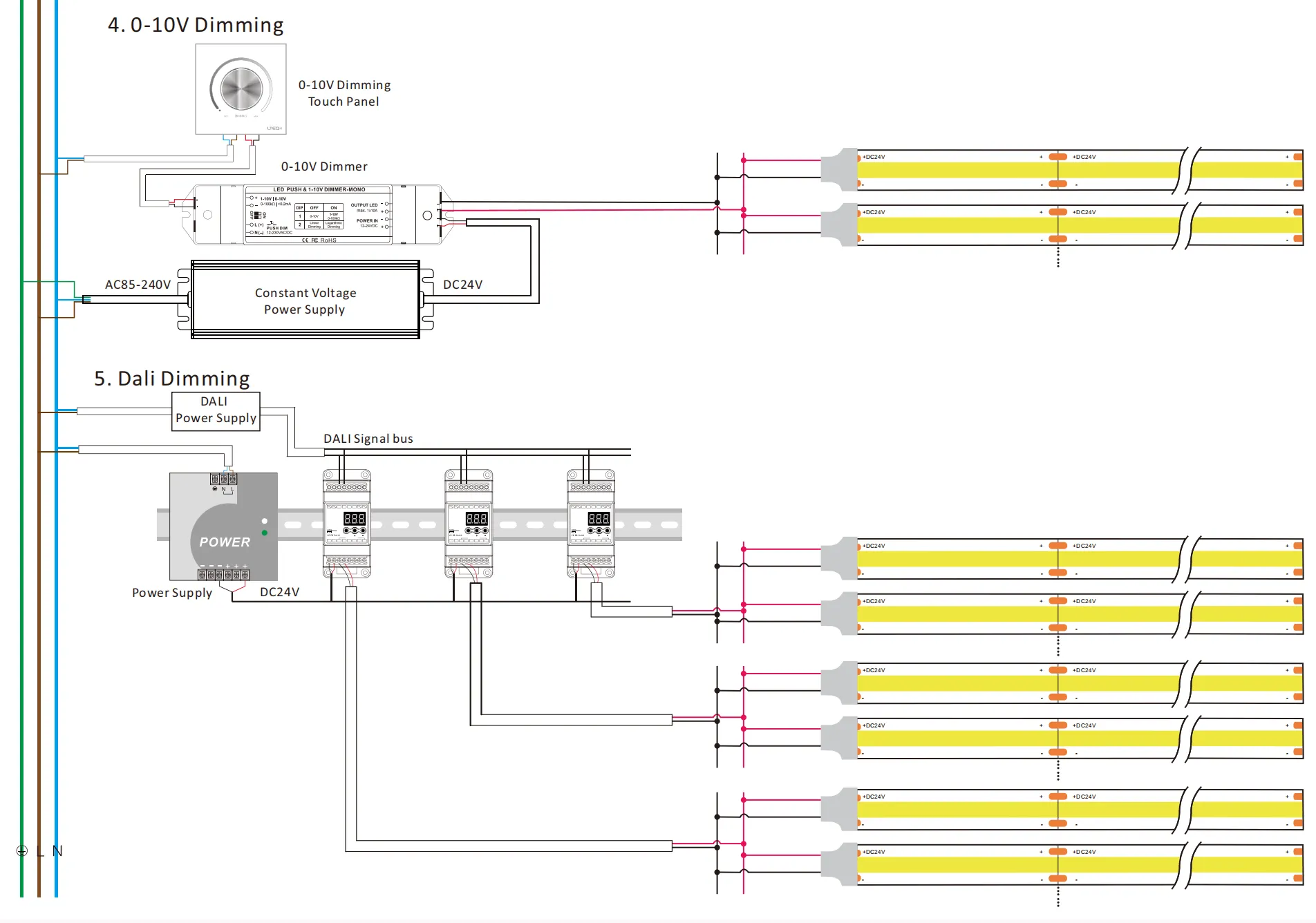

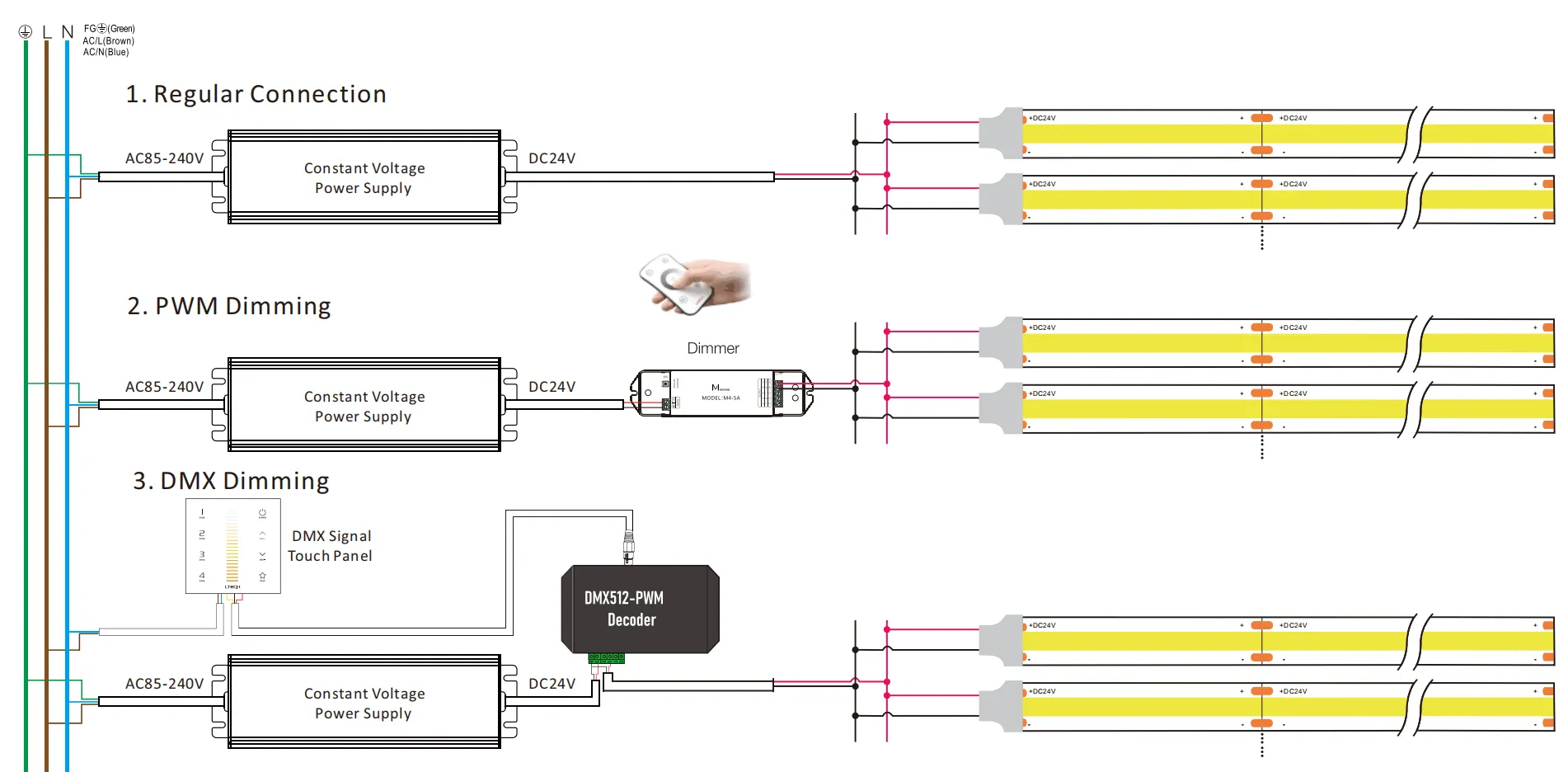

Installation of 8mm 320Chips/M White COB led strip

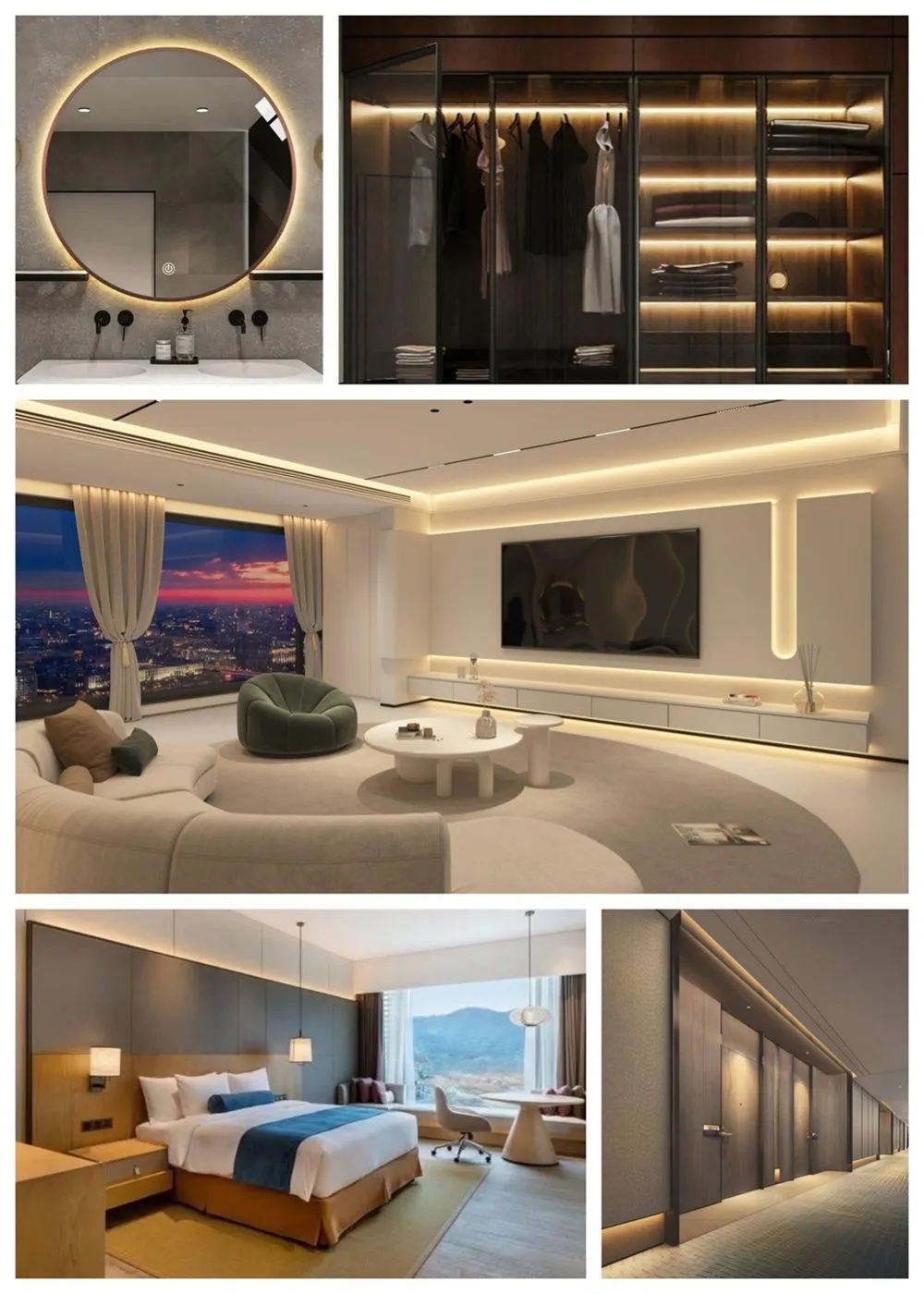

Application of 8mm 320Chips/M White COB led strip
